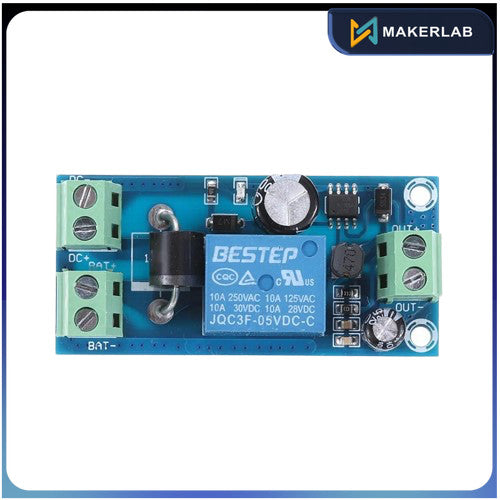

YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 5V-48V

Product Description
It is an automatic switching module. When the battery is dead or there is a problem with the battery, it is powered by the power supply. When there is input power at the power adapter, the battery can be charged.

Features:

• Product load: 10A
• Product size: 61mm*29mm
• Automatically identify the voltage
• Automatically switch power
• Battery discharge protection

Specification:

• Product Name: Automatic Switching Module
• Model: YX850
• Input Voltage: DC5V~48V
• Load Current:10A(MAX)
• Work Temperature:-25?~85?
• Work Humidity:5%~95%RH
• Size:61.5*30*19mm

Note:
When the DC terminal has input voltage,it is connected to the battery to charge the battery.
When the DC terminal has input voltage,it will supply power to the load.
When the DC terminal is not input voltage,the product will automatically switch to the load powered by a battery.
The product will lose power for 0.7 seconds when switching power supply equipment.
The DC, power and load voltages should be the same.
Package Includes:

• 1 x YX850 Power Failure Automatic Switching Standby Battery Module 5V-48V
