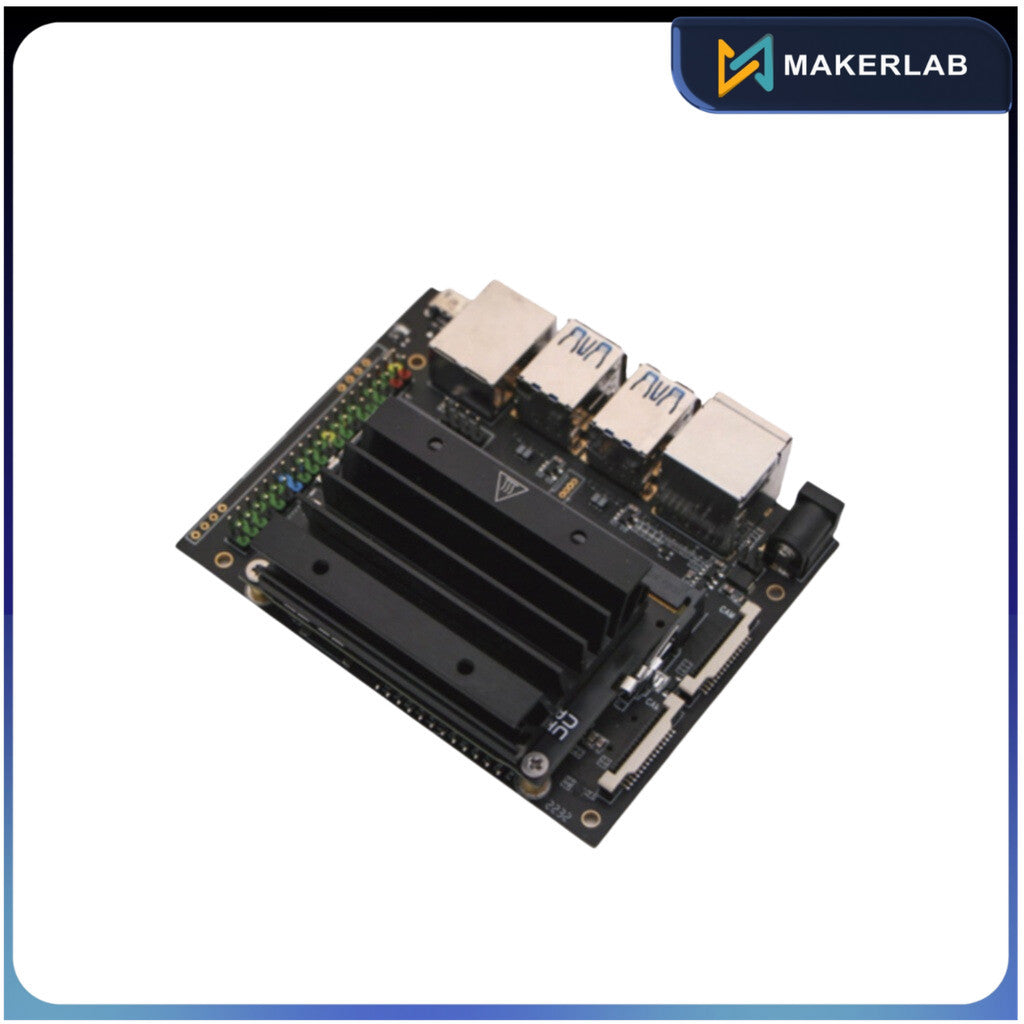

Okdo NVIDIA Jetson Nano C100 Developer Kit Module

Description

The OKdo Nano C100 Developer Kit powered by NVIDIA® Jetson Nano Module delivers the compute performance to run modern AI workloads at unprecedented size, power, and cost. Developers, learners, and makers can now run AI frameworks and models for applications such as image classification, object detection, segmentation, and speech processing.

Details

The OKdo Nano C100 Developer Kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. It’s incredibly power-efficient, consuming as little as 5 watts.

This Nano C100 is also supported by NVIDIA® JetPack, which includes a board support package (BSP), Linux OS, NVIDIA® CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started.

The same JetPack SDK is used across the entire NVIDIA® Jetson family of products and is fully compatible with NVIDIA®’s world-leading AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.

Key Features of the OKdo Nano C100 Developer Kit Jetson Nano Module

• 128-core NVIDIA® Maxwell GPU
• Quad-core ARM A57 CPU
• 4 GB 64-bit LPDDR4
• 10/100/1000BASE-T Ethernet
• Power Options
• Micro-USB 5V 2A
• DC power adapter 5V 4A
• Extensive I/Os
• USB 3.0 Type A
• USB 2.0 Micro-B
• HDMI/DisplayPort
• M.2 Key E
• Gigabit Ethernet
• GPIOs,I2C, I2S, SPI, UART
• 2x MIPI-CSI camera connector
• Micro SD card
• Fan connector
• What’s included in the OKdo Nano C100 Developer Kit?
• NVIDIA® Jetson Nano module
• Radxa Nano C100 carrier board
• Quick Start Guide and Support Guide
• Technical Specifications
• GPU 128-core Maxwell
• CPU Quad-core ARM A57 @ 1.43 GHz
• Memory 4 GB 64-bit LPDDR4 25.6 GB/s
• Storage 16GB eMMC and microSD (not included)
• Video Encoder 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
• Video Decoder 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30| (H.264/H.265)
• Camera 2x MIPI CSI-2 DPHY lanes
• Connectivity Gigabit Ethernet, M.2 Key E
• Display HDMI 2.0 and eDP 1.4
• USB 4x USB 3.0, USB 2.0 Micro-B
• Others GPIO, IC2, I 2 S, SPI, UART
• Dimensions 100 mm x 80 mm x 29 m
