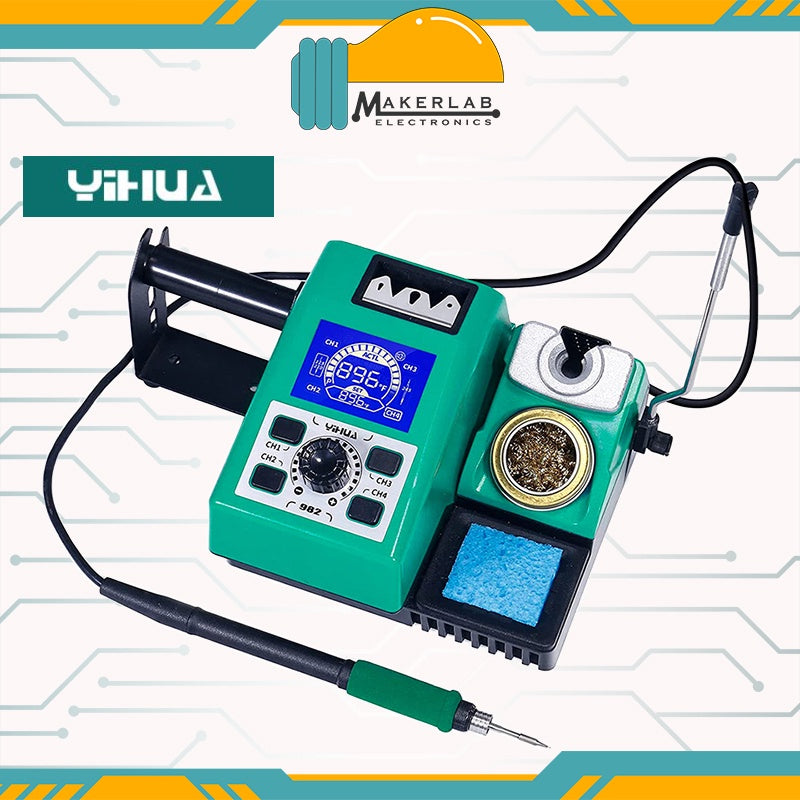

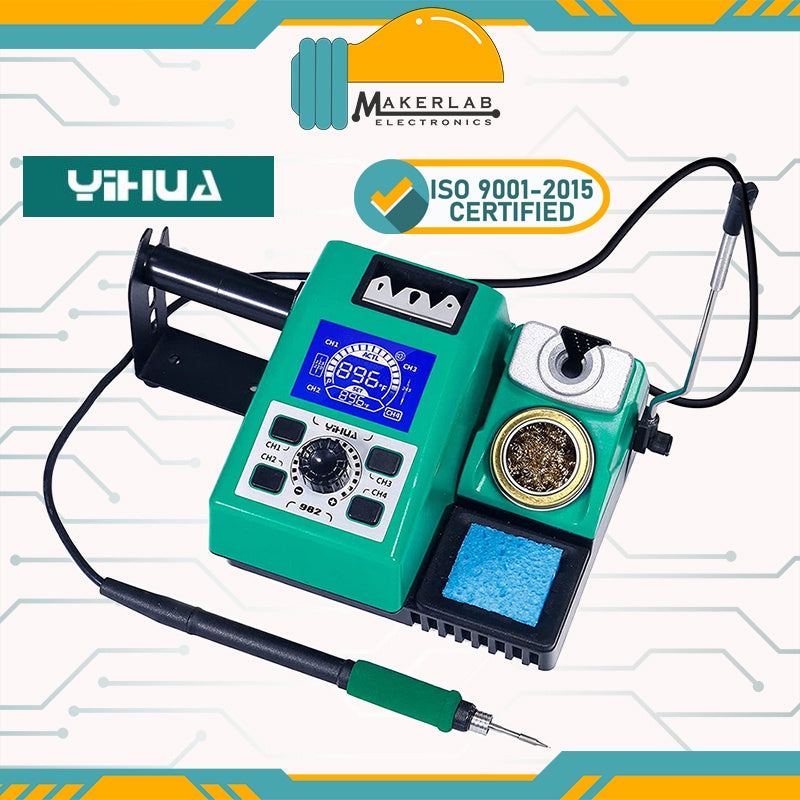

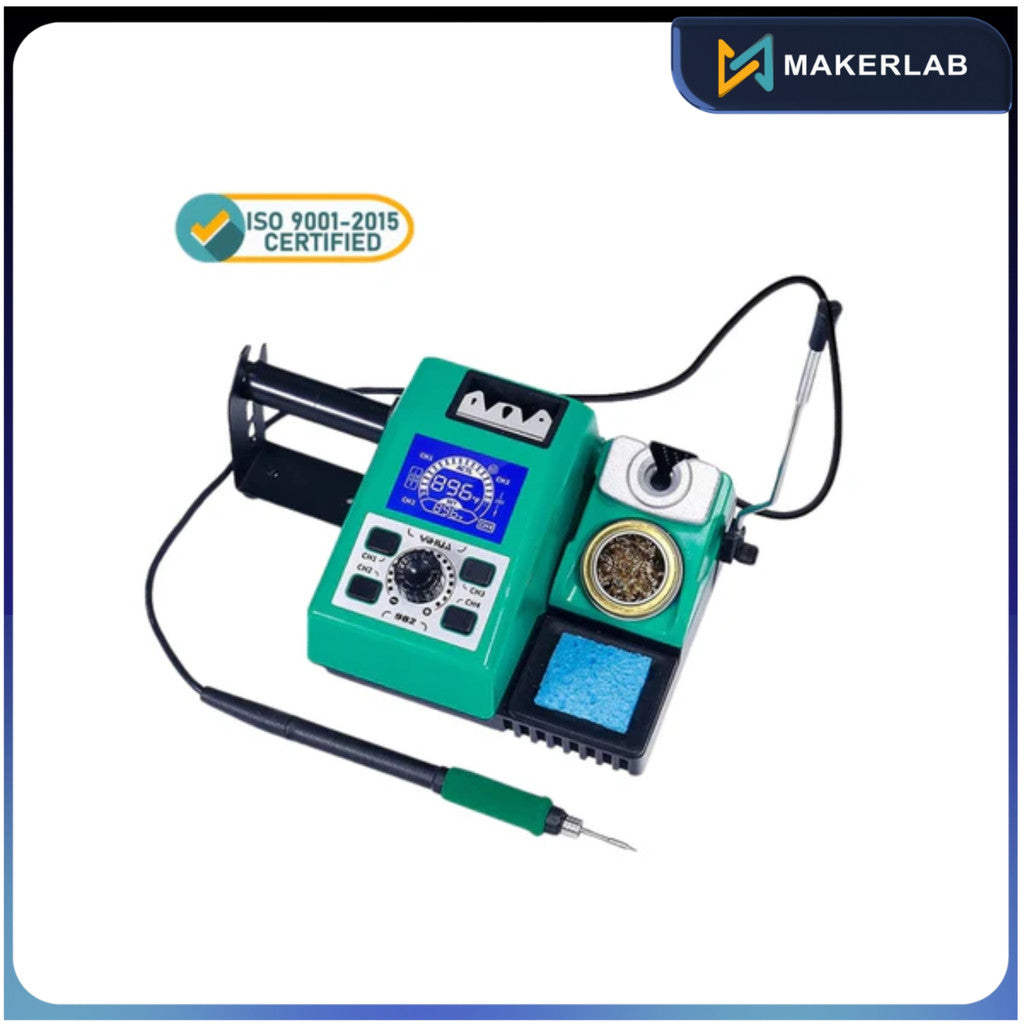

YIHUA 982 Thermostatic Temperature-Controlled Soldering Station

In the Box:

* main unit

* soldering iron

* cable guide

* soldering wire holder

* user manual

* power cord

CHARACTERISTIC

1.Only 3 seconds can heating up to 380℃；

2.Easy to disassemble and install heating element；

3.Bundles Up to 5 Services, One Hotkey to Operate；

4.Fahrenheit/Celsius Switch:

To meet different market demands.

5.Four Merry Presets;

You can preset temperature configurations in each memory channel for different needs.When soldering, you can select the suitable preset temperature configurations in CH1/CH2/CH3/CH4 quickly according to different soldering applications.

6.Digital Correction;

When the temperature appears deviation because of environmental impact or replacing the spare parts such as heating element, soldering iron, you can use this function to correct.

7.Sleep Mode;

When the soldering iron is placed back into the holder,and if the set temperature higher than 200℃/392℉,the iron will enter sleep mode,and cool to 200℃/392℉.If the set temperature is below 200℃/392℉,it will remain unchanged.You can pick up the soldering iron to wake the station.That extends the lifespan of the heating element,conserves energy,and protects the environment.

8.Automatic Shut-Down.

When the soldering iron enters sleep mode and not be picked up within approximately 30minutes,the soldering station will automatically shut off,you can pick up the soldering iron to restart the soldering station. That prevents leaving the station ON unsupervised, or forgetting to turn OFF the station.

9.Buzzer Prompt

Key prompt buzzer can be set to improve work efficiency.

PARAMETERS

Model:982

Input Voltage:AC 110~240V~,50-60Hz

C210 Handle Power:40W

C245 Handle Power:120W

Operating Ambient Temperature:0℃~40℃/32℉~104℉

Temperature range:90℃~450℃/194℉~843℉

Tip To Ground Resistance: ＜2 Ohms

Display: LCD

Inner box size: 20.8*19.8*12.8CM
