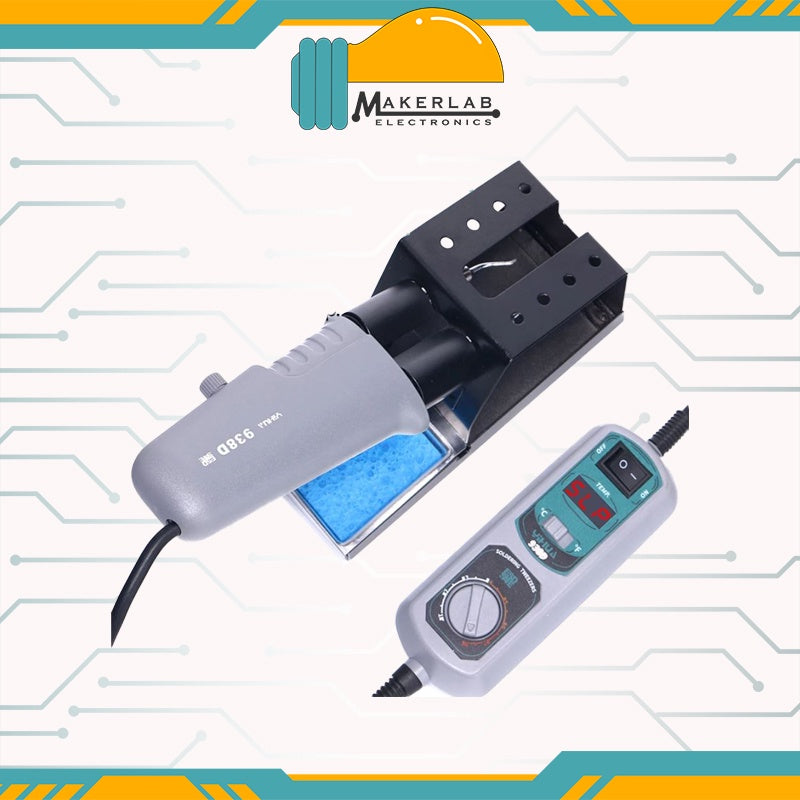

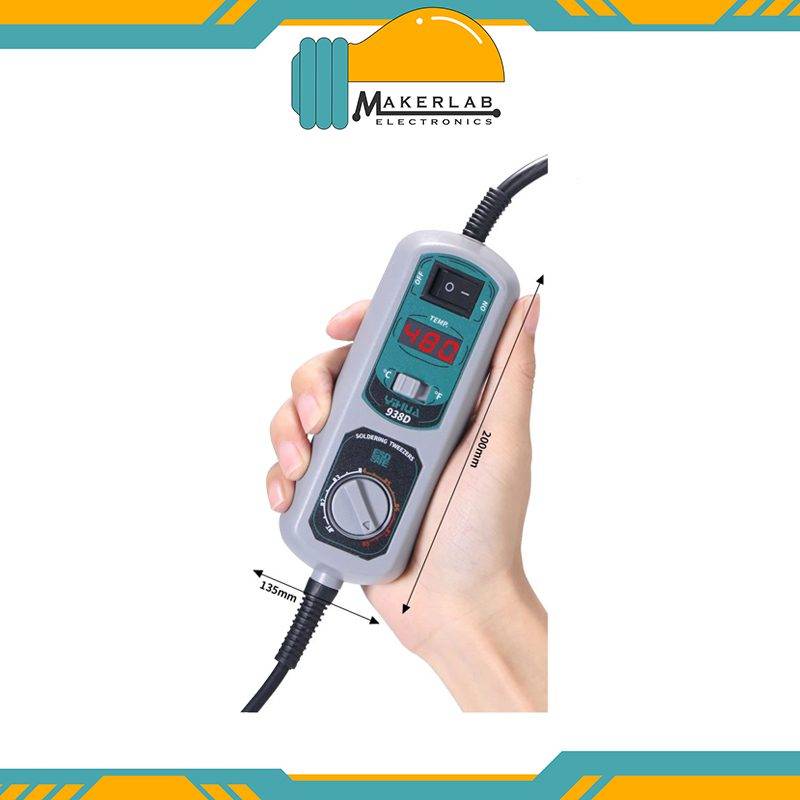

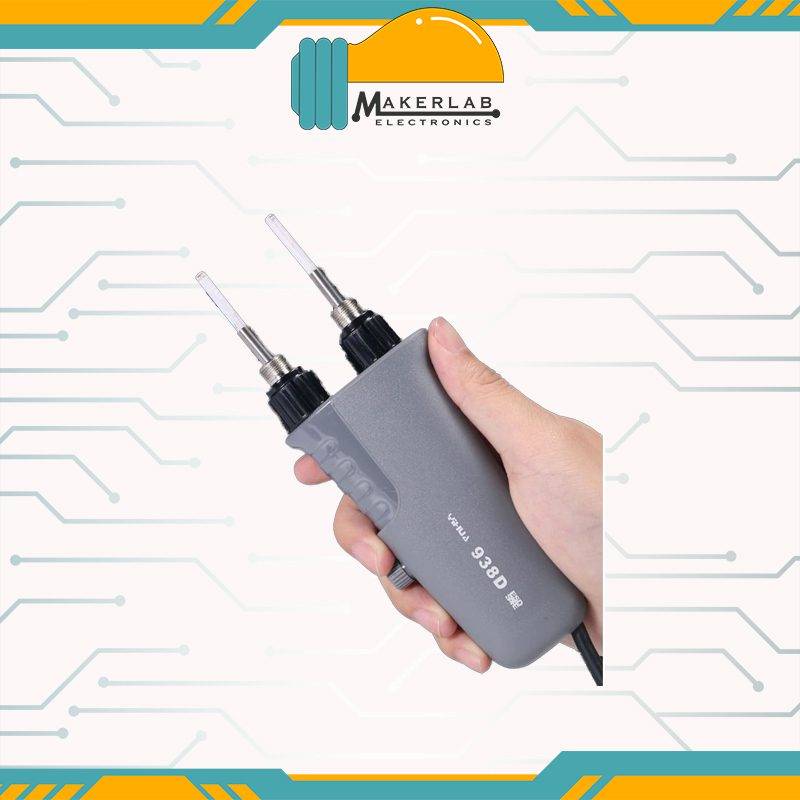

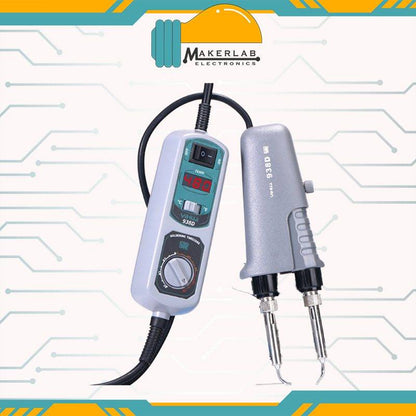

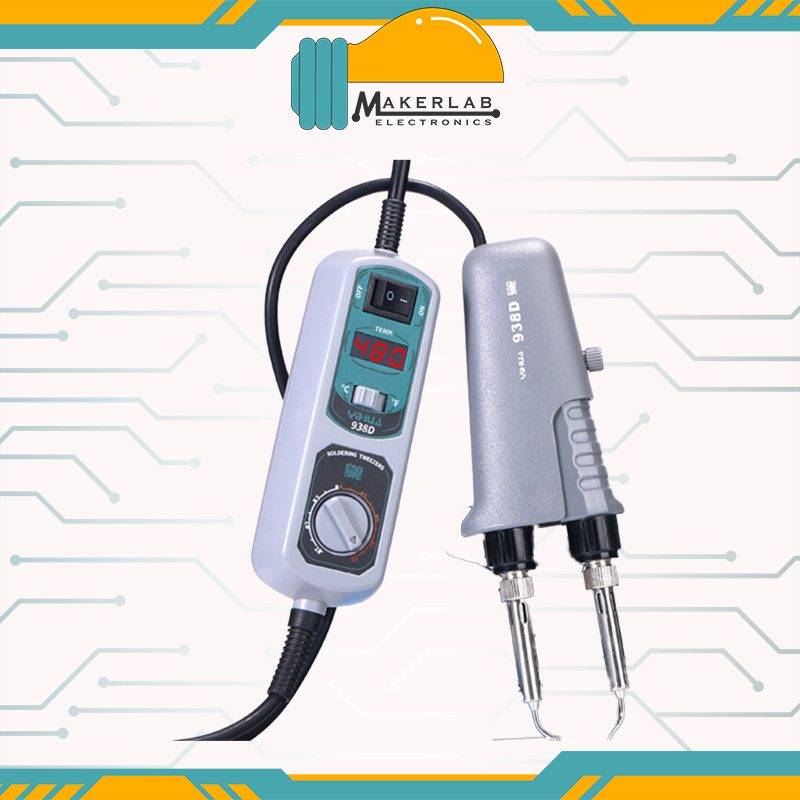

YIHUA 938D Portable Tweezers Station

Weld two solder joints by once, double efficiency.

Model: 938D (portable)

parameter:

Voltage: 220V~240V/AC,50Hz

Max: 240W

Power: 44W

Main unit size: L138xW51xH33mm ± 5mm.

Working temperature: 0 ? ~ 40 ?/32 °F ~ 104 °F

Temperature Range: 200?~480?/392°F~896°F

Display: LED Nixie TUBE

Tip Ground Resistance: <2ohms

Function:

1. Fahrenheit/Celsius, Different Satisfy

2. 10 minutes Auto-Sleep to ensure safety, reduce the possibility of tip oxidation, prolong the life of the tip.

3.Light and portable, one hand handle it

4.FAST heater, 60W heating element, 100-480 °C

5. More accurate, PID microcomputer temperature control.

6.Energy saving 10 minutes iron sleep

How to use:

Suitable for soldering and desoldering applications in a wide range of SMD and through-hole applications. This is especially for Manufacturing Assembly Lines, 2 solder joints can work at the some time to ensure working efficiency.
