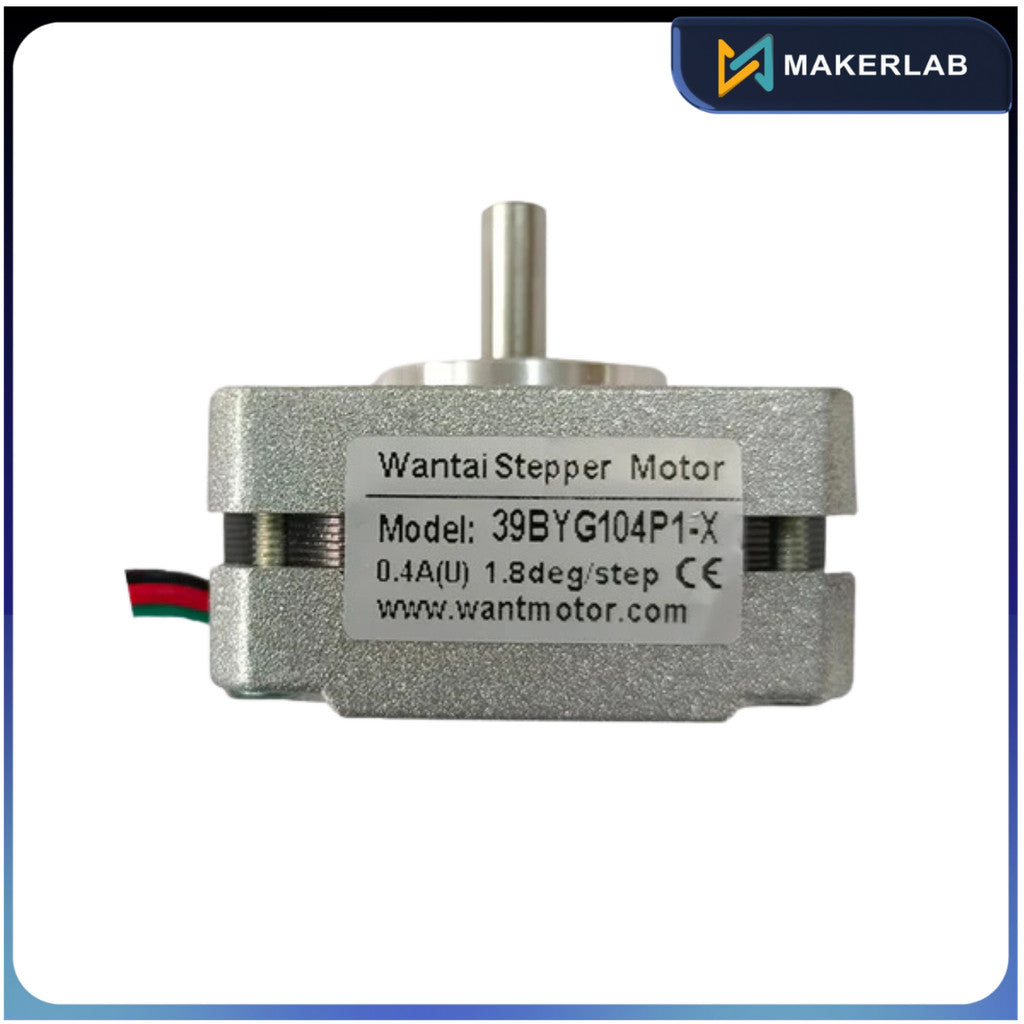

Wantai Nema 14 Stepper Motor 39BYG104P1-X

39BYG Stepper Motor is a high-torque, large-rotor motor that can move smoothly. It is very suitable for various small automation equipment and instruments, such as: pneumatic marking machine, labeling machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tool, clamping device, etc. The motor has the effects low vibration, low noise, high precision and high speed, and is well received by customers.

General Specification:

• Step Accuracy: 5%

• Temperature Rise: 80°C Max

• Ambient Temperature Range: -20°C - +50°C

• Insulation Resistance: 100MΩ Min. 500VC DC

• Dielectric Strength: 500V AC 1 minute

Electrical Specifications:

• Model: 39BYG104P1-X

• Step Angle (°): 1.8

• Motor Length L(mm): 26

• Rate Voltage (V): 6.3

• Rate Current (A): 0.42

• Phase Resistance (Ω): 15

• Phase Inductance (mH): 7.3

• Holding Torque (mN·m): 86.3

• Detent Torque (mN·m): 6.9

• Rotor Inertia (g·cm²): 13

• Lead Wire NO.: 6
