SKU:MLE01203

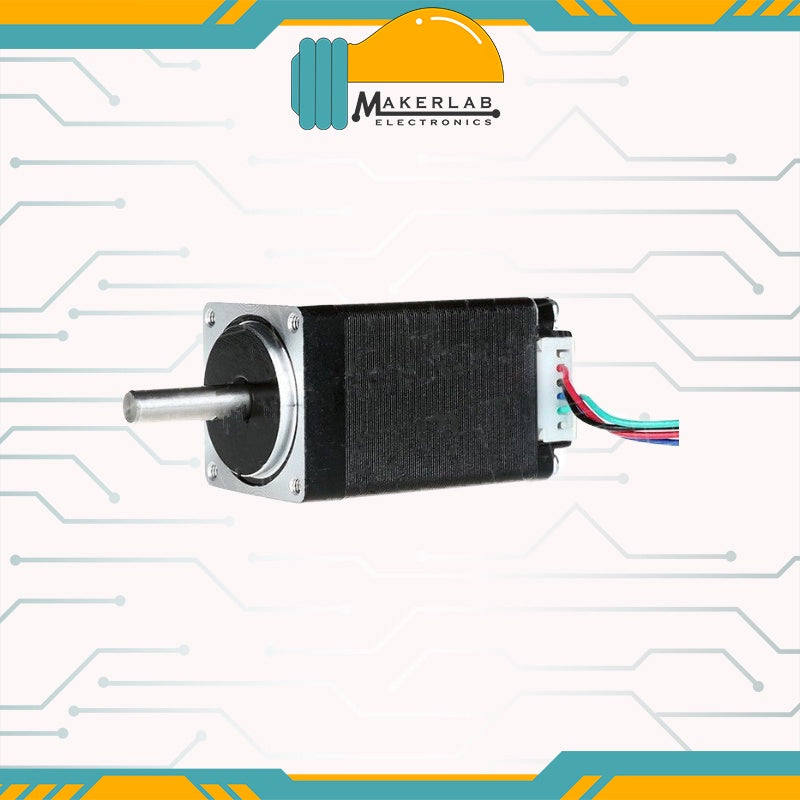

Wantai 20BYGH Stepper Motor
₱799.00
₱799.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
Only 4 units left
Couldn't load pickup availability
Share
About the Product
Product Description
*Wantai Stepper Motor 20BYGH302
20BYGH Stepper Motor is a 20mm two-phase stepper motor, Nema 8, Step Angle: 1.8°, Frame: 20*20mm motor. It is the smallest two-phase stepper motor on the market, high torque, high-speed response, small size, light weight, low carbon and environmental protection, products have passed quality environmental certification, CE, ISO, and ROHS certification.
Technical Data
View Product Details
*Wantai Stepper Motor 20BYGH302
20BYGH Stepper Motor is a 20mm two-phase stepper motor, Nema 8, Step Angle: 1.8°, Frame: 20*20mm motor. It is the smallest two-phase stepper motor on the market, high torque, high-speed response, small size, light weight, low carbon and environmental protection, products have passed quality environmental certification, CE, ISO, and ROHS certification.
Technical Data
- Model: 20BYGH302
- Step angle: 1.8°
- Motor Length L: 33mm
- Rate Voltage: 5V
- Rate Current: 0.2A
- Phase Resistance: 25Ω
- Phase Inductance: 8.4mH
- Holding Torque: 180g.cm
- Lead Wire: 4NO.
- Rotor Inertia: 9g.cm²
- Detent Torque: 30g.cm
- Motor Weight: 0.06kg
