SKU:MLE03465

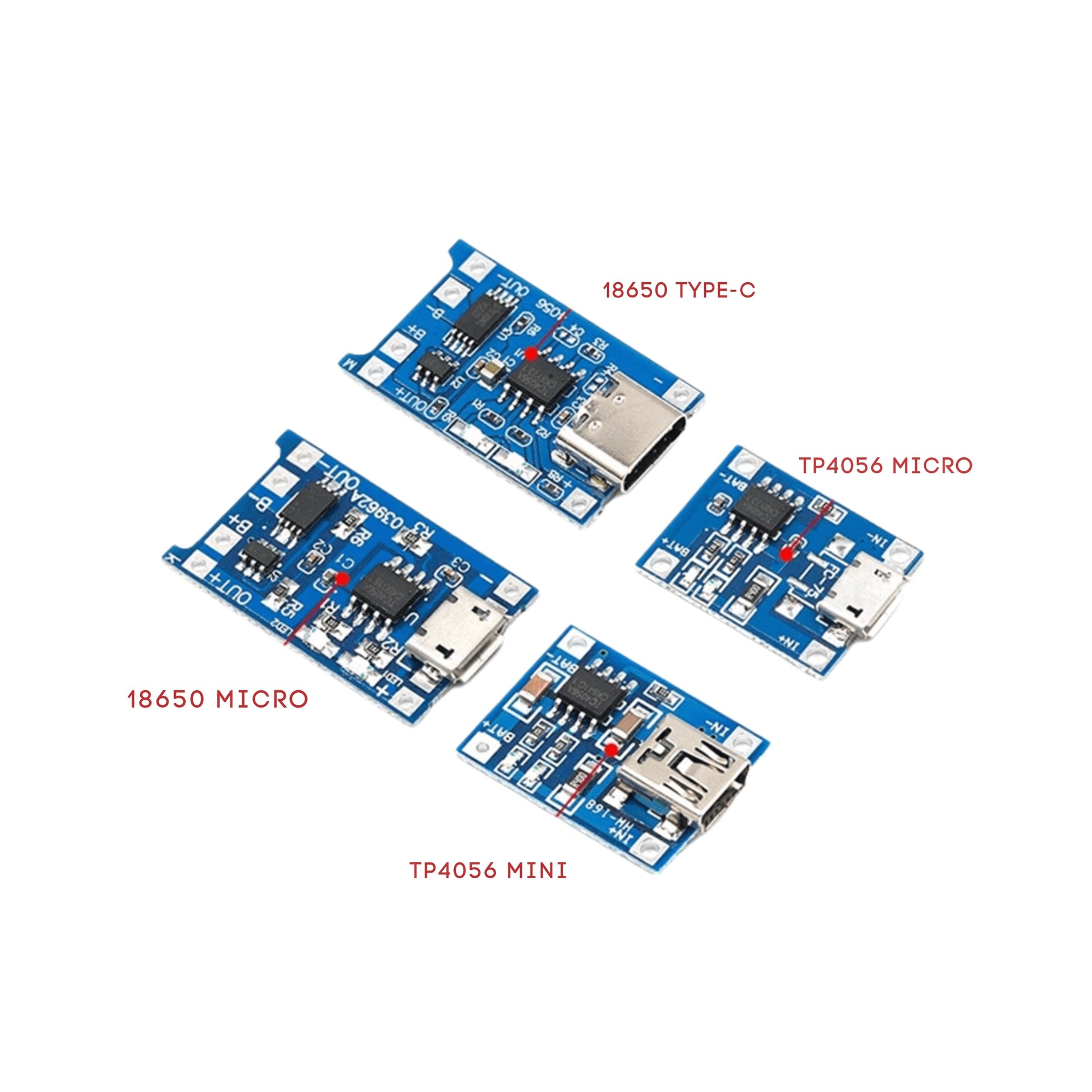

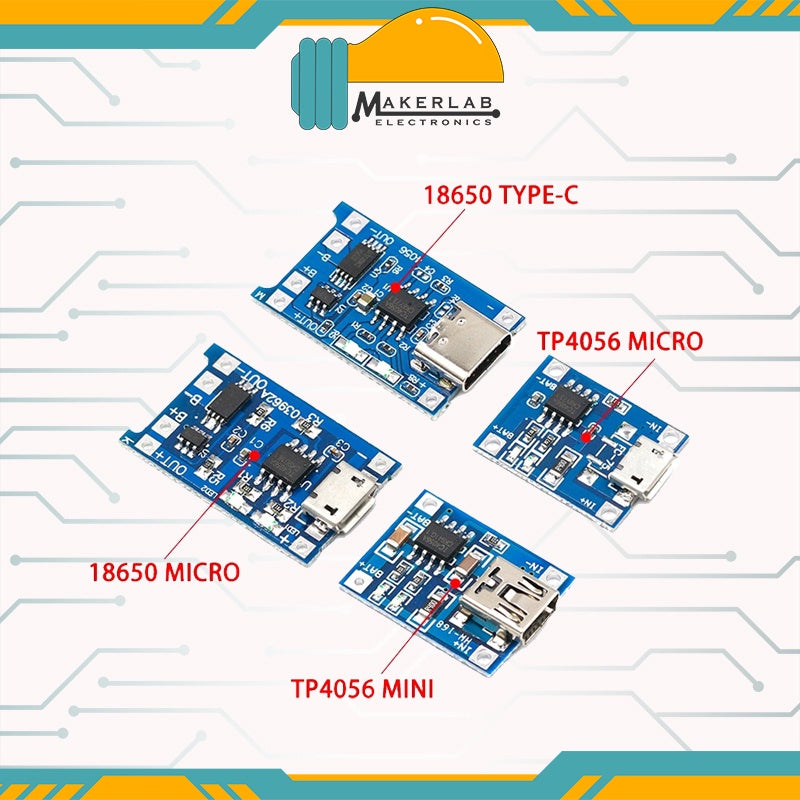

Type C Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection

₱30.00
₱30.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Type:: 18650 Type C

Loading locations...

About the Product

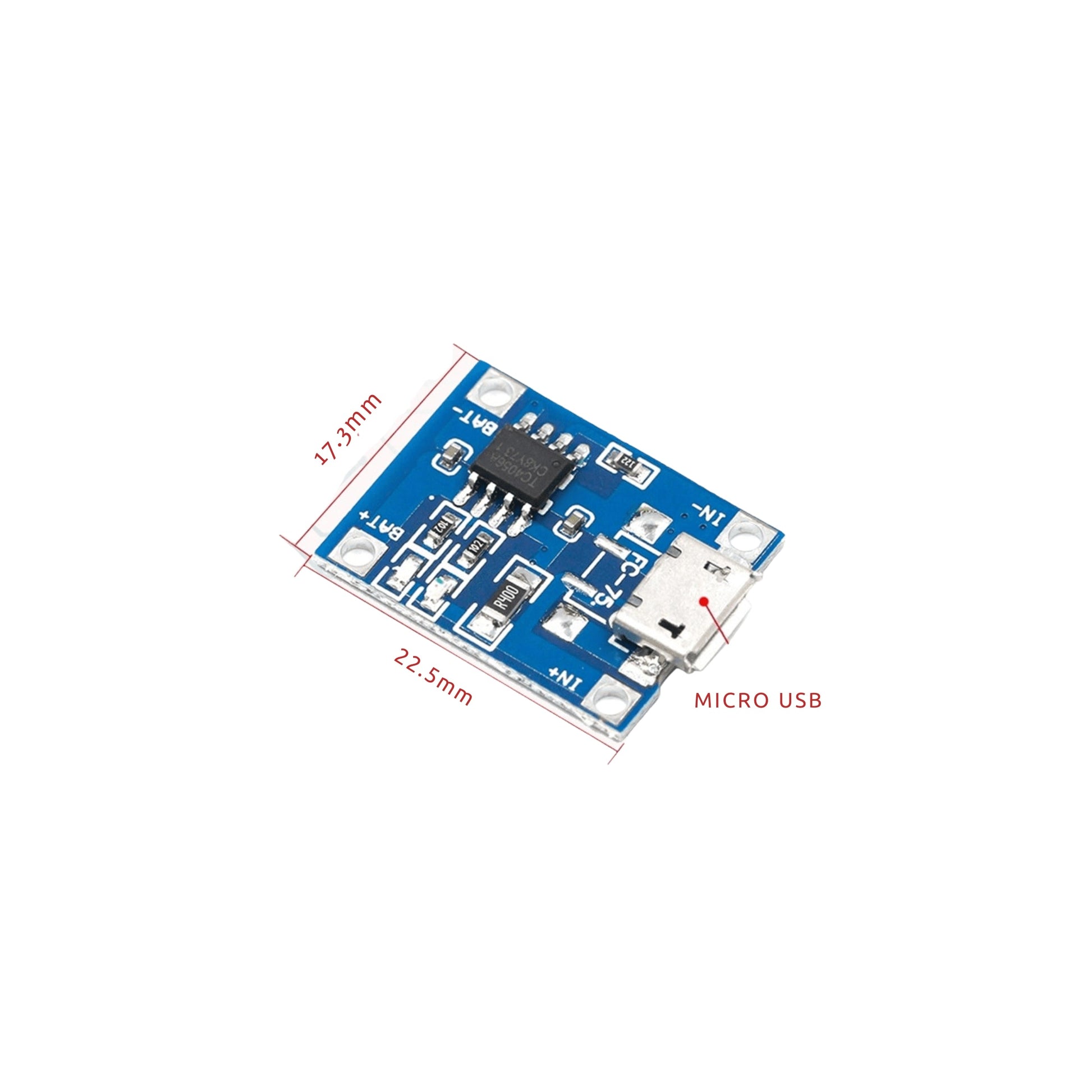

TP4056 1A Battery Charger Module Micro USB

This TP4056 specification charger board allows the user to charge the battery using either a Micro USB connector at 4.5V – 5.5V input voltage

Specifications:

  • Input Interface: Micro USB port
  • Charging method: linear charge
  • A full charge voltage: 4.2V.
  • Charge Current: 1A (default), modify the onboard resistor to adjust the charging current
  • Charging accuracy: 1.5%.
  • Charging indicator: BLUE LED charging, RED LED full
  • Working temperature: -10? to +85?
  • Polarity Reversal: NOT ALLOWED
  • Dimensions: 22 x 17mm

TP4056 5V 1A Lithium Battery Charging with Protection Micro USB

This TP4056 5V 1A Lithium Battery Charging with Protection Micro USB can be used for voltage 3.6 3.7, etc.

18650 lithium polymer and other lithium battery charge and discharge protection.

Features:

  • High-quality double-sided PCB design
  • Linear charging mode
  • Charges single-cell Li-Ion batteries directly from a USB/Type C port
  • Built-in protection circuit
  • LED indicator for charging status:
    • Red: Charging
    • Blue: Fully charged
  • Power input interfaces: Micro USB/Type C and terminal pin

Specifications:

  • Micro USB Interface WITH PROTECTION
  • Input voltage: 5V
  • Charging cut-off voltage: 4.2V ± 1%
  • Maximum charge current: 1000mA
  • Battery over-discharge protection voltage: 2.5V
  • Battery overcurrent protection current: 3A
  • Operating temperature range: -10? to +85?

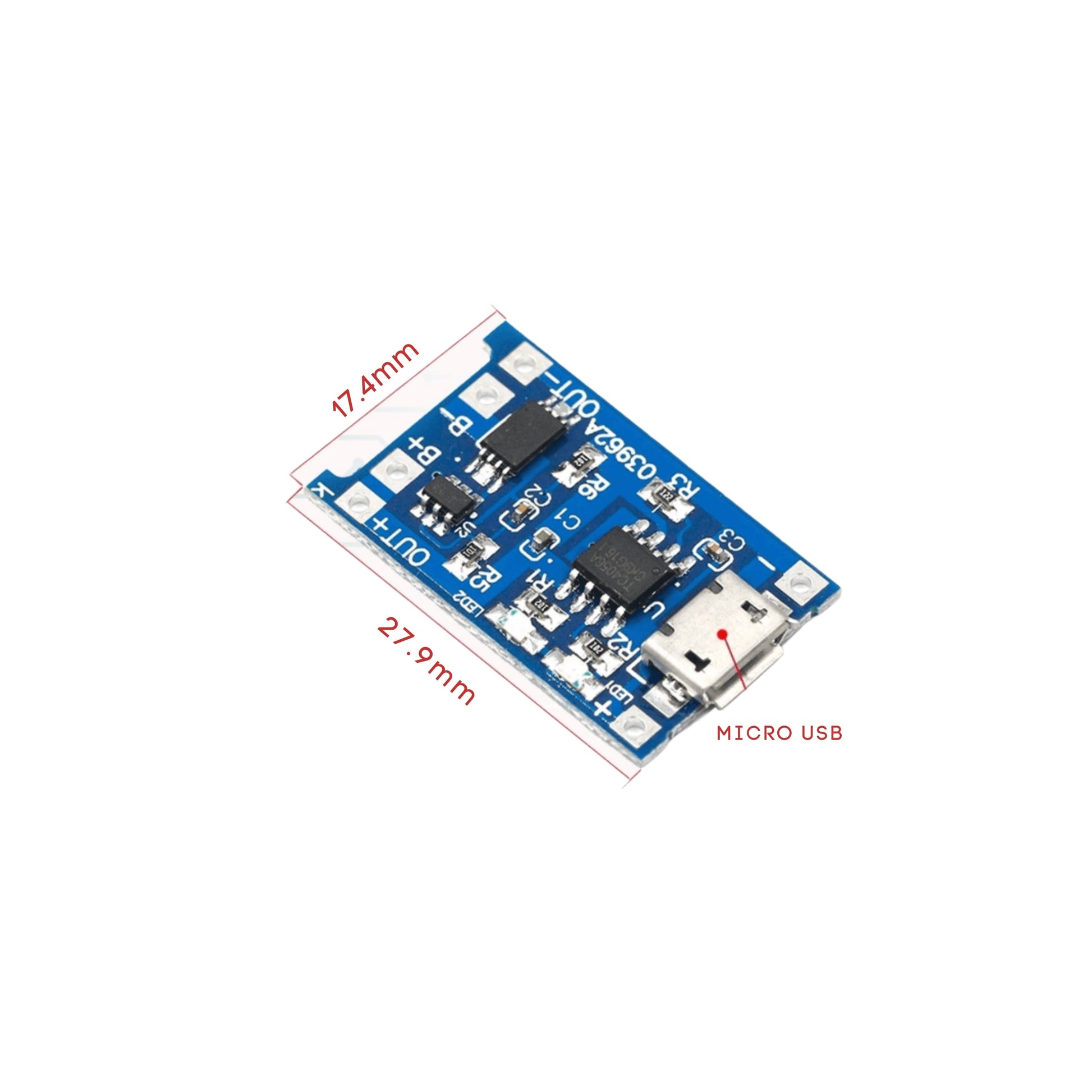

  • Board size (Micro USB): 17.2 mm x 27.55 mm

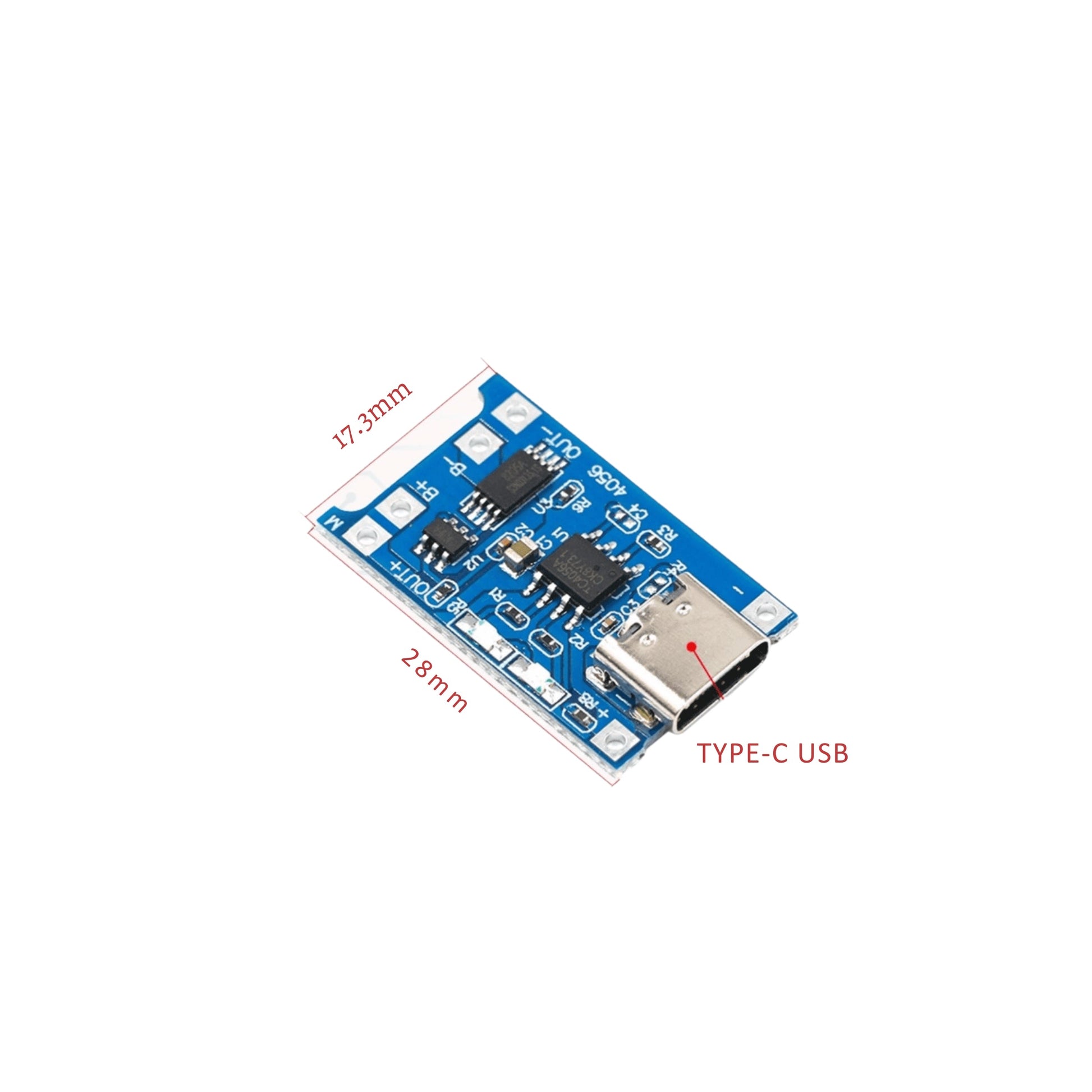

  • Board size (Type C): 17.4 mm x 28 mm

Package Include:

  • 1x TP4056 or 18650 Module
