Type C Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection
₱30.00
₱30.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
In stock
Couldn't load pickup availability
Share
About the Product

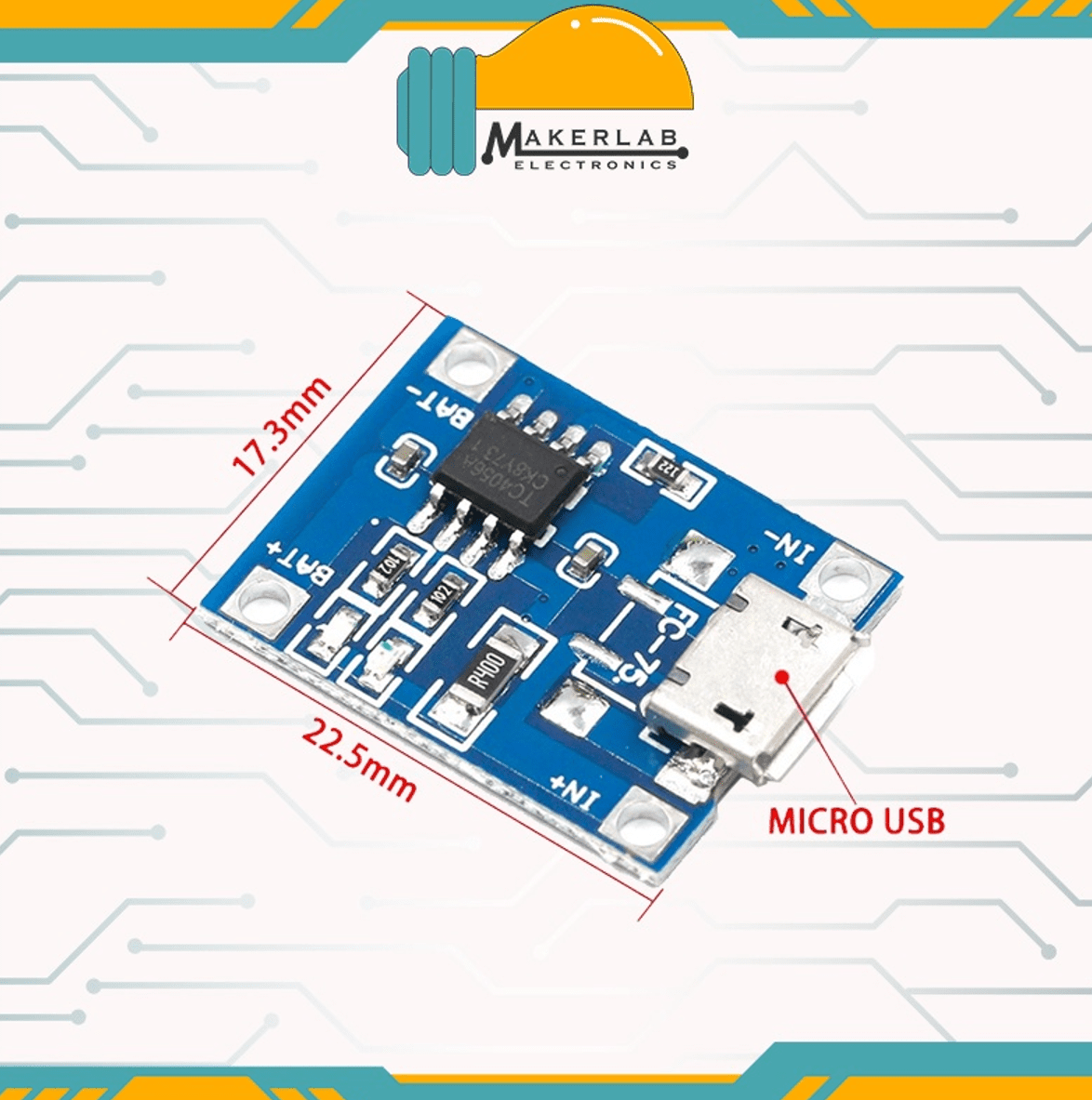

*TP4056 1A Battery Charger Module Micro USB
This TP4056 specification charger board allows the user to charge the battery using either a Micro USB connector at 4.5V – 5.5V input voltage
Features:
- Input Interface: Micro USB port
- Charging method: linear charge.
- A full charge voltage: 4.2V.
- Charge Current: 1A (default), modify the onboard resistor to adjust the charging current
- Charging accuracy: 1.5%.
- Charging indicator: BLUE LED charging, RED LED full.
- Dimensions: 22 x 17mm.

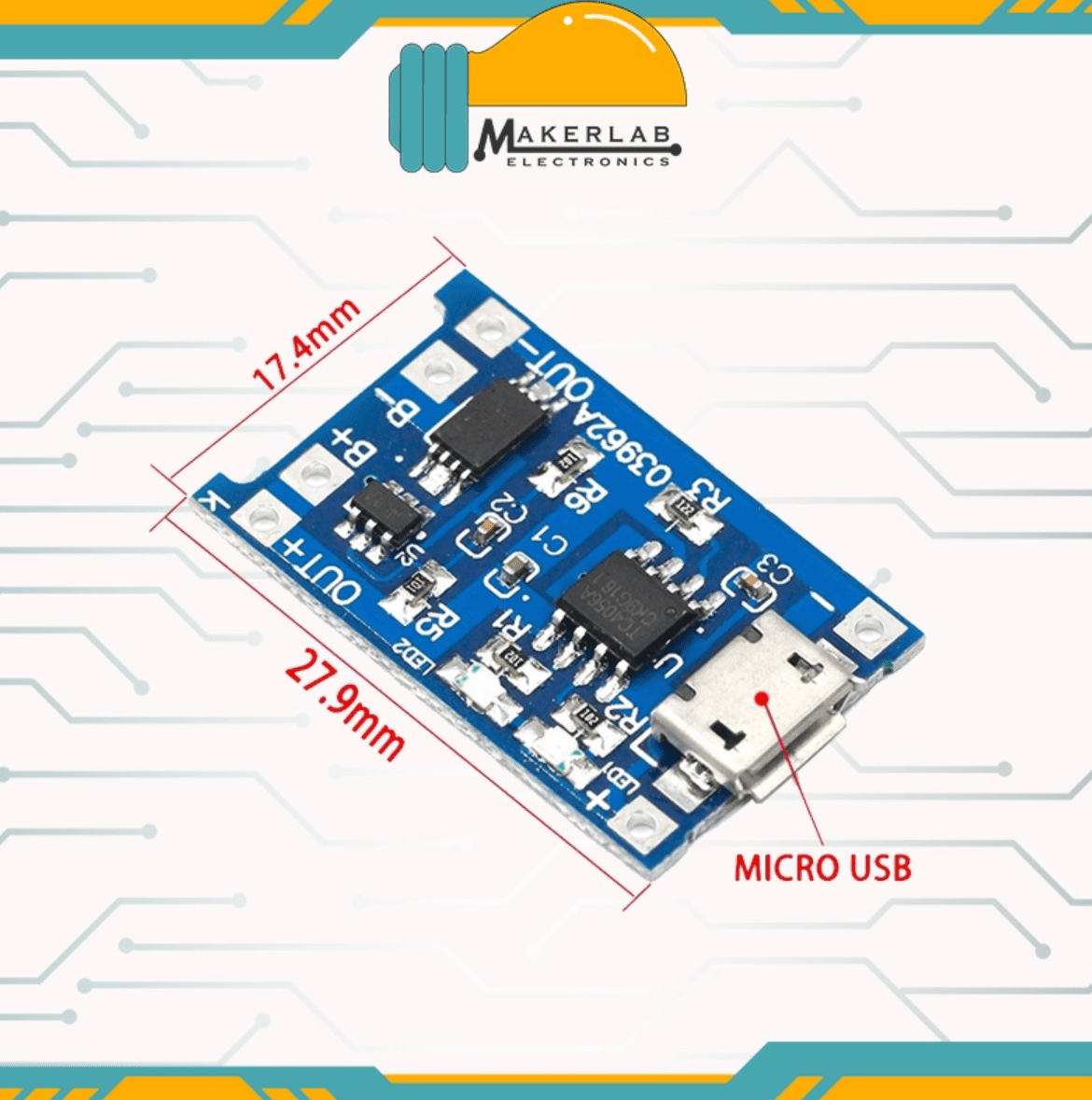

*TP4056 5V 1A Lithium Battery Charging with Protection Micro USB
This TP4056 5V 1A Lithium Battery Charging with Protection Micro USB can be used for voltage 3.6 3.7, etc.
18650 lithium polymer and other lithium battery charge and discharge protection.
Specification:
- Micro USB Interface WITH PROTECTION
- Input voltage: 5V
- Charging cut-off voltage: 4.2V ± 1%
- Maximum charge current: 1000mA
- Battery over-discharge protection voltage: 2.5V
- Battery overcurrent protection current: 3A
- Board size: 17.2 mm x 27.55 mm
Package Include: 1xTP4056 or 18650 Module
