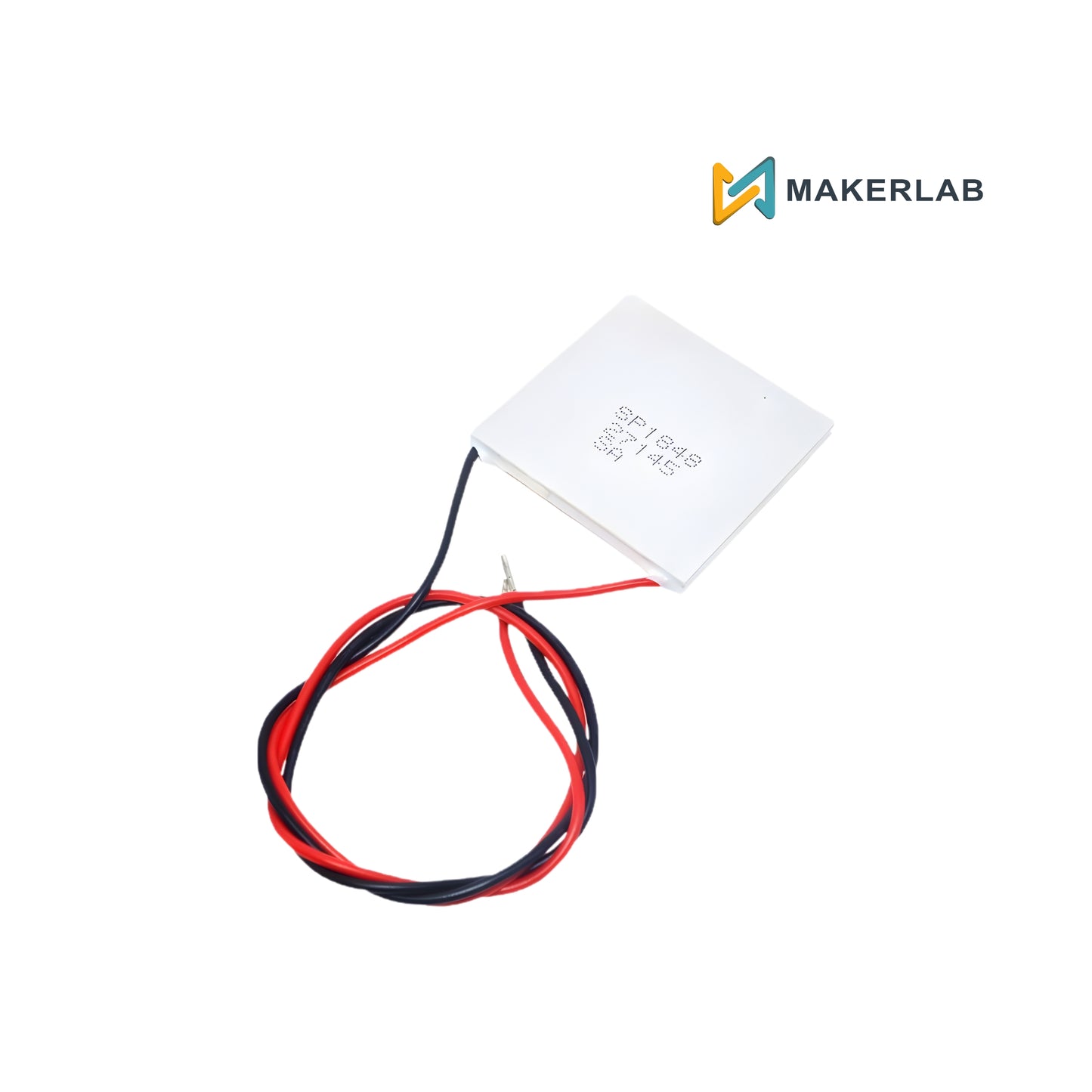

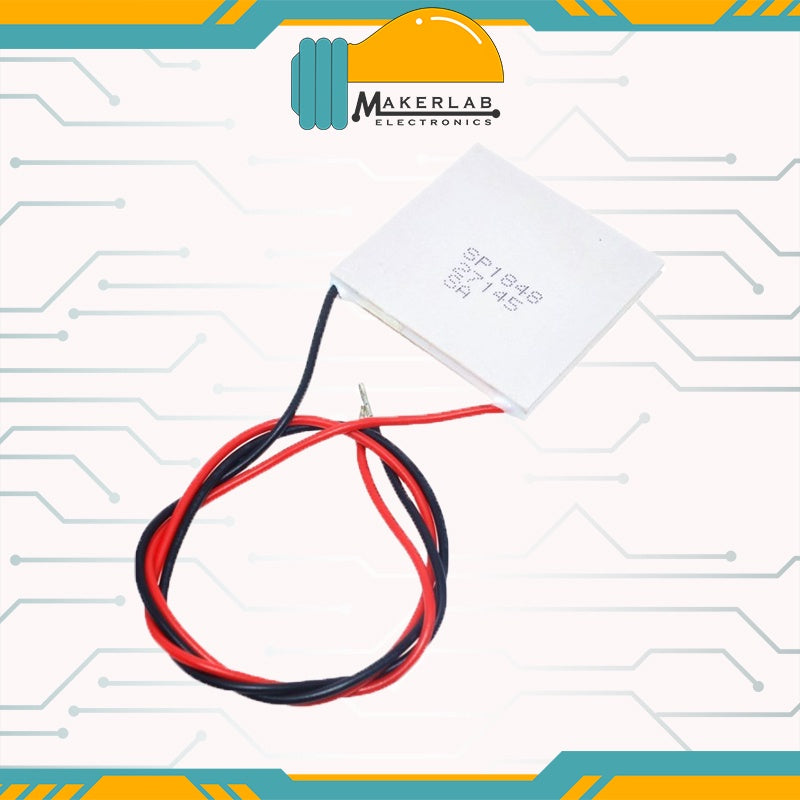

Thermoelectric Power Generator TEG Module

Thermoelectric Power Generator TEG Module
Specifications:

Material: Ceramic / Bismuth Telluride
Color: White
Parametric model: SP1848-27145
Temperature(C): 150 degree
Open-circuit voltage(V): 4.8V
Parameters:
- 20 degrees temperature difference: open circuit voltage 0.97V, generated current: 225MA;
- 40 degrees temperature difference: open circuit voltage 1.8V, generated current: 368MA;
- 60 degrees temperature difference: open circuit voltage 2.4V, generated current: 469MA;
- 80 degrees temperature difference: open circuit voltage 3.6V , Generated current: 558MA;
- 100 degrees temperature difference: open circuit voltage 4.8V, generated current: 669MA

Module weight: 25g / 0.89oz
Module size: 4 * 4 * 0.4cm / 1.6 * 1.6 * 0.2inch (L * W * H)
Package weight: 26g / 0.92oz
Package size: 14.5 * 10 * 0.4cm / 5.7 * 4 * 0.2inch (L * W * H

Features:

Small and lightweight, convenient for use.
Designed specifically for power generation.
Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
High temperature 150C, with NM static protection.
