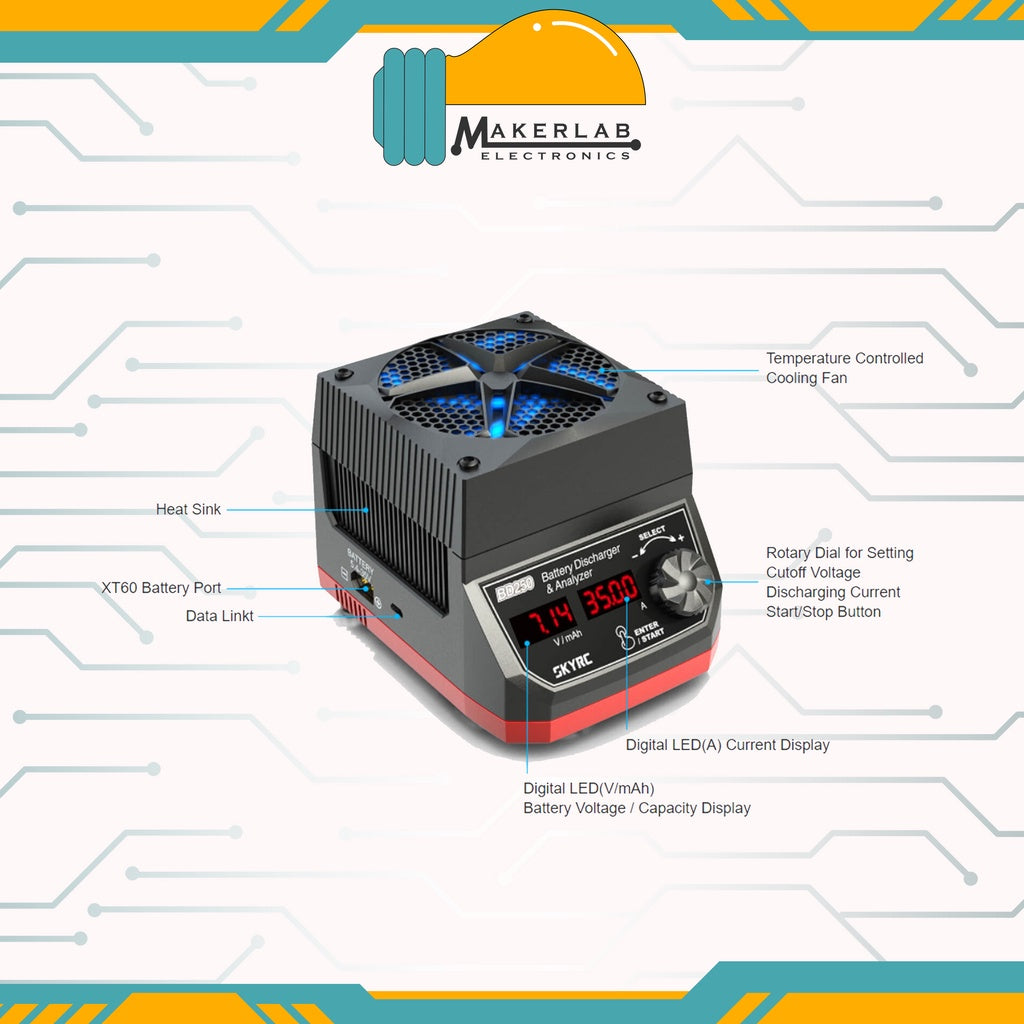

SKYRC BD250 Battery Discharger & Analyzer for LiFe LiPo LiHv NiMH NiCd Pb 250W 35A

Specifications:

BD250

- The BD250 is a powerful discharging device that allows the user to discharge a battery at up to 35 amps or 250 watts and also measures and compares the performance of batteries. BD250 allows for the precise measurement of battery capacity and takes the guesswork out of choosing the best battery for your application.

- The BD250 is much more than a simple battery discharger or a battery load tester. It will test virtually any type or size of battery, any chemistry or number of cells, up to 35 volts.

- It is small with a high performance cooling system and uses MOSFETS from the well-known brand IXYS, to make sure it can discharge at 200 watts continuously.

- With PC software connected, BD250 allows you to export the battery voltage value at 30 seconds intervals (for the first six minutes).

Specs:

• Size and Weight
• Dimension: 136.6x104.8x107mm
• Weight: 879g

Power

• Accepted Voltage Range: 5.40-35.00V
• Low Voltage Alert: <5.2V
• High Voltage Alert: >35V Max.
• Discharge Power: 250W

Discharge

• Discharge Current Range: 0.01A-35.00A
• Discharge Power: 250W

Display

• Current Consumption in Sleep Mode: <100uA
• Capacity Display Accuracy: ±3%

Current Display Accuracy:

0.01-10.00A ±60mA

10.00-35.00A ±3%

Voltage Display Accuracy:

5.4-10V <80mV

Inclusion:

• BD250
• Discharging cable with XT60 connector
• Fuse

Instruction Manual

10-20V <120mV

20-35V <160mV
