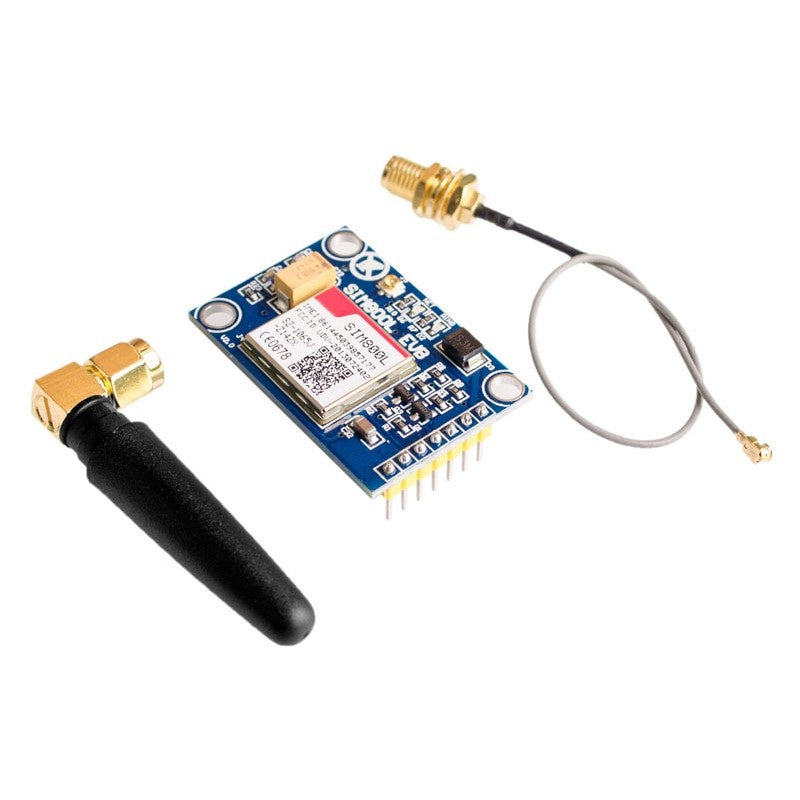

SIM800L V2 5V Wireless GSM GPRS Module

The SIM800 or SIM800L V2 5V Wireless GSM GPRS Module with the ability to send messages, make a call or transfer data over GPRS.

With dimensions (15.8 x 17.8 x 2.4 mm), this module fits into the compact design of the customer. At the same time, the SIM800L V2.0 - 5V module also integrates Bluetooth, FM and Embedded AT features to save you time and money in completing your product.

Functions:

• Supports Quad-band 850/900/1800/1900 MHz, which can transmit voice calls, SMS messages and low power data.
• GPRS multi-slot class 12/10
• GPRS mobile station Class B
• Compatible with GSM 2/2 +

1. 1. Class 1 (1 W 1800 / 1900MHz)
   2. Class 4 (2 W @ 850 / 900MHz)

• Bluetooth 3.0 + EDR compatibility
• FM: International band 76 ~ 109MHz, 50KHz correction level.
• Control over AT instruction set
• Voltage: 4.1 ~ 5VDC
• Operating Temperature: -40 ~ 85
