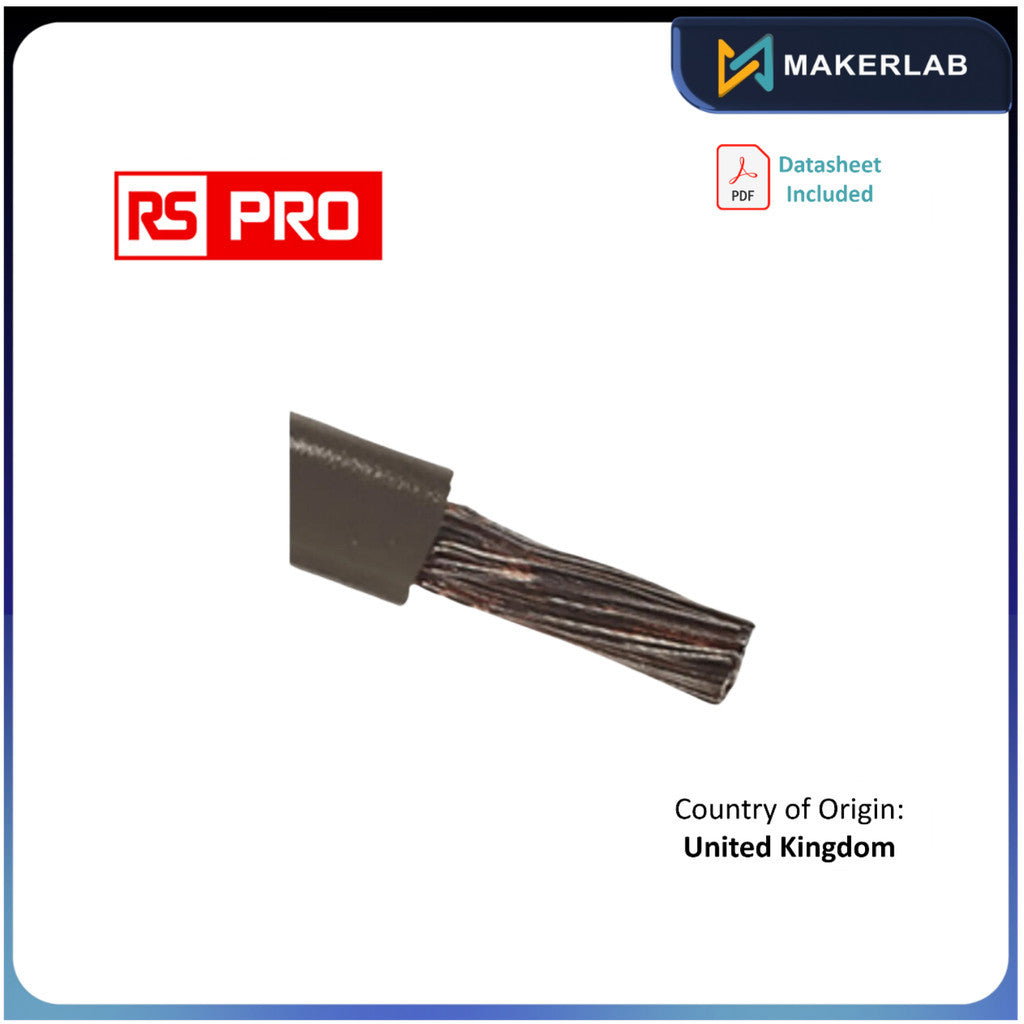

RS PRO Grey 4 mm² Tri-rated Cable, 12 AWG, 52/0.3 mm, 100m, PVC Insulation
₱9,700.00
₱9,700.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Only 2 units left
Couldn't load pickup availability
About the Product
Product Details
Tri-Rated Switchgear Cable
A plain copper stranded conductor covered with a PVC sheath. The advantage of using this type of cable is that it allows many different approvals to be met from a single cable type, thereby simplifying purchasing, stockholding, and production. Maximum Operating Temperature 90°C (105°C for 15,000 hours) to BS6231.
Note
The number of strands used in the construction of the conductors may vary. The figures quoted are nominal. Cables marginally exceed maximum diameter in BS6231 to meet UL/CSA.
Standards
BS6231 (UK), CSA TEW (Canada) and UL style 1015, 1028 or 1283 according to cable size (USA).
Specifications
| Attribute | Value |
| Cross Sectional Area | 4 mm² |
| Sheath Colour | Grey |
| Cable Shape | Single Core |
| American Wire Gauge | 12 AWG |
| Core Strands | 52/0.3 mm |
| Length | 100m |
| Insulation Material | PVC |
| Voltage Rating | 1 kV |
| Outer Diameter | 4.3mm |
| Maximum Operating Temperature | +105 (Air) °C, +60 (Oil) °C |
| Current Rating | 41 A |
| Conductor Material | Annealed Copper |
| Standards Met | CSA C22.2 Type TEW, UK BS 6231, UL 1015 |
| Tri-rated | Yes |
| Insulation Wall Thickness | 0.8mm |
| Number of Strands | 52 |
