About the Product
Product Details

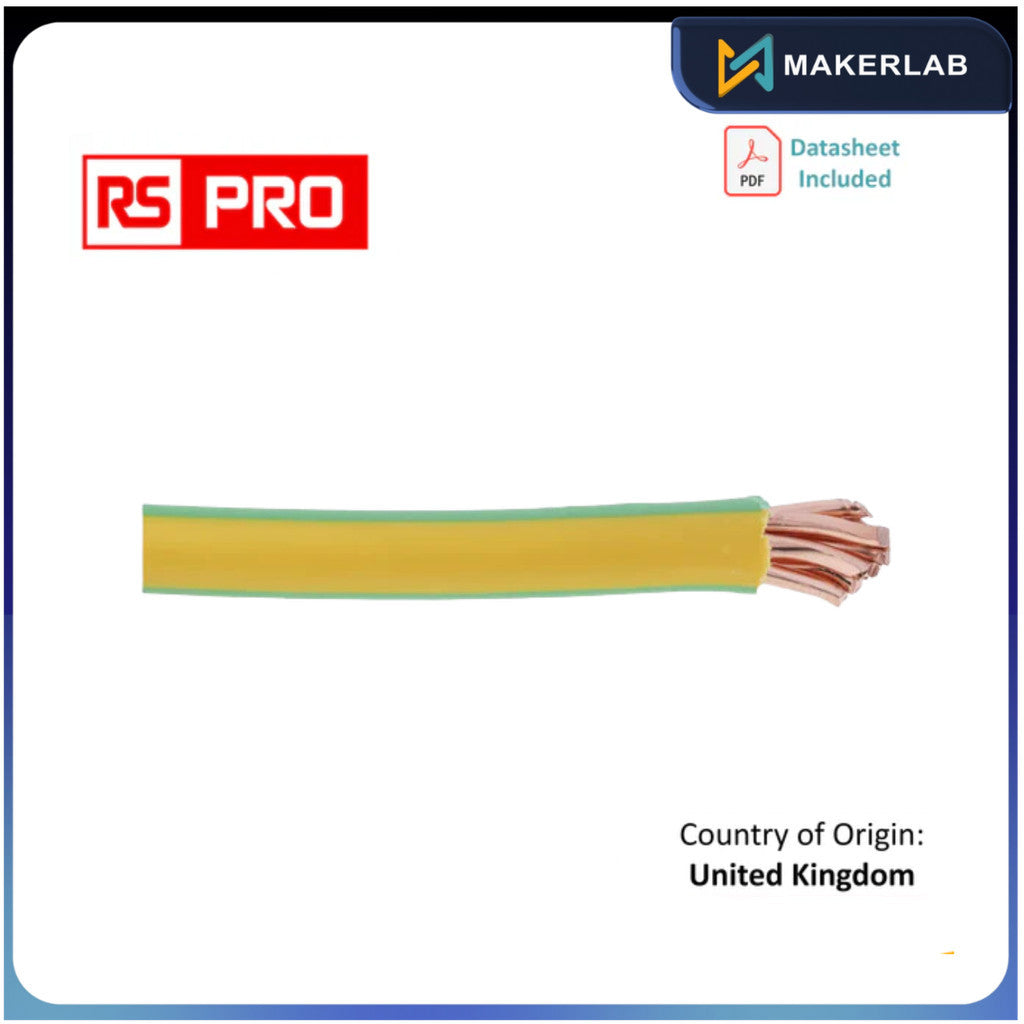

RS PRO Single Core Cable
RS Stock No.:185-3968
The RS PRO 100m low smoke non-halogen (LSNH) thermosetting insulated single-core cable has a plain annealed copper conductor with a nominal cross-sectional area of 25mm². The HO7Z-R harmonised green/yellow coloured cable has a voltage rating of 450VDC and 750VAC. It is designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire. The cable is intended for installation in surface mount or embedded conduits, or similar closed systems. This cable is suitable for use in channels with cover.
Features and Benefits
• Operating temperature ranges between -15°C and 90°C
• Low smoke non halogen insulation
• Insulation wall thickness: 1.2mm
• Strand size: 2.14mm
• Overall diameter ranges between 8.1mm and 10.1mm
• Number of strands: 7
• Low smoke non halogen insulation
• Insulation wall thickness: 1.2mm
• Strand size: 2.14mm
• Overall diameter ranges between 8.1mm and 10.1mm
• Number of strands: 7
Applications
• Switchgear
• Controlgear
• Fixed protection installation
• Controlgear
• Fixed protection installation
Specifications
| Attribute | Value |
| Cross Sectional Area | 25 mm² |
| Sheath Colour | Green/Yellow |
| Cable Shape | Single Core |
| Core Strands | 7/2.14 mm |
| Length | 100m |
| European Harmonised Code | H07V-R |
| Voltage Rating | 450 V dc, 750 V ac |
| Outer Diameter | 10.1mm |
| Cable Type | Conduit |
| Series | 6491B |
| Insulation Wall Thickness | 1.2mm |
| Number of Strands | 7 |
| Outer Sheath Material | LSZH |
