Raspberry Pi Pico RP2040 Microcontroller | Raspberry Pi Pico W

Board Specifications

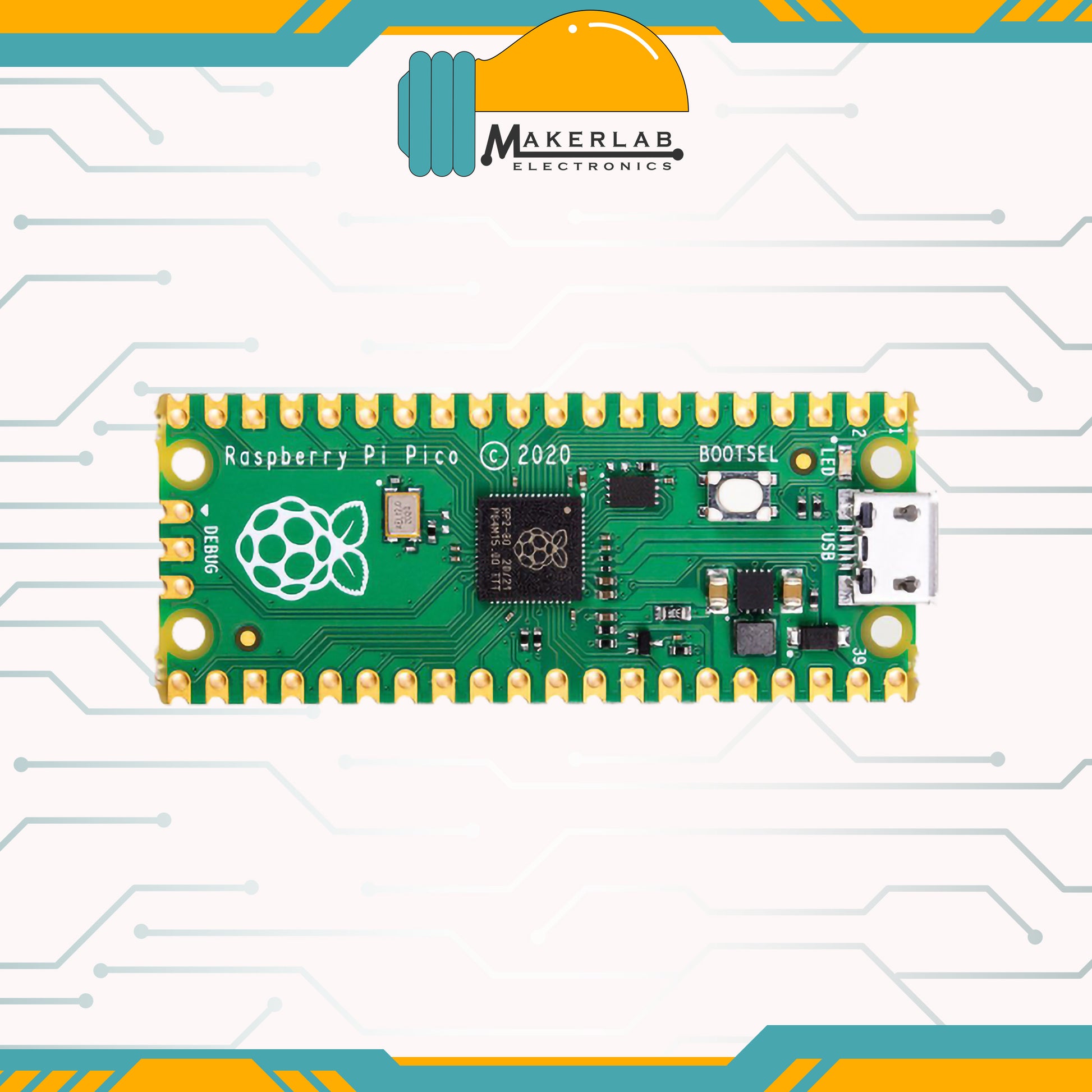

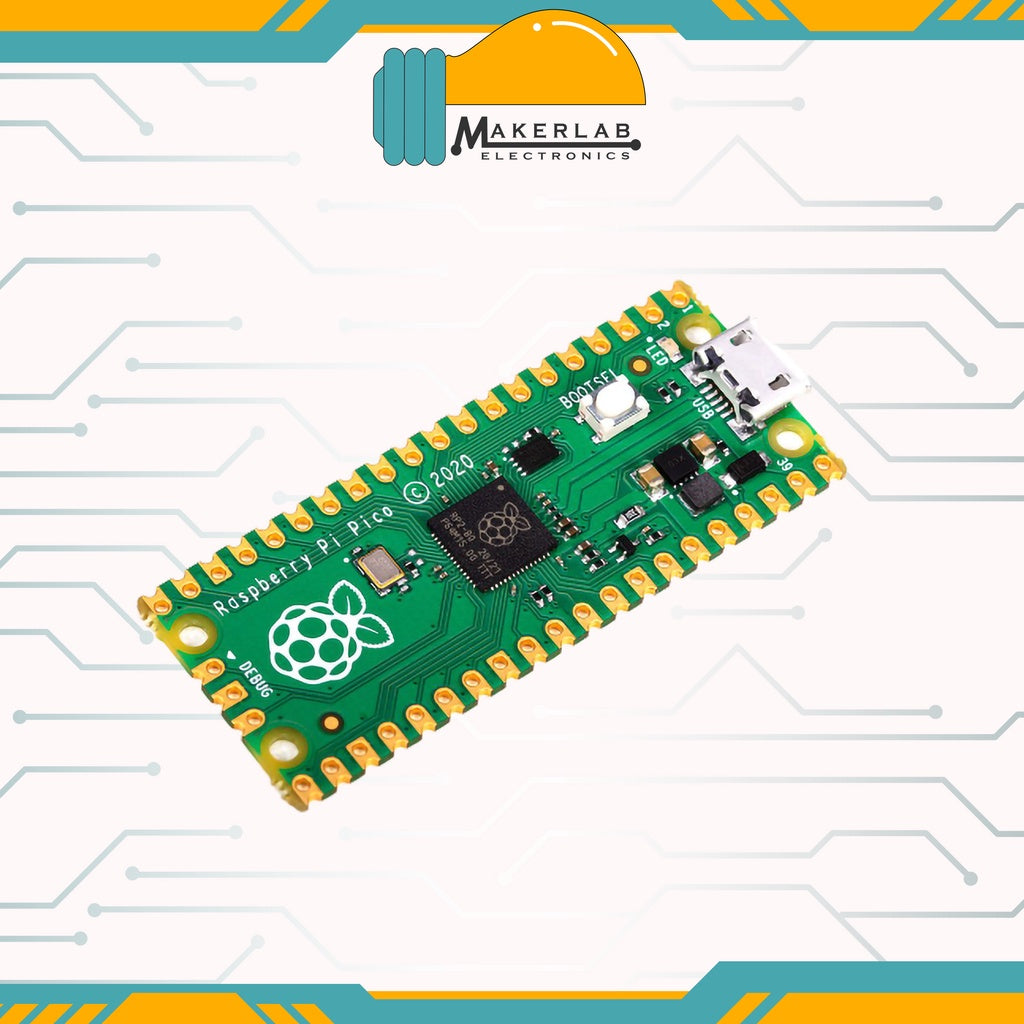

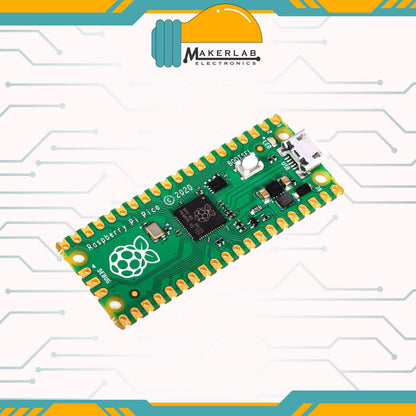

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces.

Key features include:
• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB

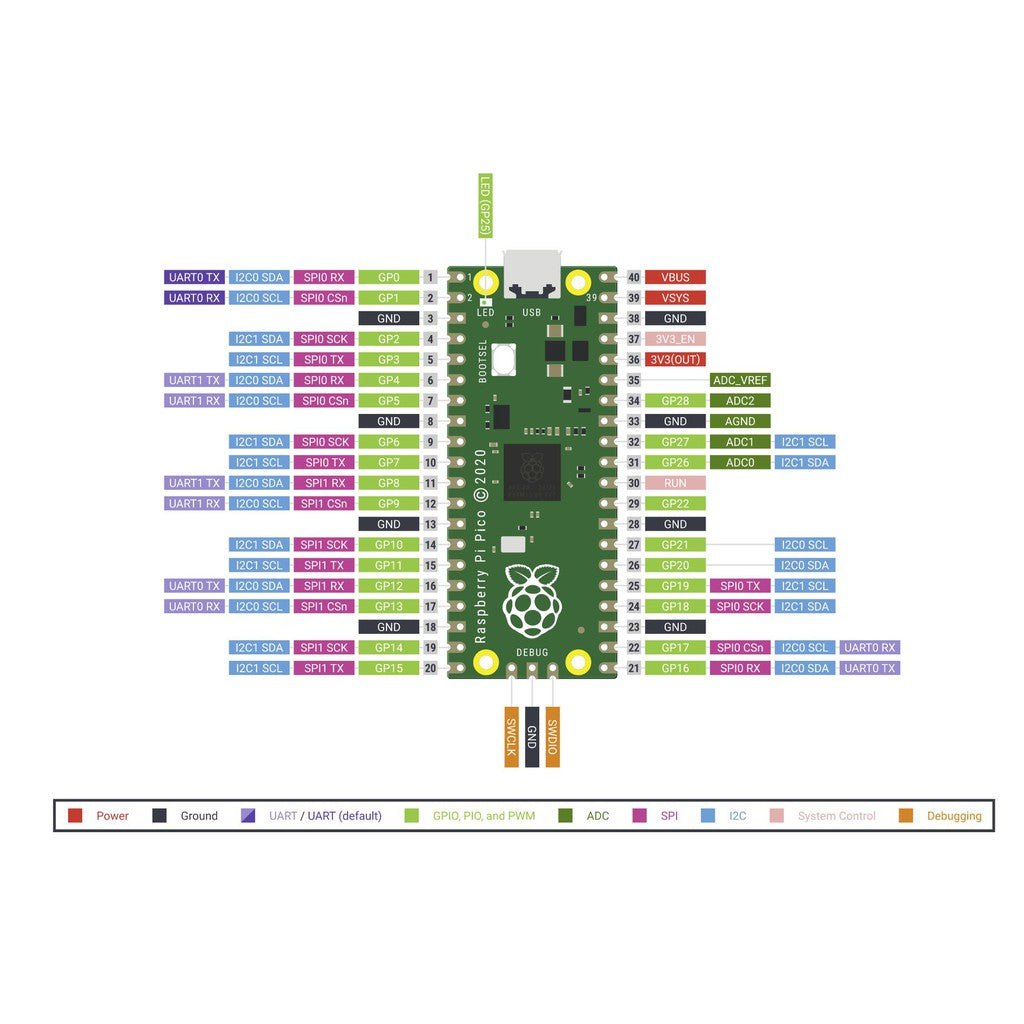

• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

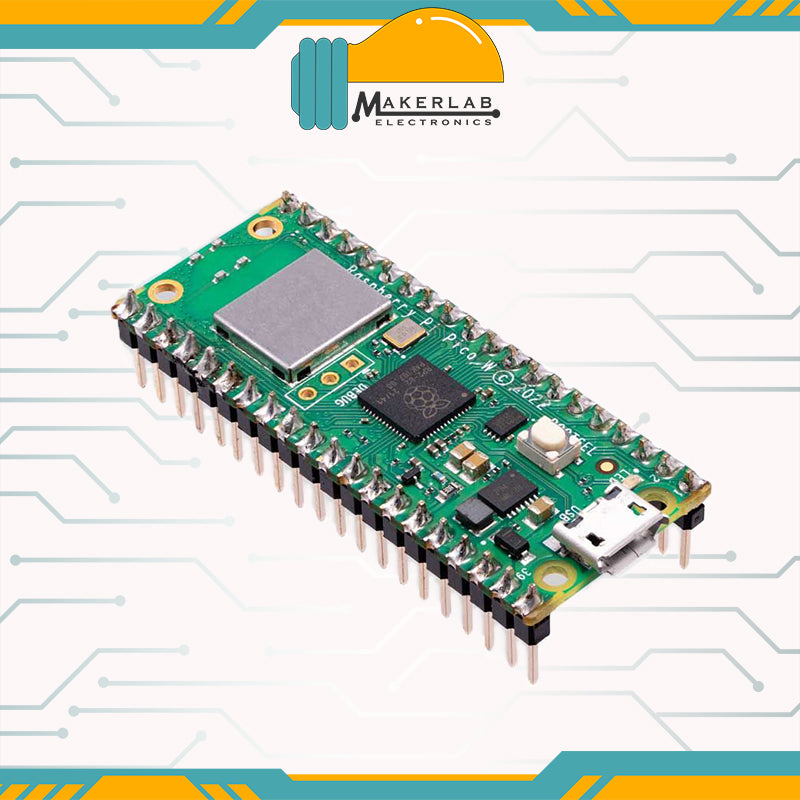

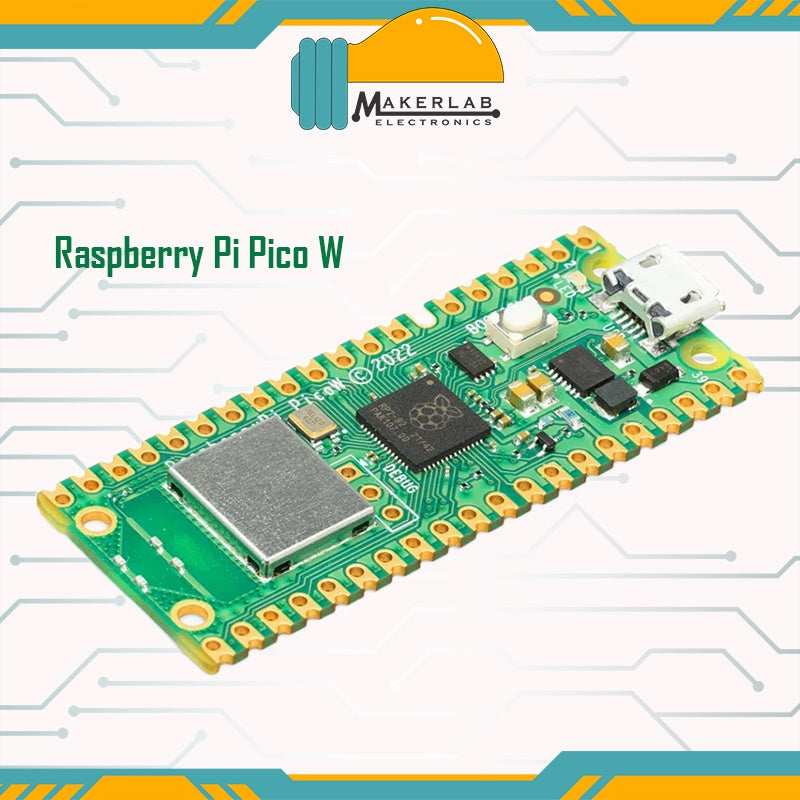

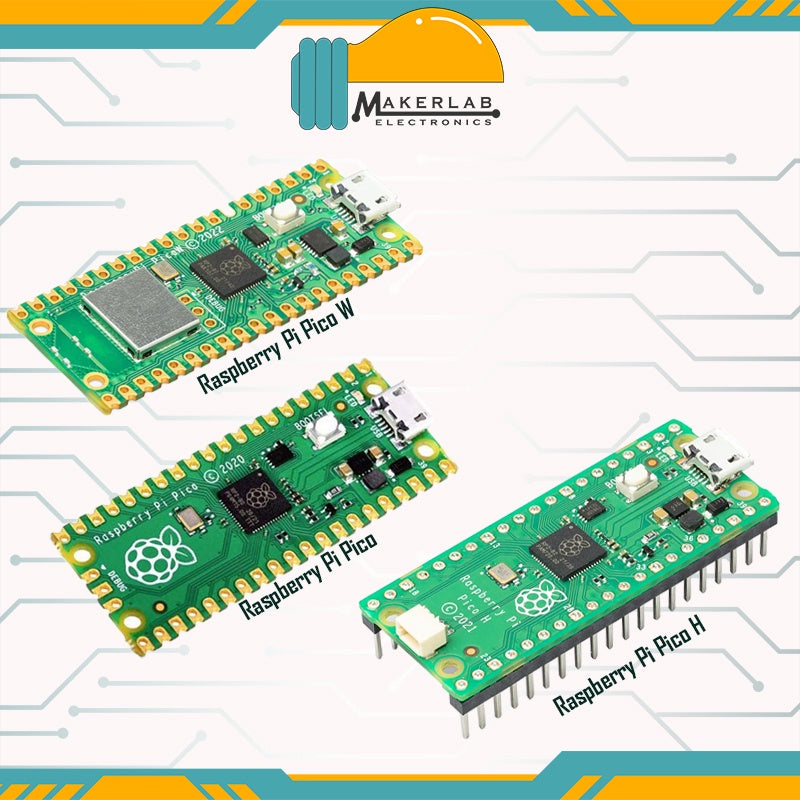

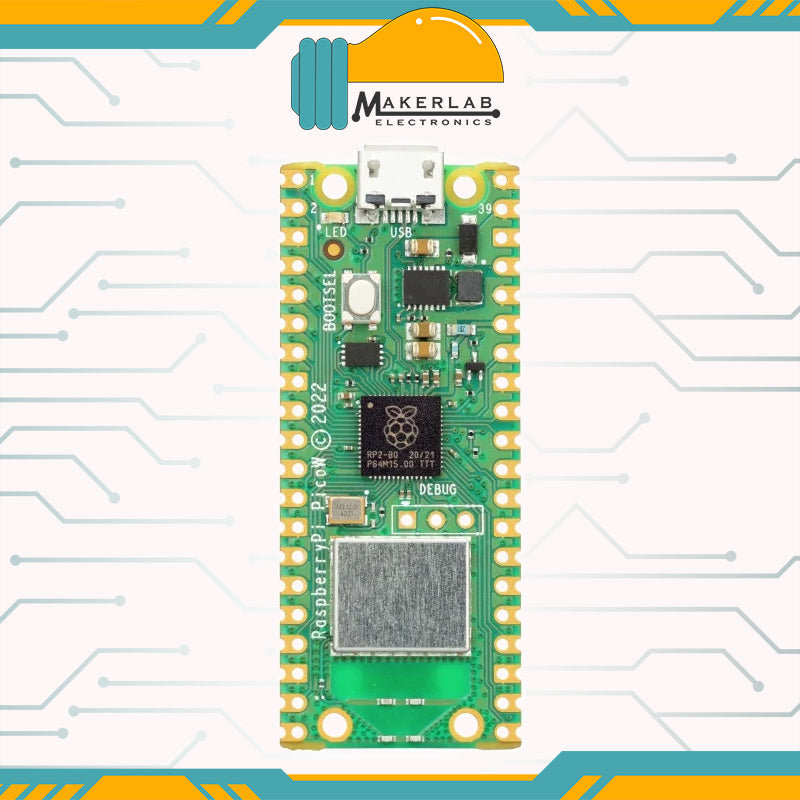

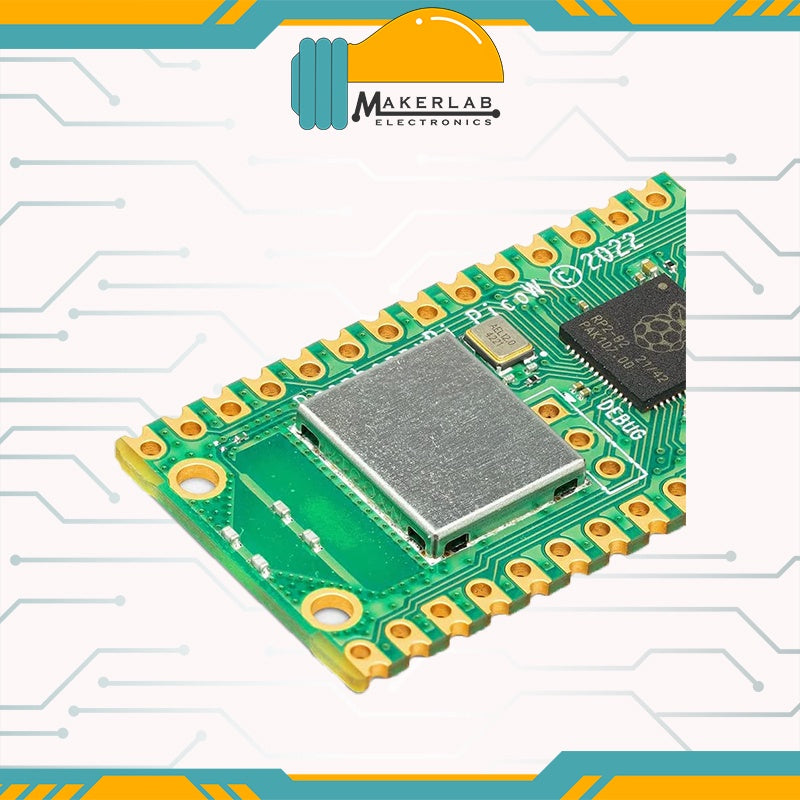

A small Raspberry Pi Pico W module equipped with the proprietary Raspberry RP2040 microcontroller with the CYW43439 wireless communication system. RP2040 is a dual-core ARM Cortex M0 + chip clocked at 133 MHz, with 264 KB of SRAM and 2 MB of Flash memory. Thanks to the CYW43439, WiFi IEEE 802.11 b / g / n wireless communication is possible. The system has 26 GPIO pins that work with a voltage of 3.3 V, and a built-in temperature sensor. The Raspberry Pi Pico is programmed in C / C ++ and MicroPython via the microUSB connector.

The board has a built-in microUSB port, which is used both for power supply and communication of the Raspberry Pi Pico W board with a computer. For proper operation, the module requires a 5V power supply. The board can also be powered from the VSYS pin with voltage from 1.8 V to 5.5 V , using, for example, a 3.7 V Li-Pol battery or a 3x AA battery.

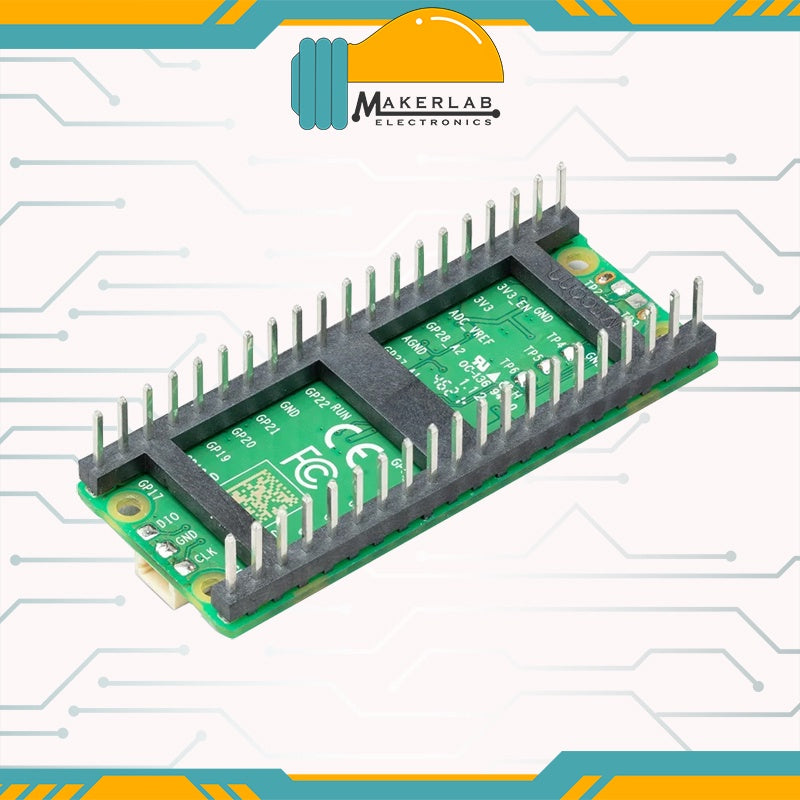

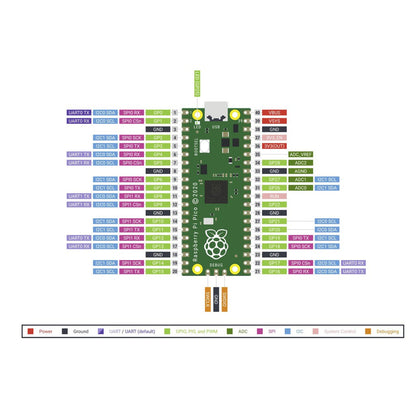

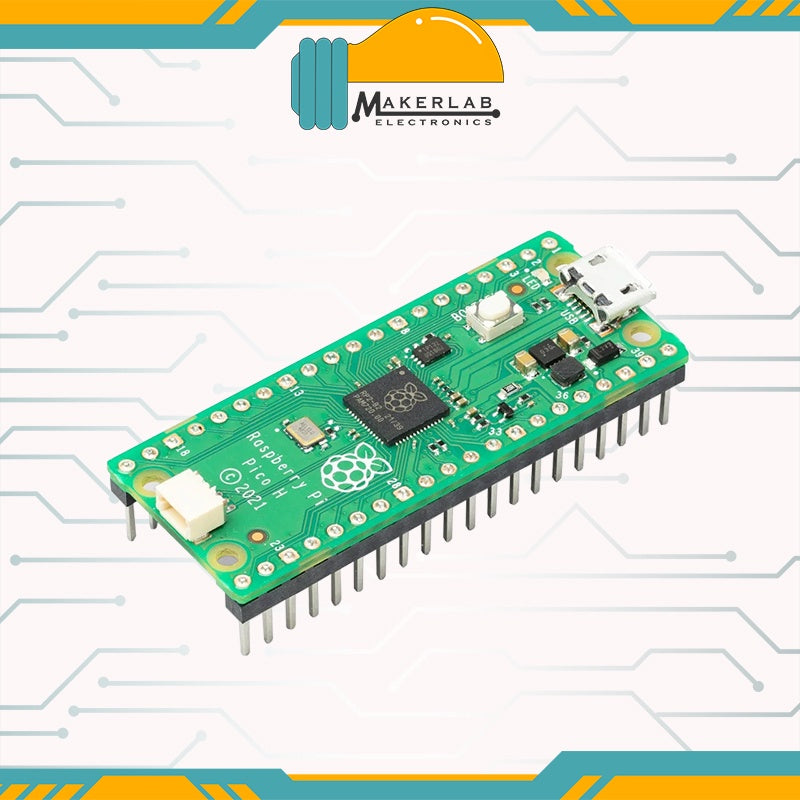

The Raspberry Pi Pico H is equipped with the proprietary Raspberry RP2040 microcontroller. Pico H has factory-soldered male connectors to the GPIO pins and the JST SH 3-pin connector, raster 1 mm soldered to the JTAG pin. RP2040 is a dual-core ARM Cortex M0+ chip clocked at 133 Mhz. The Raspberry Pi Pico is equipped with 264 KB of SRAM and 2 MB flash memory. The system has 26 GPIO pins that work with a voltage of 3.3V and a built-in temperature sensor. The Raspberry Pi Pico is programmed in C/C++ and MicroPhython via the microUSB connector. Raspberry Pi Pico has 26 GPIO pins, they are: 2x SPI, 2x I2C, 2x UART, 3x ADC 12-bit, 16x PWM. Additional 8 IO pins (PIO) are designed to support non-standard peripherals.

Specification:
System: Raspberry Pi RP2040
Core: ARM Cortex-M0 + Dual-Core 133Mhz
SRAM memory: 264 kB
Flash memory: 2MB
Leads: 40-pin / 23 GPIO digital + 3 ADC pins
Interfaces: 2x UART, 2x I2C, 2x SPI, up to 16 PWM channels
Supply voltage: 5V (USB)
Working voltage of the logical part: 3.3V
Power/data connector: microUSB
Dimensions(mm): 51.3x21x12.9
