Raspberry Pi Camera Module 3 NoIR | Wide | Standard

Camera Module 3 is available in standard (visible-light-only) and infrared-sensitive (NoIR) variants, with either a standard (75°) or wide-angle (120°) lens, giving you more options for your specific project needs. It can be used to take full HD video as well as stills photographs and features an HDR mode up to 3 megapixels. The module is capable of 4608x2592 pixel images and 4608x2592 @14 FPS/2304x1296 @56 FPS/1536x864 @120FPS video. When HDR is enabled, the resolution is limited to 2304x1296 @ 30 FPS.

The small size and light weight of this module make it ideal for mobile or other applications where size and weight are important. Suitable applications include CCTV security cameras, motion detection, time-lapse photography, etc.

The Raspberry Pi Camera Module 3 with a Wide-Angle (120°) Lens features:

• Wide-angle lens
• Powered autofocus
• Improved low-light sensitivity
• High dynamic range (HDR) support
• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3-megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism

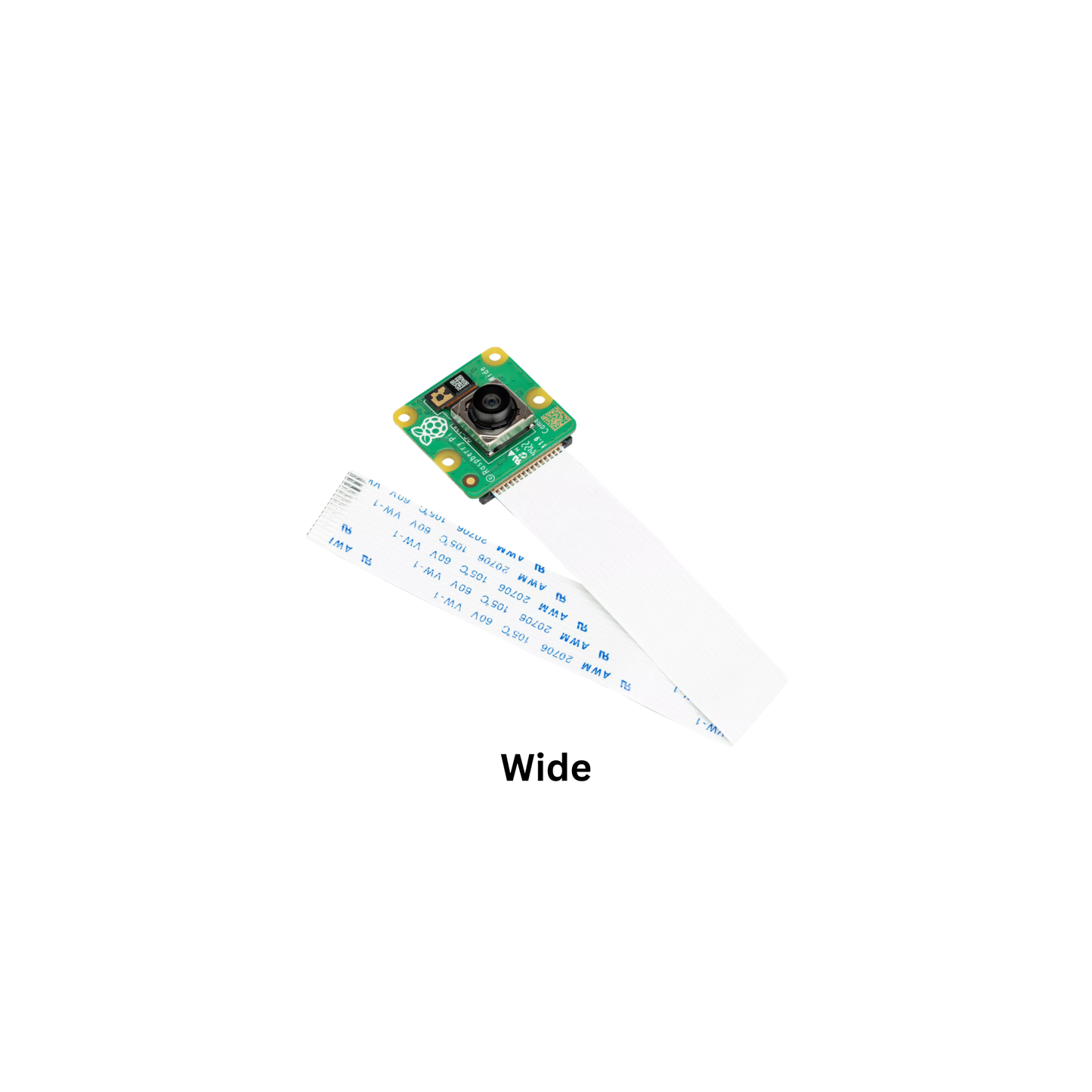

The Raspberry Pi Camera Module 3 with a Standard (75°) Lens features:

• Standard lens
• Improved low-light sensitivity
• High dynamic range (HDR) support
• Powered autofocus
• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3-megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism

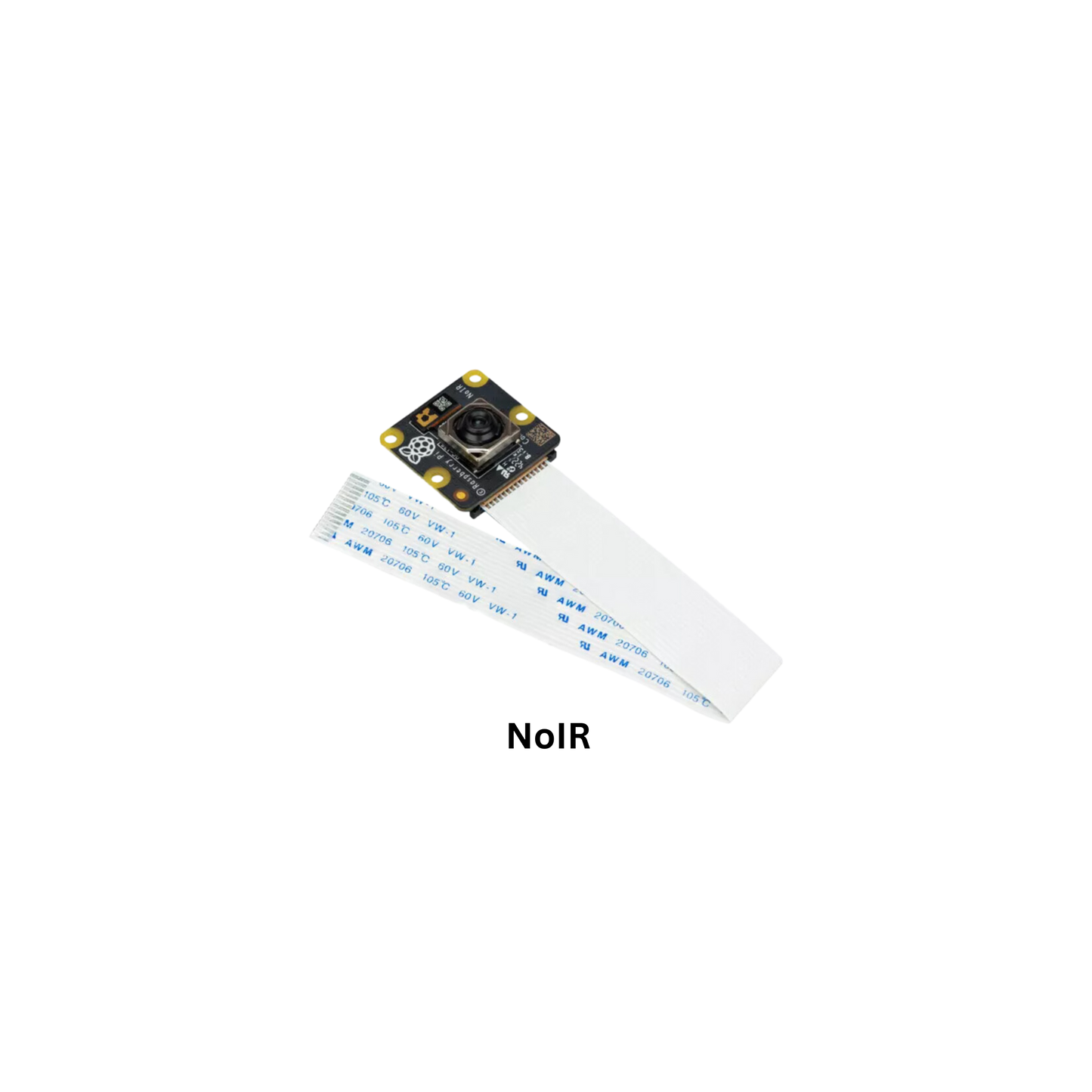

The Raspberry Pi Camera Module 3 (NoIR) with a Standard (75°) Lens features:

• Infrared-sensitive (NoIR)
• Standard lens
• Improved low-light sensitivity
• High dynamic range (HDR) support
• Powered autofocus
• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3-megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism

Specifications:

Sensor	Sony IMX708
Resolution	11.9 MP
Common video modes	1080p50, 720p100, 480p120
IR cut filter	Integrated in standard variants; not present in NoIR variants
Autofocus system	Phase Detection Autofocus
Dimensions	25 x 24 x 11.5 mm (12.4 mm height for Wide variants)

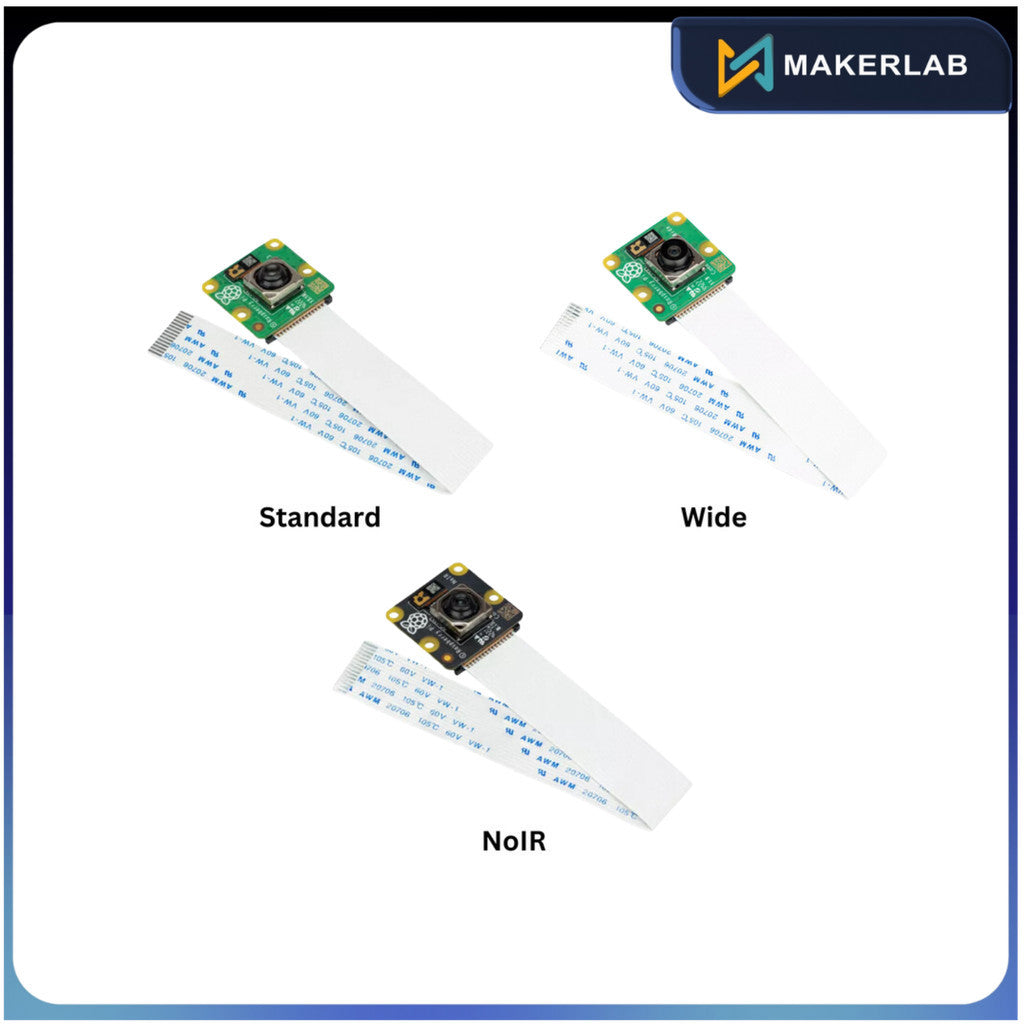

Variants of Raspberry Pi Camera Module 3

	Camera Module 3	Camera Module 3 NoIR	Camera Module 3 Wide
Focus range	10 cm - ?	10 cm - ?	5 cm - ?
Focal length	4.74 mm	4.74 mm	2.75 mm
Diagonal field of view	75 degrees	75 degrees	120 degrees
Horizontal field of view	66 degrees	66 degrees	102 degrees
Vertical field of view	41 degrees	41 degrees	67 degrees
Focal ratio (F-stop)	F1.8	F1.8	F2.2
Infrared-sensitive	No	Yes	No
