Pololu USB AVR Programmer v2.1 | 3172

The Pololu USB AVR Programmer v2.1 is a compact, low-cost in-system programmer (ISP) for AVR microcontrollers from Atmel (now a part of Microchip). The programmer provides an interface for transferring a compiled AVR program from your computer to the target AVR’s non-volatile memory, allowing it to run the program. It is a good solution for programming AVR-based controllers like our A-Star 328PB Micro and Orangutan robot controllers. It can also be used to update, replace, or remove the bootloader on some Arduino boards including the Uno, Leonardo, and Mega, and also on our Arduino-compatible A-Star controllers. This programmer is designed to work well with both 3.3 V and 5 V devices, and it can even be configured to provide power to the target device in low-power systems.

Features and specifications
Connects to a computer through USB via a USB A to Micro-B cable (not included)
Emulates an STK500 programmer through virtual COM port interface
Works with standard AVR programming software, including Microchip Studio, AVRDUDE, and the Arduino IDE
Configuration software available for Windows, Mac OS X, and Linux
Supports both 3.3 V and 5 V devices; can automatically switch operating voltage based on detected target VCC
Can optionally power the target at 3.3 V or 5 V in low-power systems
USB-to-TTL serial adapter functionality for general-purpose serial communication
Provides a 100 kHz clock output, which can be useful for reviving misconfigured AVRs
All I/O pins are protected with 470 ? resistors

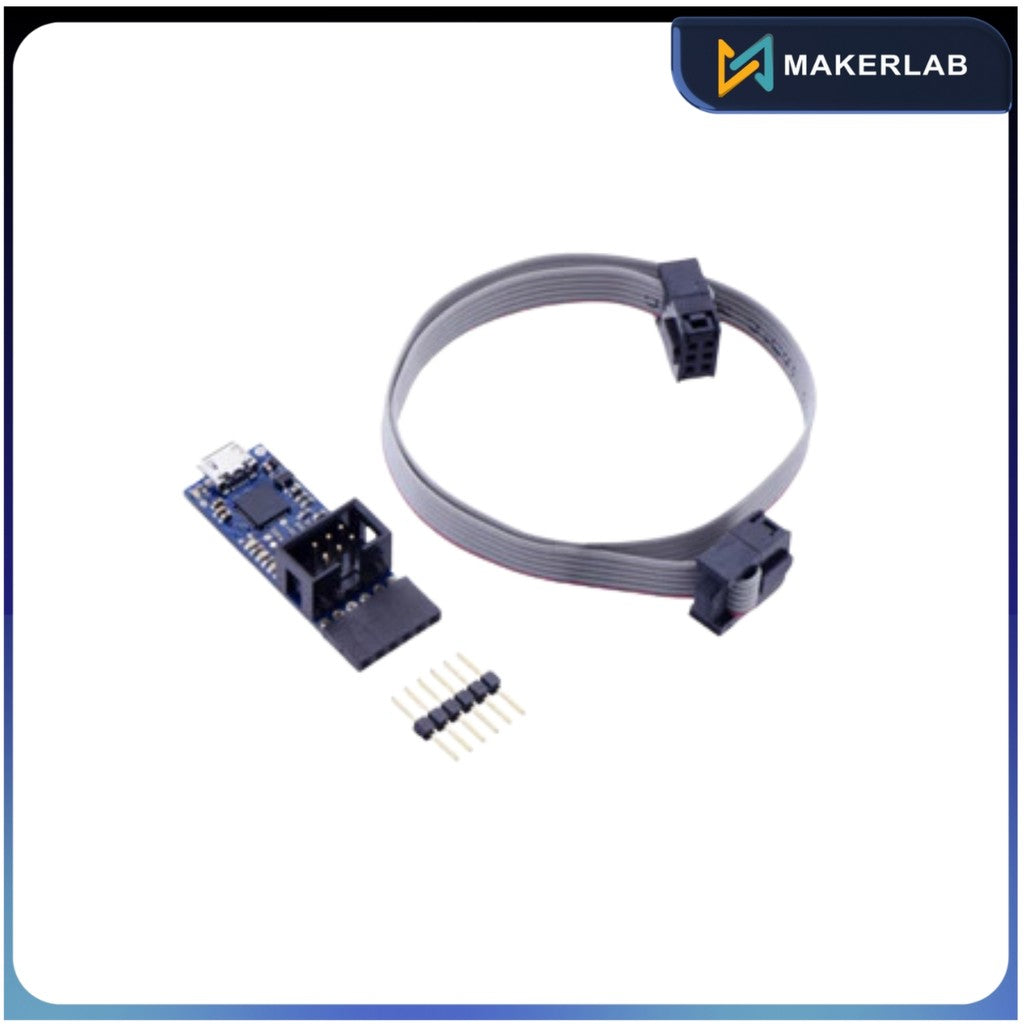

6-pin ISP cable and a 1×6 double-sided male header included
