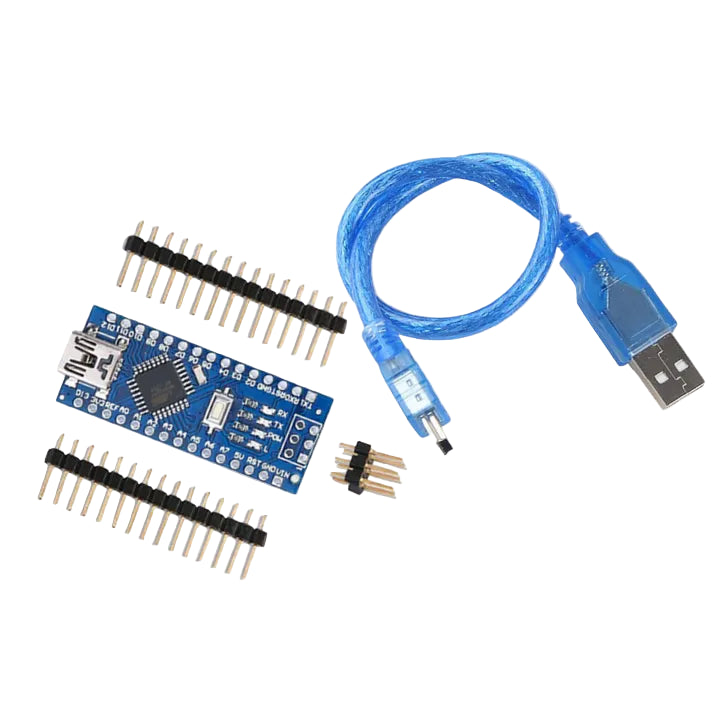

Nano ATmega328P CH340G Unsoldered based on Arduino® with cable

This Arduino Nano ATmega328P CH340G is a small, complete, and breadboard-friendly board based on the ATmega328. It is fully compatible with the official Arduino board.

Specifications:

• Microcontroller: ATmega328
• Operating Voltage (logic level): 5V
• Input Voltage (recommended): 7-12V (5V if bypassing the onboard voltage regulator)
• Input Voltage (limits): 6-15V
• Digital I/O Pins: 14 (6 with PWM)
• Analog Inputs: 8
• DC Current per I/O Pin: 40ma (max of 200ma across all pins)
• Flash Memory: 32kb (2kb used by bootloader)
• SRAM: 2kb
• EEPROM: 1kb
• Clock Speed: 16mhz

Note: use an updated version of Arduino IDE.

• USB Type: Micro USB/Type-C USB
• CH340G Replace FT232RL
• 8 analog inputs ports:A0 ~ A7
• 14 Digital input / output ports:TX,RX,D2 ~ D13
• 6 PWM ports:D3, D5, D6, D9, D10, D11
• 1 pairs of TTL level serial transceiver ports RX / TX
• Using Atmel Atmega328P-AU MCU
• There is bootloader installed in it
• Support USB download and Power
• Support for external 5V ~ 12V DC power supply
• Support power supply by 9V battery
• Support ISP download

Specification:

• Microcontroller: Atmel Atmega328P-AU MCU Architecture: AVR
• Operating Voltage (logic level)：5 V Input Voltage (recommended)：7-12 V Input Voltage (limits)：6-20 V Digital I/O Pins：14 (of which 6 provide PWM output)
• Analog Input Pins：8 DC Current per I/O Pin：40 mA
• Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader SRAM：2 KB (ATmega328) EEPROM：1 KB (ATmega328)
• Power Consumption: 19 mA Clock Speed：16 MHz
• Weight: 7 g
• Support USB download and Power Support for external 5V ~ 12V DC power supply
• Supports power supply by 9V battery Support ISP download

PCB Size: 18 x 45 mm
