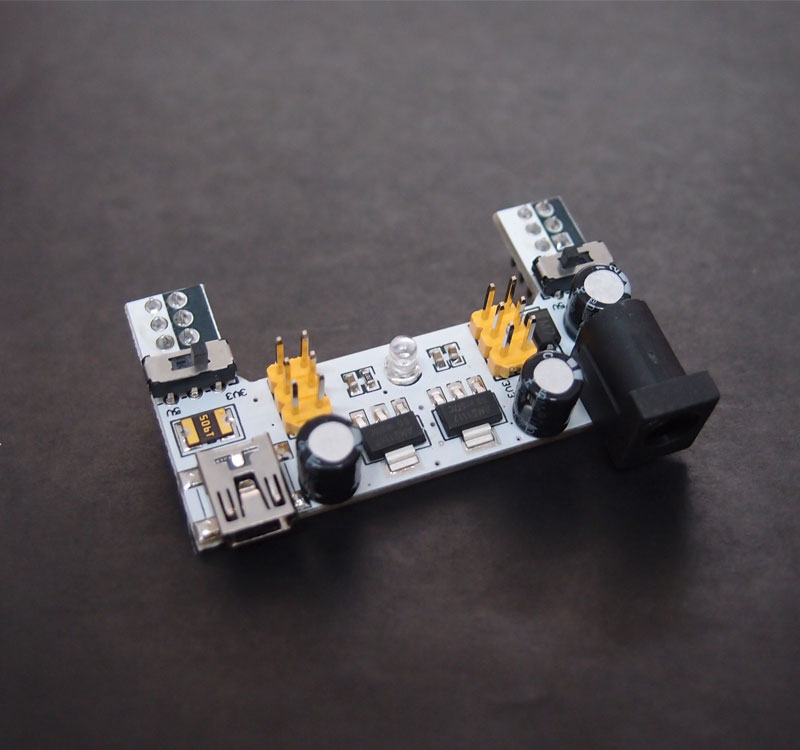

MB102 Breadboard Power Supply Module 3.3V-5V Mini USB

With USB-Mini-Connector and PowerSupply-Connector.

On the upper side of the board you'll find 3 Pins with 5V and 3 Pins with 3.3V, together with the 6 corresponding GND-Pins.

On the lower side, there is a total of 6 Pin-Pairs with either 3.3V or 5V, selectable with a switch. Using this Board, you will never run out of power anymore, no matter if you're working with 3.3V, 5V or both!

With this power adapter you can select 3.3V and 5V for the two power rails of your breadboard independent, which makes it perfect for mixed voltage projects.

Features:

• Apply to MB102 breadboard
• Input voltage: 6.5-12 V (DC) or USB power supply
• Output voltage: 3.3V/5V can switch over
• Maximum output current: <700 ma
• Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
• On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
• Size 53mm x 36mm
