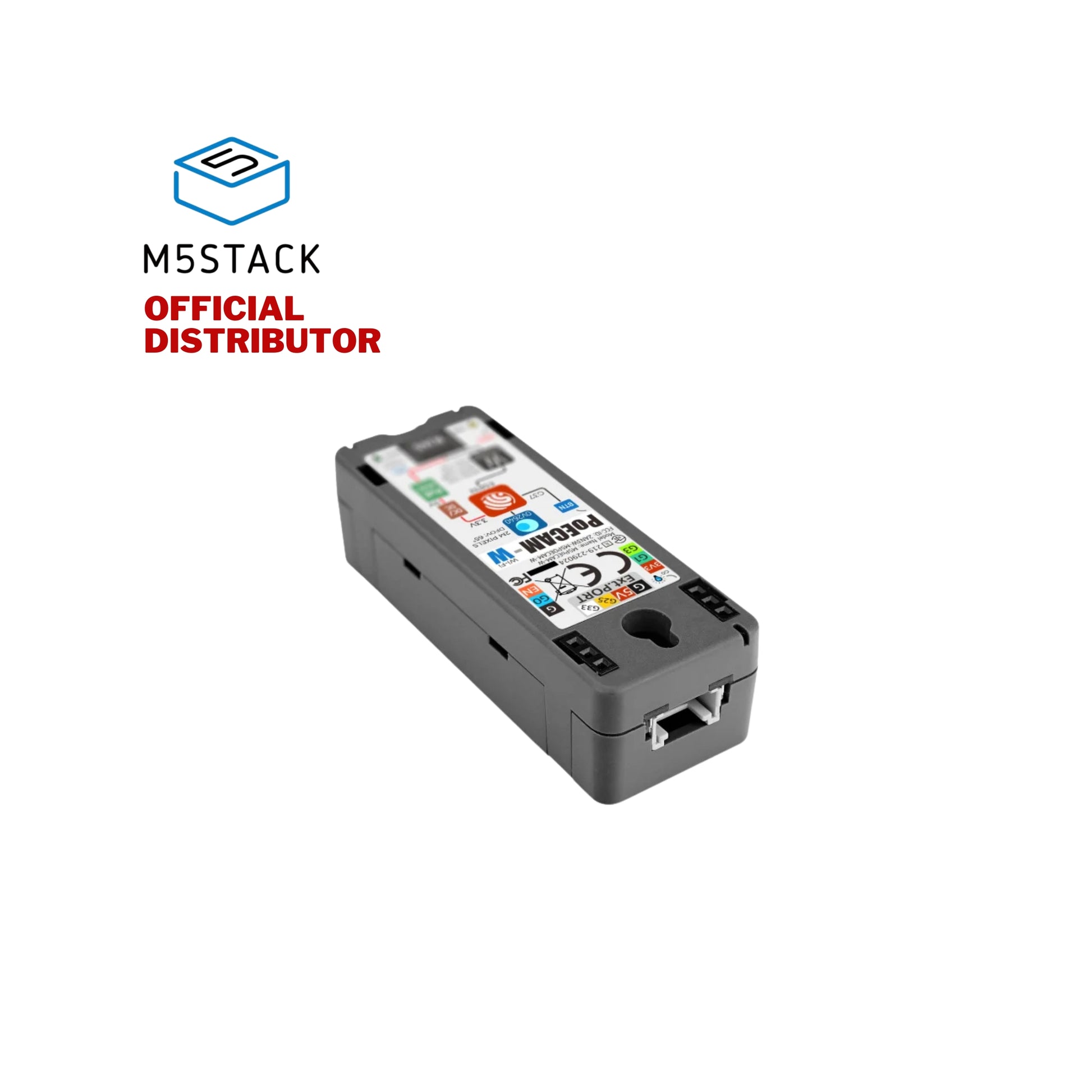

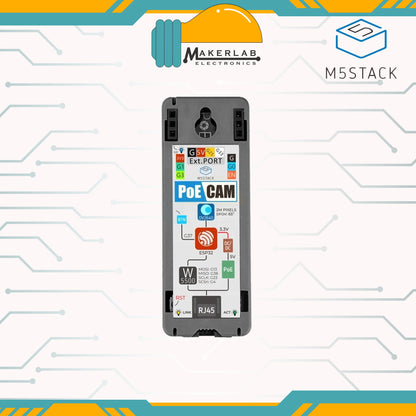

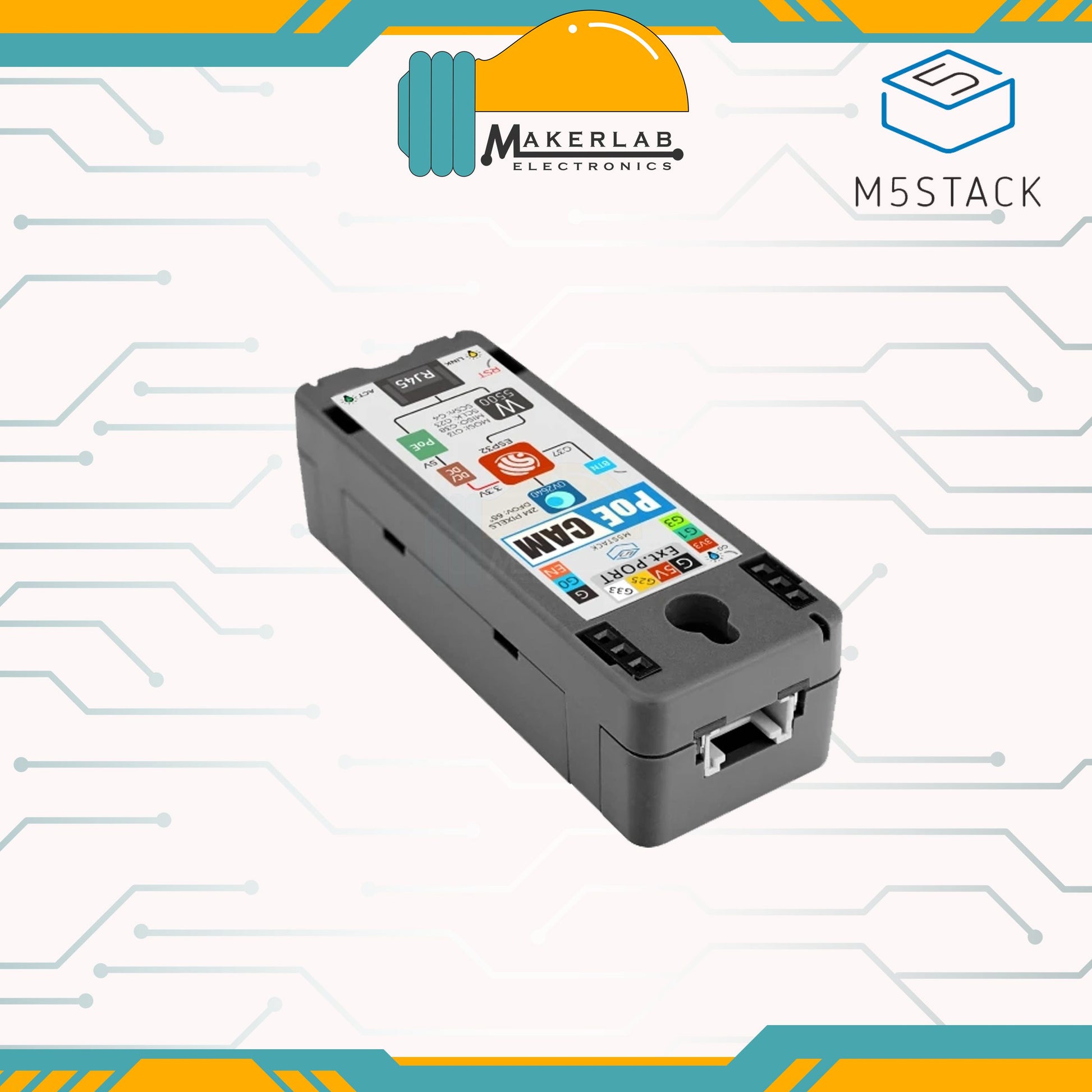

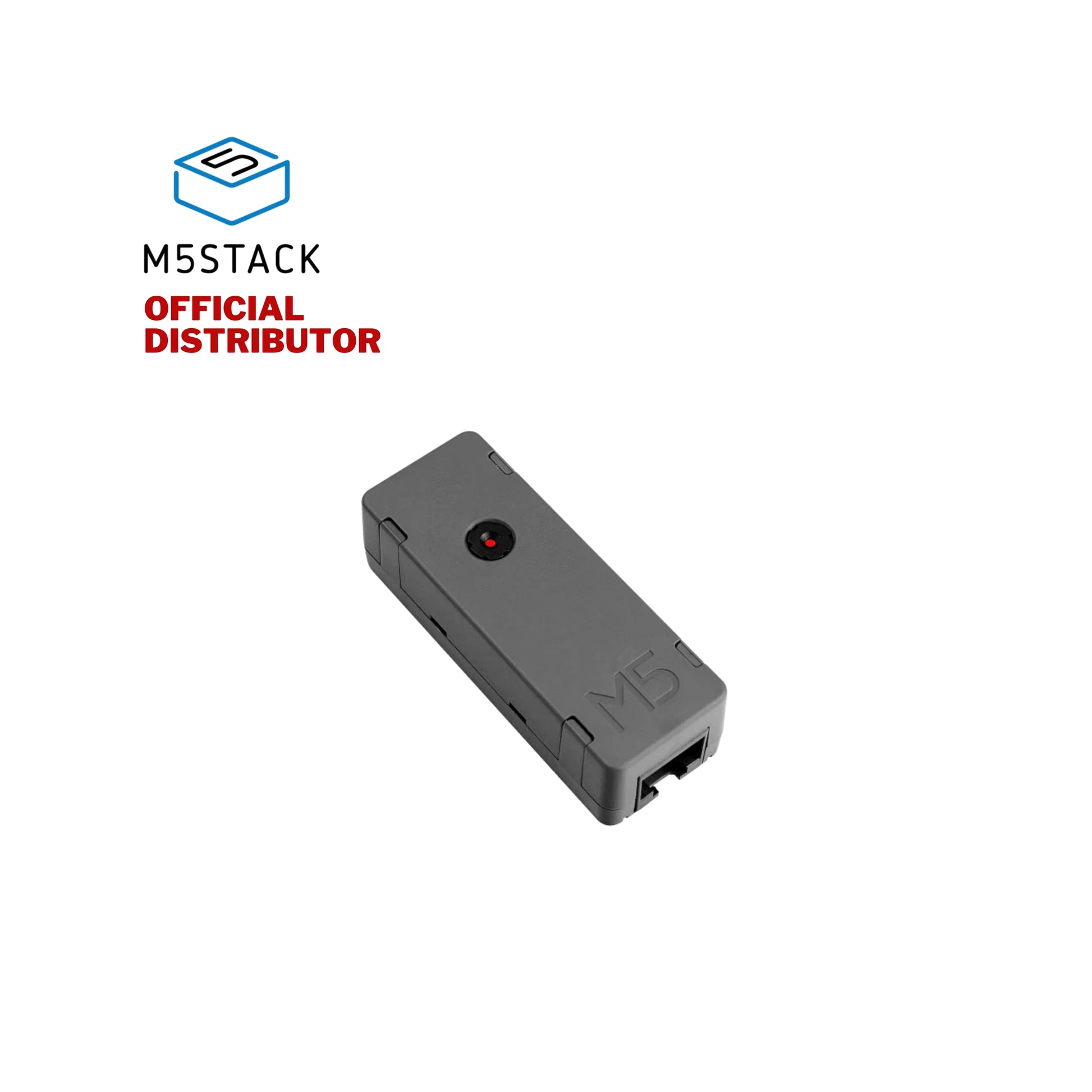

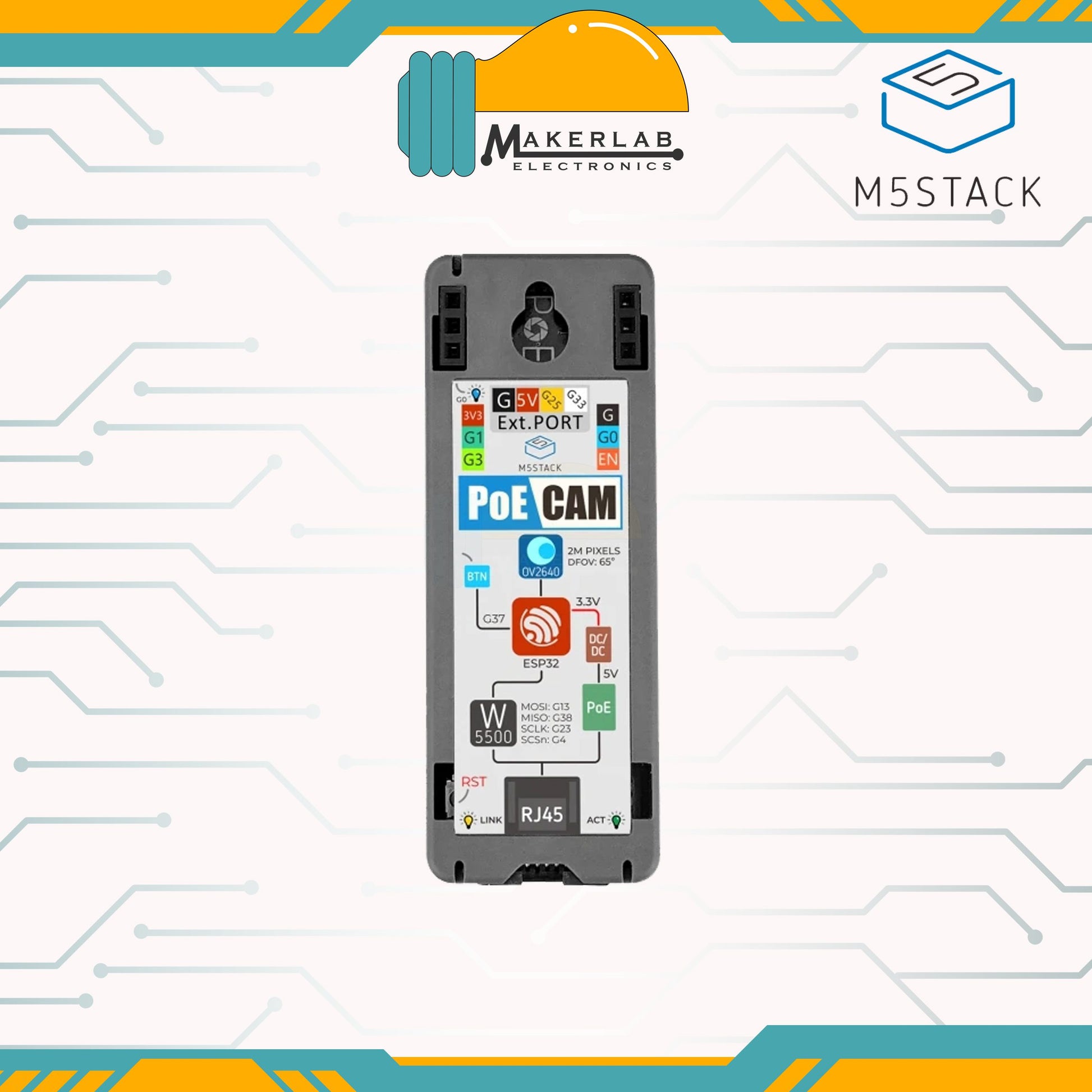

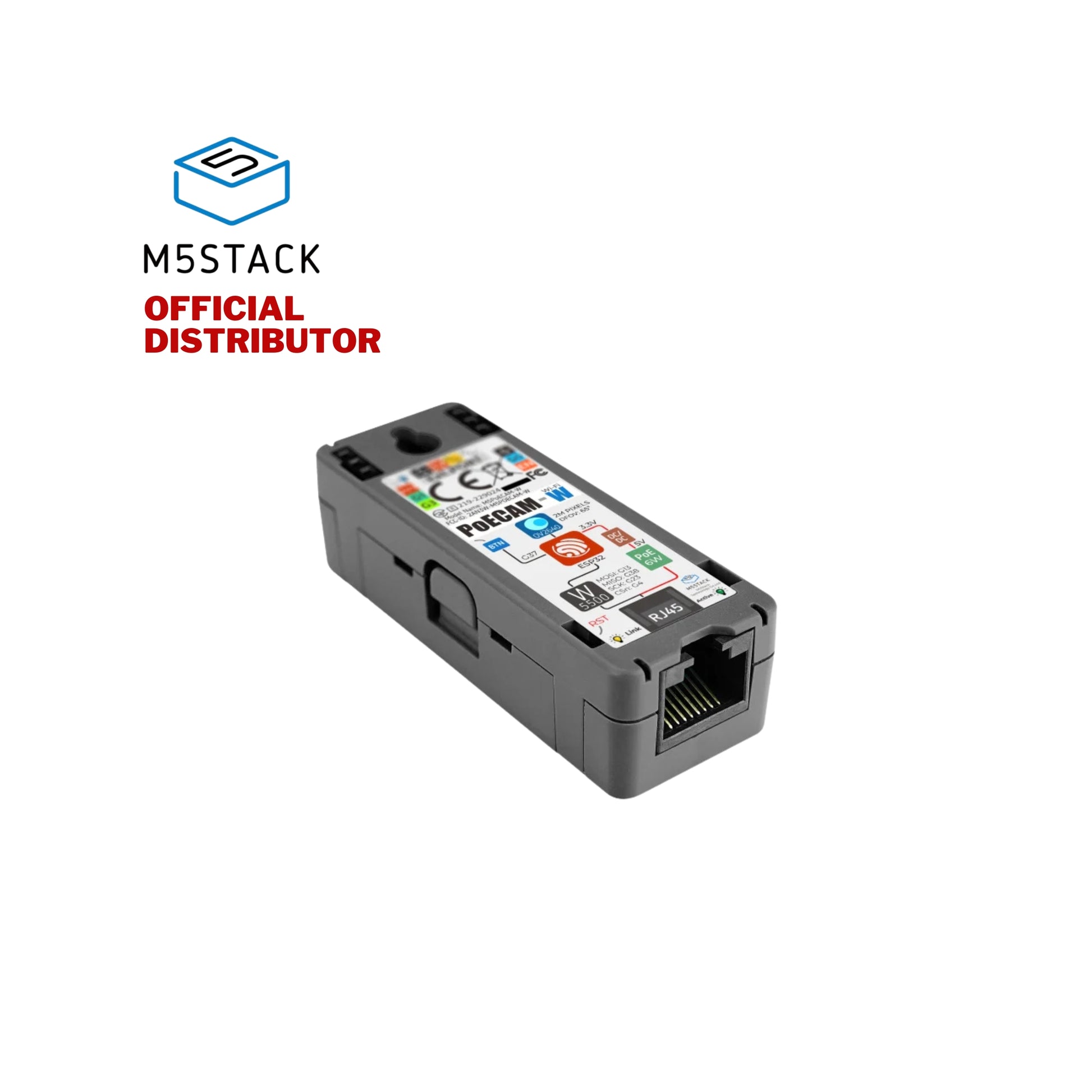

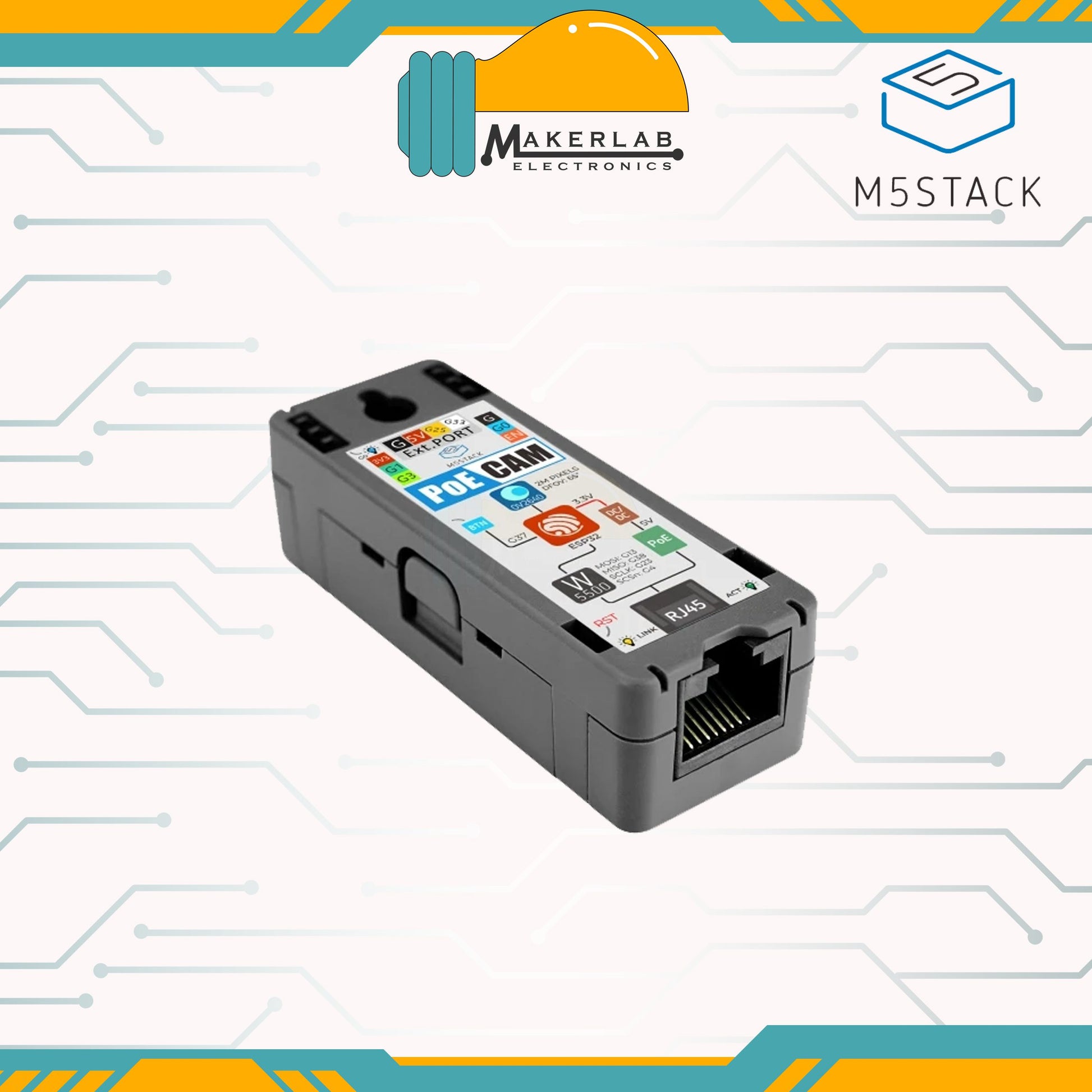

M5Stack PoE Camera w/o Wi-Fi

Description:

PoECAM-W is an open source fully programmable camera integrating PoE (Power Over Ethernet) and Wi-Fi. This item is ESP32 based webcam with W5500 embedded Ethernet controller, plus 2M pixel image sensor OV2640. Poe camera-W is equipped with a combination of 8MB PSRAM + 16MB Flash large memory. This teeny tiny with flexible power supply, you can get stable image by connecting the network cable in just 2 steps. It's wonderful for you to monitor warehouse, auto image acquisition, etc.

Features:

• Built-in ESP32 MCU（support WIFI）
• 2 million pixel camera 0V2640
• Ethernet chip W5500
• LAN speeds up to 10M or 100M (depending on the line provided)
• PoE IEEE802.3 AF specification（Maximum power 6W）
• Built-in prompt LED light
• Development platform:Arduino、ESP-IDF
• Ethernet standard interface RJ45
• Standard LEGO interface and camera mount

Specification:

• MCU: ESP32-D0WDQ6-V3
• Camera Module: OV2640
• Ethernet Chip: W5500
• FLASH: 16MB
• PSRAM: 8MB
• Pixel Size: 2.2 µm x 2.2 µm
• Automatic image control functions: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
• Supports Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• DFOV: 65°
• Output Formats（8-bit):
    • YUV(422/420)/YCbCr422
    • RGB565/555
    • 8-bit compressed data
    • 8-/10-bit Raw RGB data
• Ethernet interface specifications: RJ45
• MAXIMUM POWER: 6W
• Product Size: 64mm × 24mm × 18mm
• Package Size: 80mm × 37mm × 32mm
• Product Weight: 38g
• Package Weight: 45g

Applications:

• Warehouse monitoring
• Timed photograph
• Machine vision
• Smart home monitoring

Part List:

• 1 x PoECAM-W

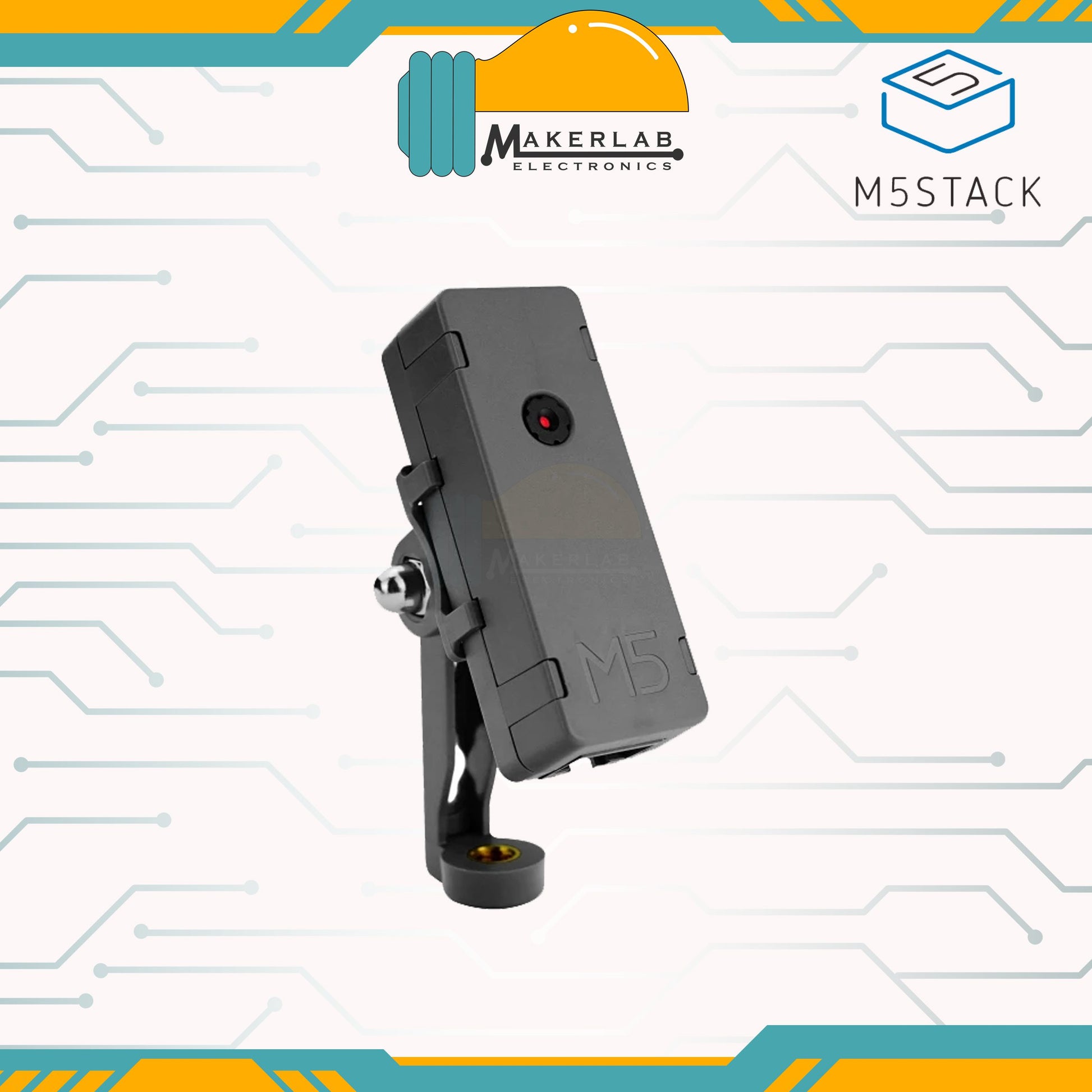

• 1 x Camera mount clip

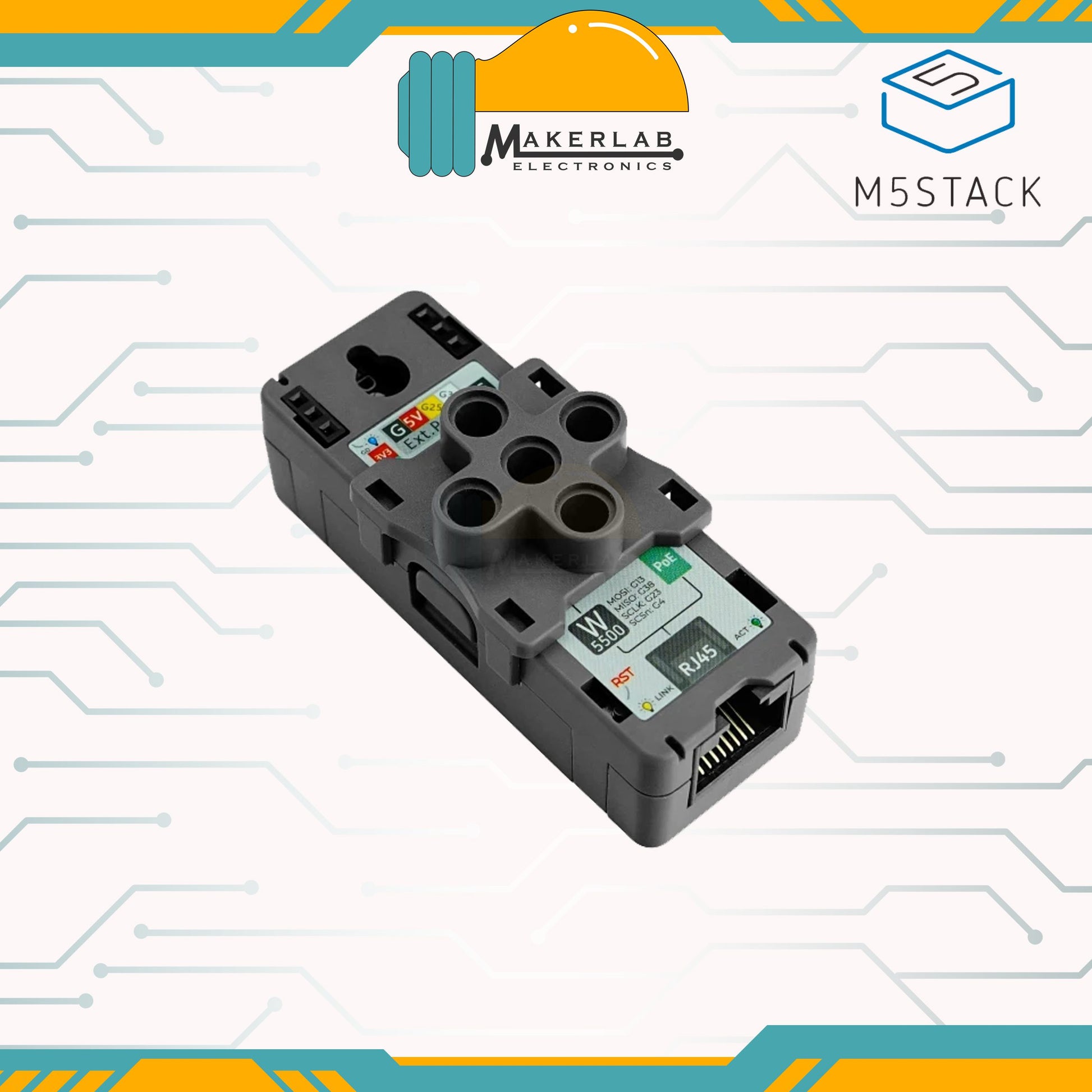

• 1x Brick compatible clip
