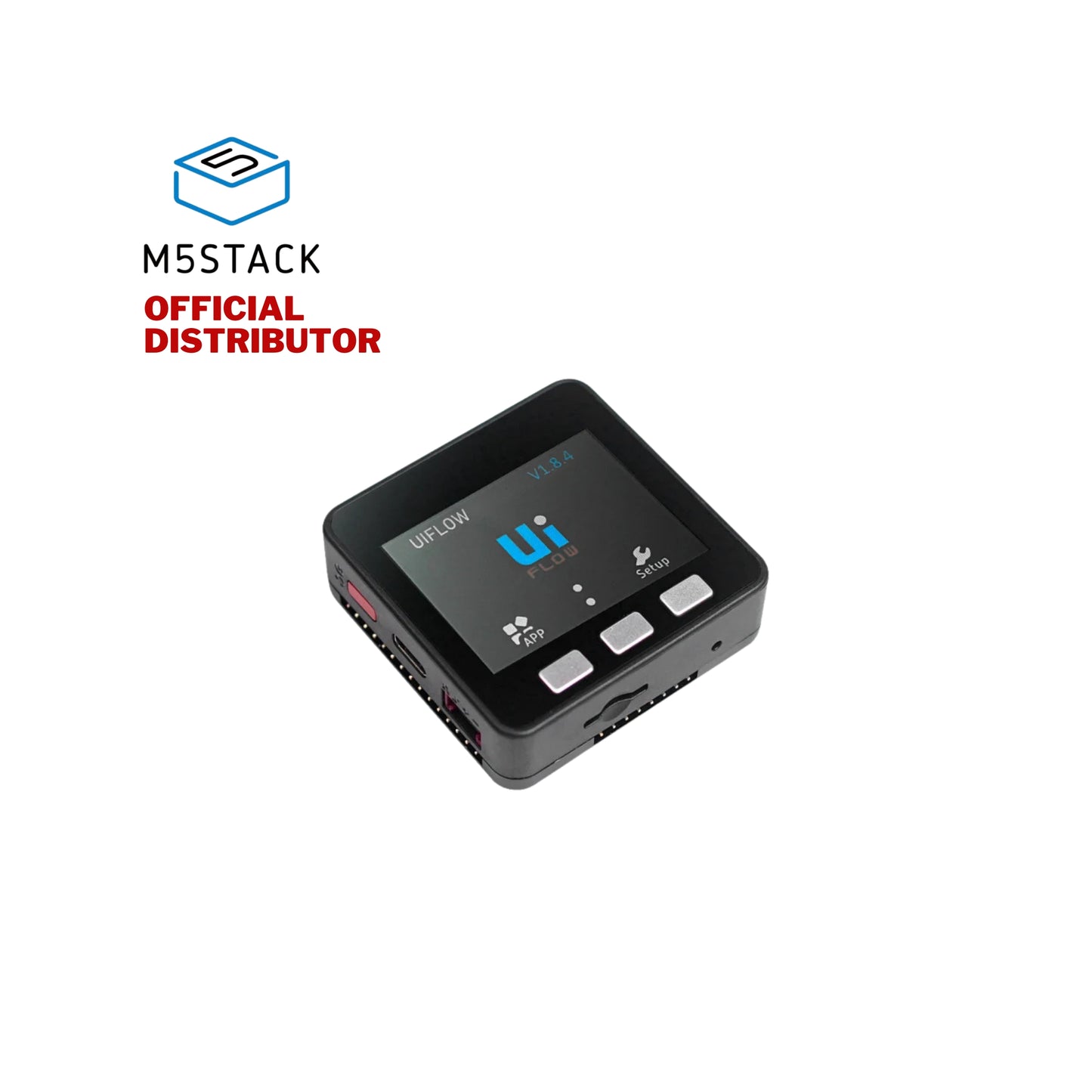

M5Stack ESP32 Basic Core IoT Development Kit V2.6

BASIC is a cost-effective entry-level IoT main controller. It adopts Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with main frequency up to 240MHz. Built-in 16M FLASH memory, integrated 2.0-inch full-color HD IPS display panel, speaker, TFCard slot and other peripherals. The full-coverage housing ensures circuit stability even in complex industrial applications. Internal provides a variety interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. Ideal for a variety of product prototyping, industrial control, intelligent building application.

• High productization:
  • Exquisite designs, Prototyping right into products
  • Product-grade full-coverage cover for more stable circuit operation
• Low Code Development:
  • Support UIFlow graphical programming platform, scripting-free, cloud push
  • Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
  • Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.
• High Integration:
  • 2.0 inch IPS display panel, speakers, custom buttons x3
  • Built-in lithium battery power, integrated power management chip, support TypeC interface
  • Finely tuned RF circuit for stable and reliable wireless communication
• Strong Expandability:
  • 15x IO leads
  • Easy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion

Power on/off operation:
Power on: Click the red power button on the left
Shutdown: Quickly double-click the red power button on the left
*USB power supply *: By default, when USB is powered, it cannot be shut down

Driver Installation

Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP210X (for CP2104 version)/CP34X (for CH9102 version) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure which USB chip your device uses, you can install two drivers at the same time. During the installation process of CH9102_VCP_SER_MacOS, an error may occur, but the installation is actually completed, just ignore it.)

Product Features

• Based on ESP32 development
• 16M FLASH
• Integrated full-color high-definition IPS display panel and a variety of hardware peripherals
• Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.

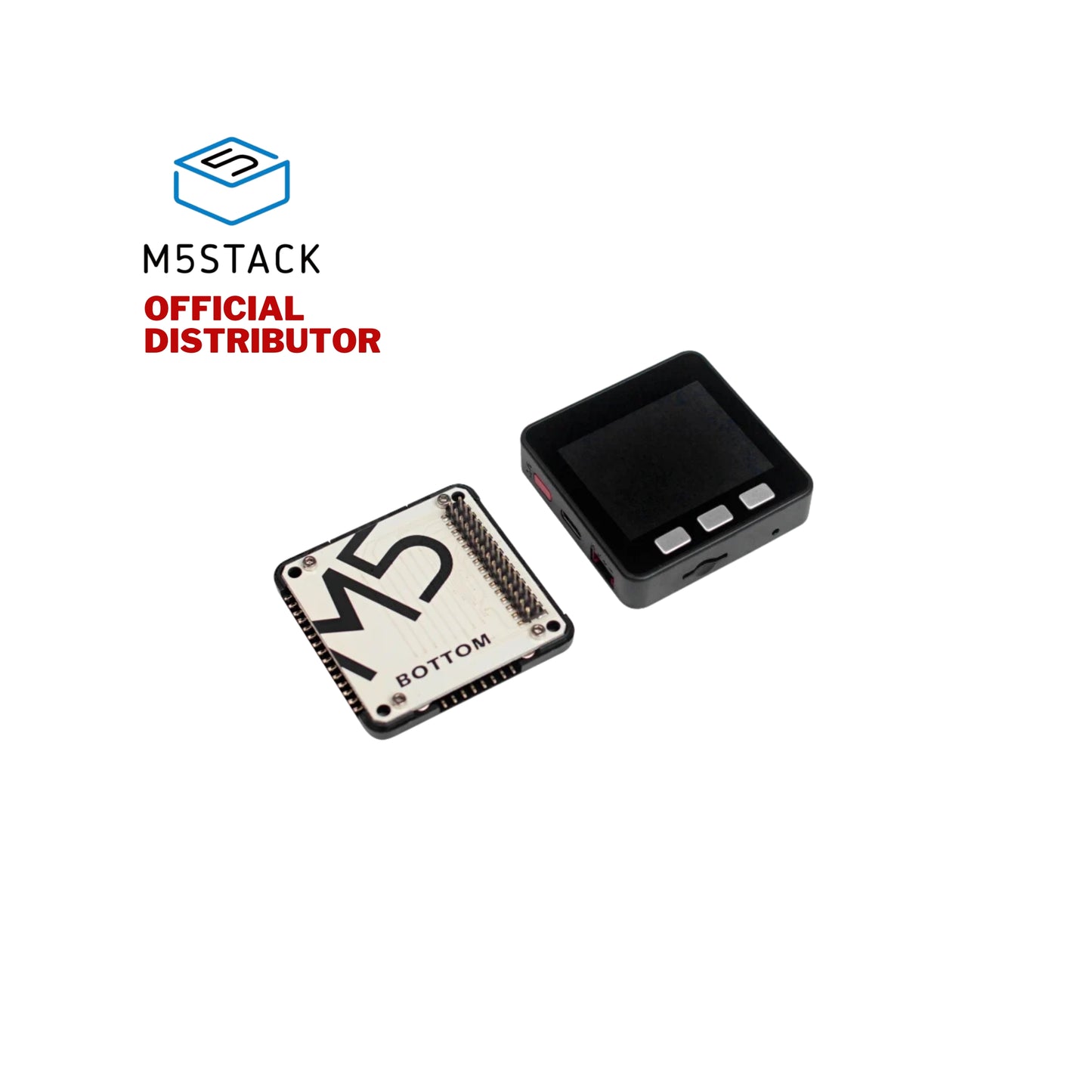

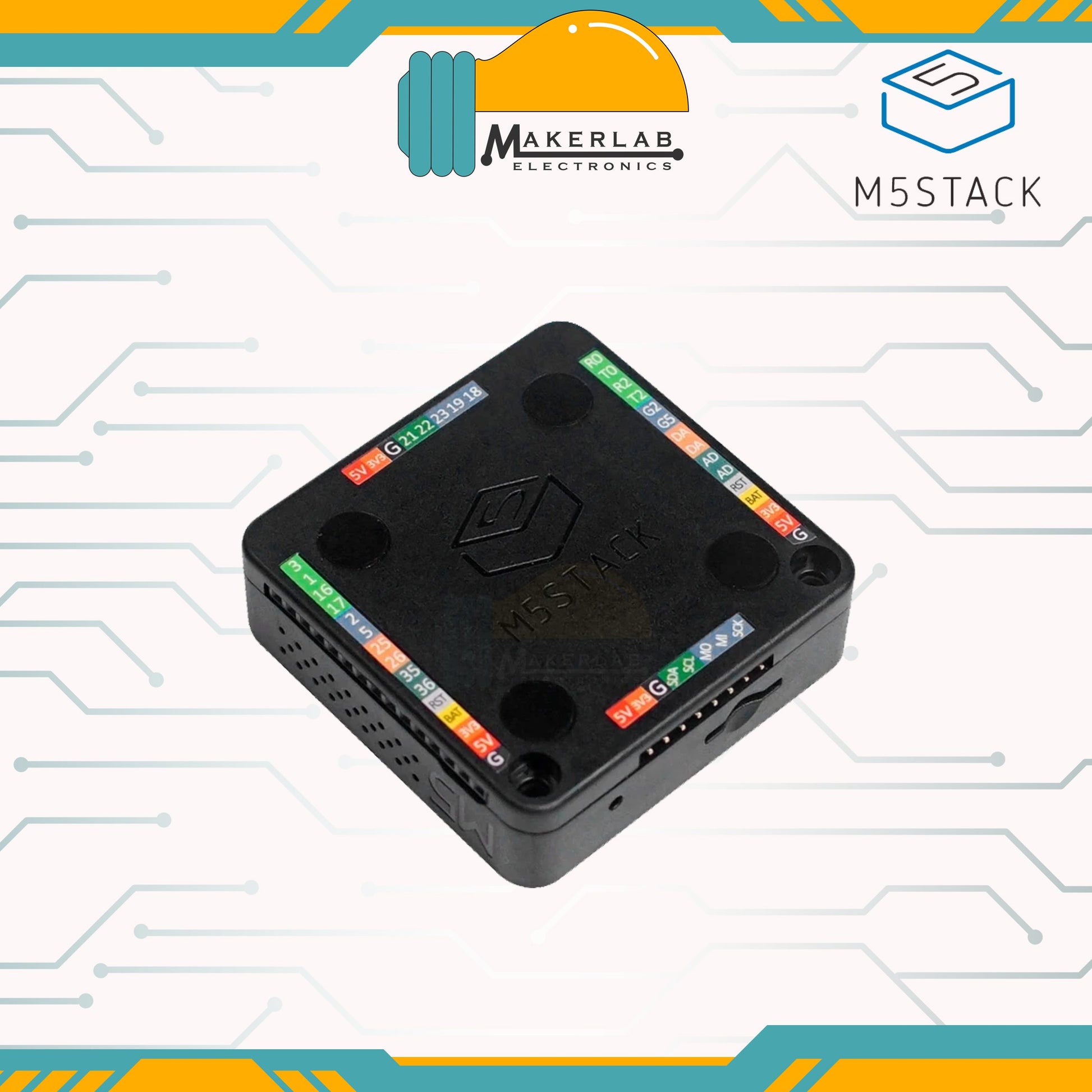

• Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
• Compatible with multi-platform development:
  • UIFlow
  • MicroPython
  • Arduino

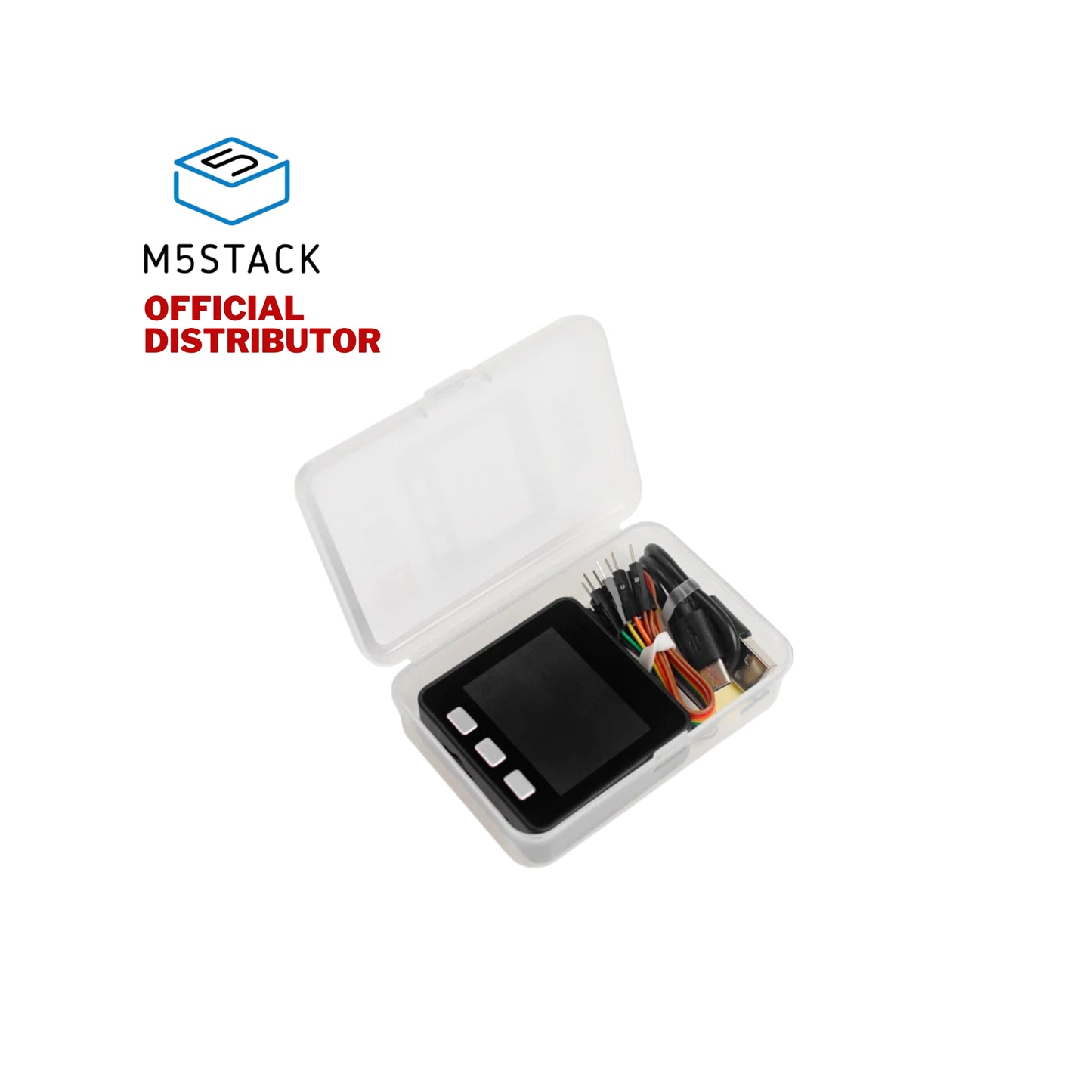

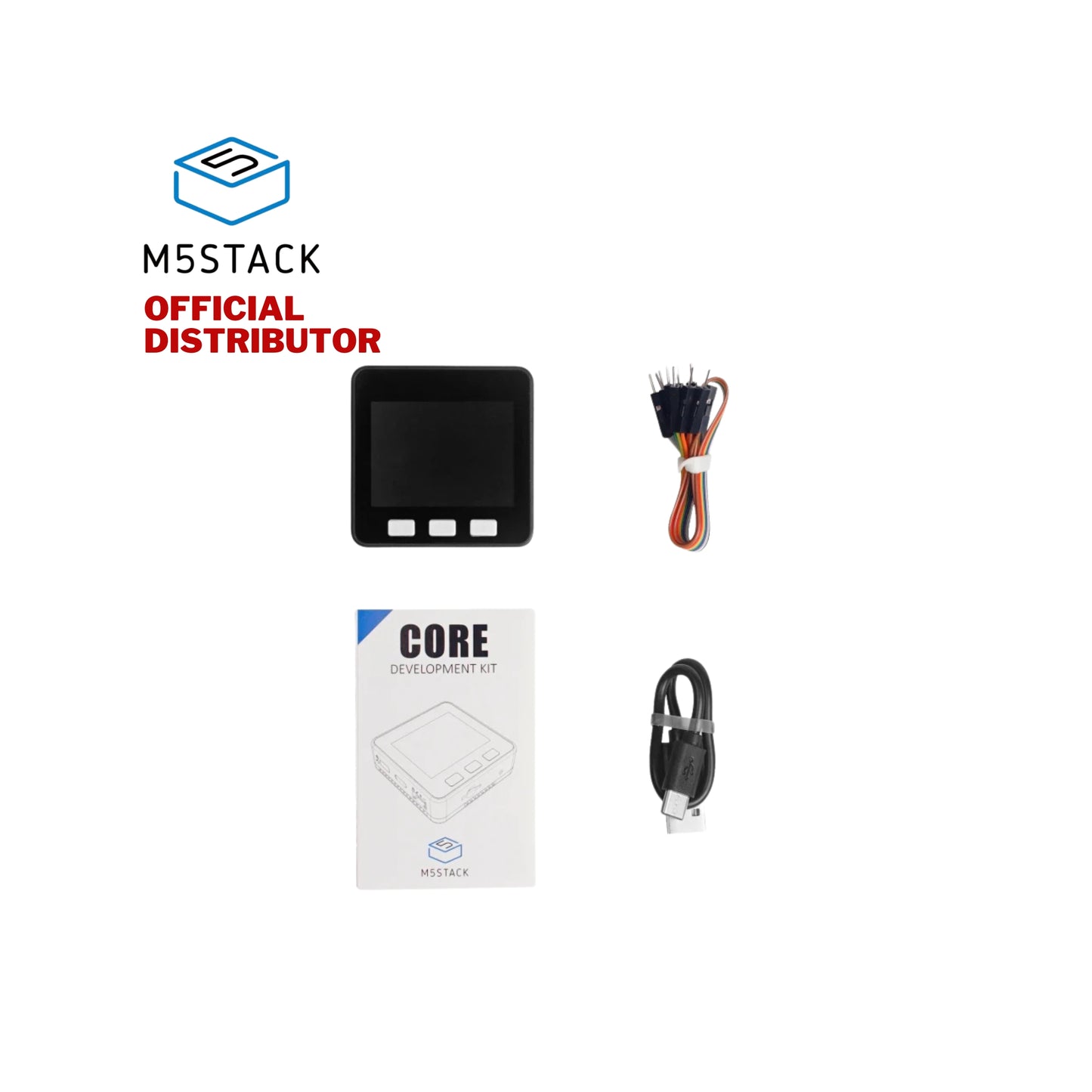

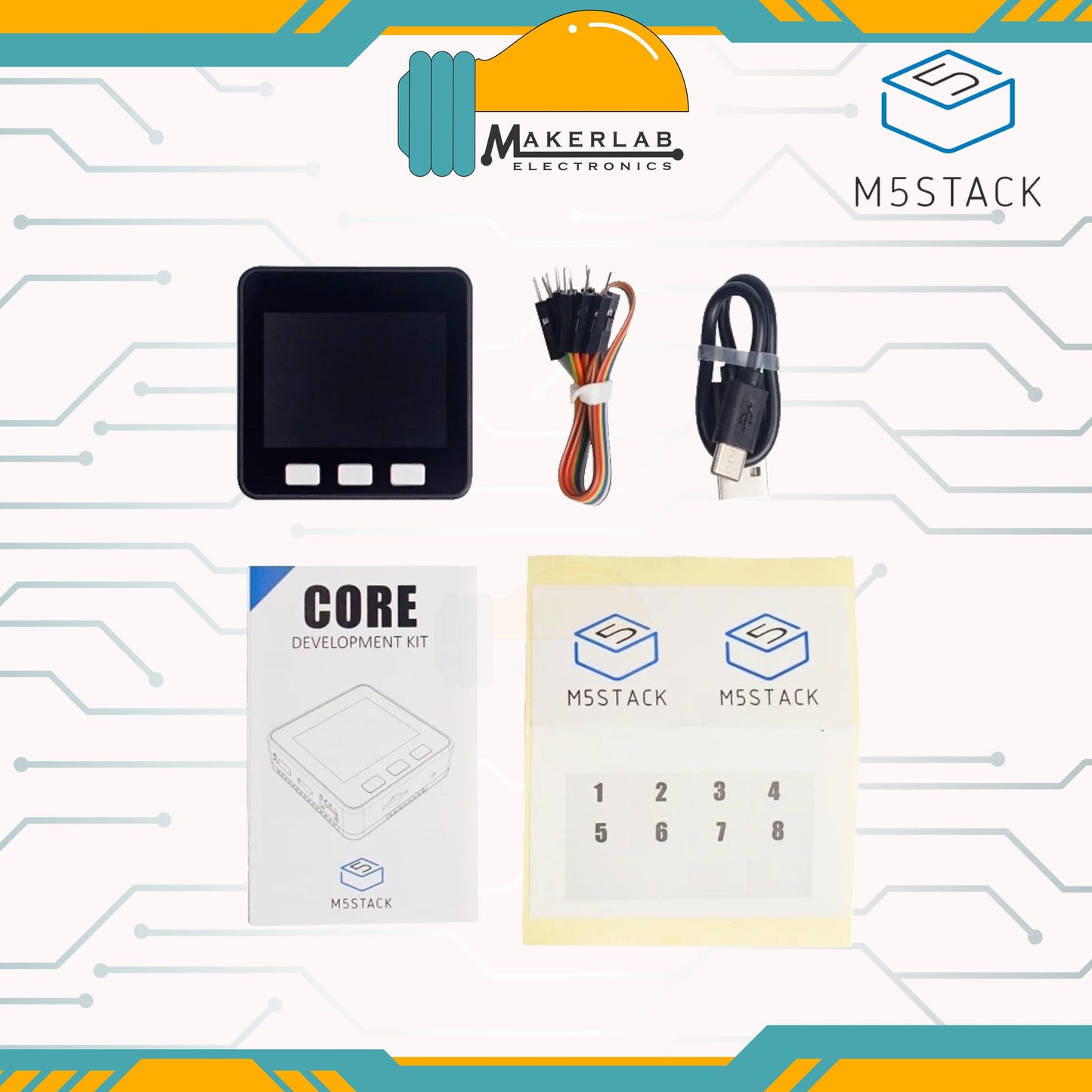

Included

• 1x BASIC
• 10x Dupont line
• 1x Type-C USB(20cm)
• 1x manual
• 1x sticker

Application

• IoT Controller
• DIY creator works
• Smart home control

Specifications
