SKU:MLE04353

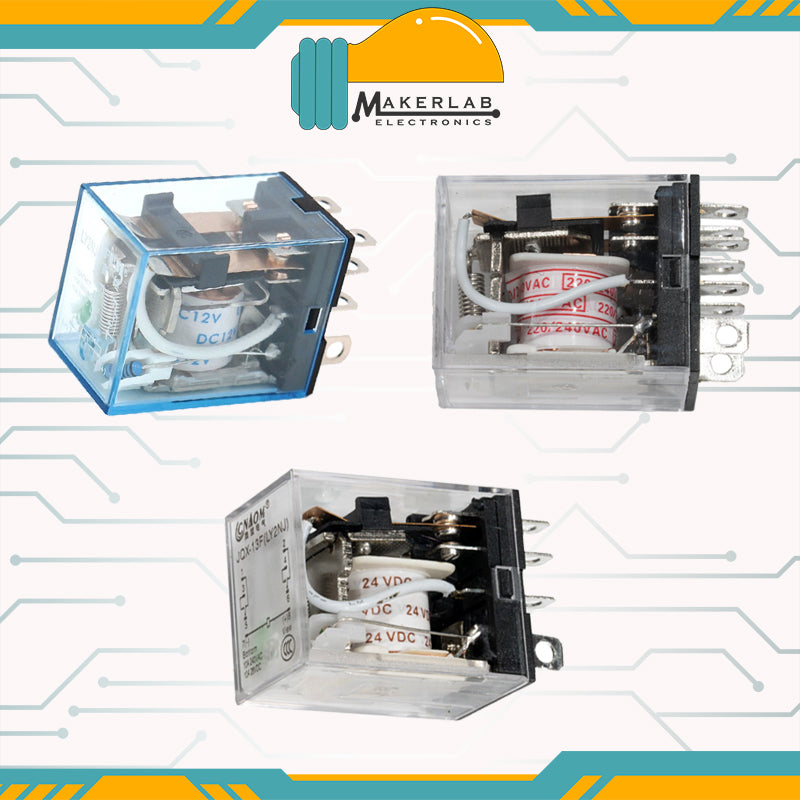

LY2NJ HH62P JQX-13FL Electromagnetic Relay with LED Indicator with base DC 12V | 24V | 220V
₱80.00
₱80.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
In stock
Couldn't load pickup availability
About the Product
Product Description
Model: LY2NJ (8 pins)
Coil voltage: DC12V
Coil Power: DC (W): ?0.9AC (VA): ?1.2
Contact Structure: 8 pins 2 normally open 2 normally closed
Contact capacity: 10A 250VAC
Pull-in voltage: ?80% (V)
Release voltage: DC: ?10% (V), AC: ?30%
Contact resistance: ?50 (m?)
Insulation resistance: ?100 (m?)
Dimensions: 27.5 × 21 × 35.3mm
Terminals form: Socket
Action time: 20ms or less
Reset Time: 20ms or less
Operating frequency: Mechanical 18,000 cycles / hour Electrical 18,000 times / hour
JQX-13F(LY2NJ) Relay 8 Pin Relay 8 Pin Specification
Coil voltage: 24VDC
Contact structure: 8 pins 2 normally open 2 normally closed
Contact capacity: 10A 250VAC
Contact resistance: ?50 (m?)
Insulation resistance: ?100 (m?)
Dimensions: 16 × 25 × 41mm
Action time: 20ms or less
Reset Time: 20ms or less
Operating frequency:
Mechanical 18,000 cycles/hour
Electrical 18,000 times / hour
JQX-13F(LY2NJ) Relay 8 Pin Relay 8 Pin Specification
Coil voltage: 220VAC
Contact structure: 8 pins 2 normally open 2 normally closed
Contact capacity: 10A 250VAC
Contact resistance: ?50 (m?)
Insulation resistance: ?100 (m?)
Dimensions: 16 × 25 × 41mm
Action time: 20ms or less
Reset Time: 20ms or less
Operating frequency:
Mechanical 18,000 cycles/hour
Electrical 18,000 times / hour
Use with the relay base PTF08A
Color may vary.
