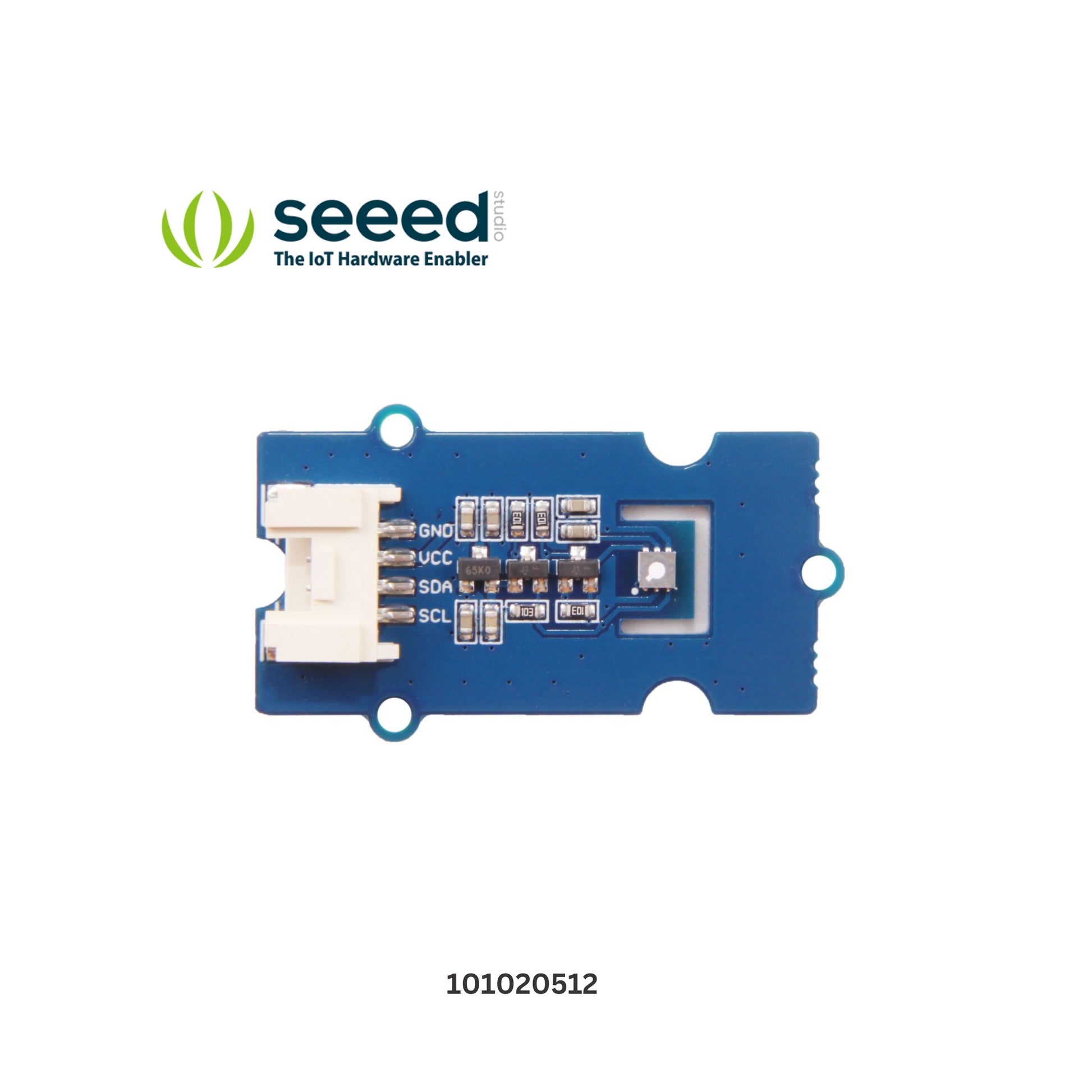

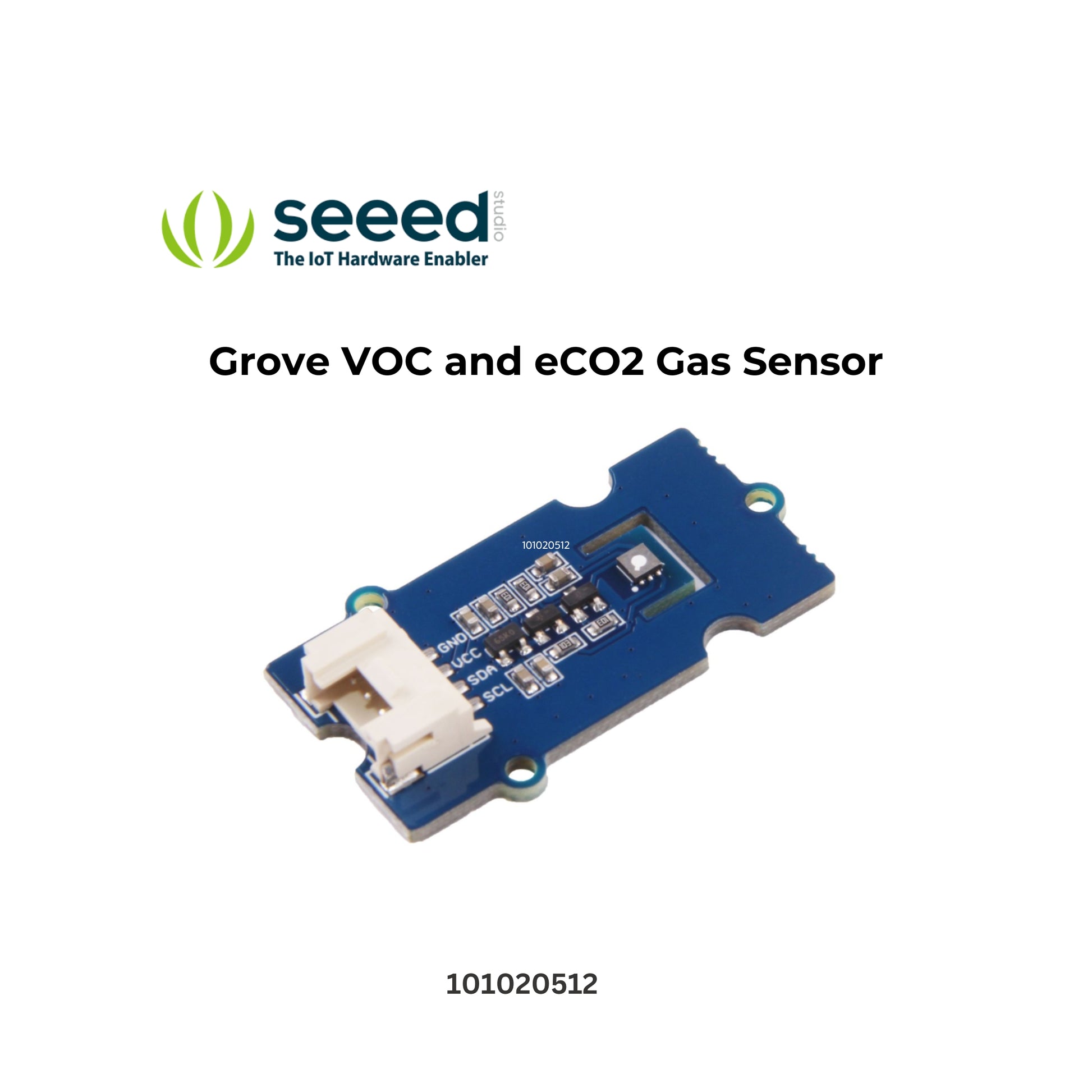

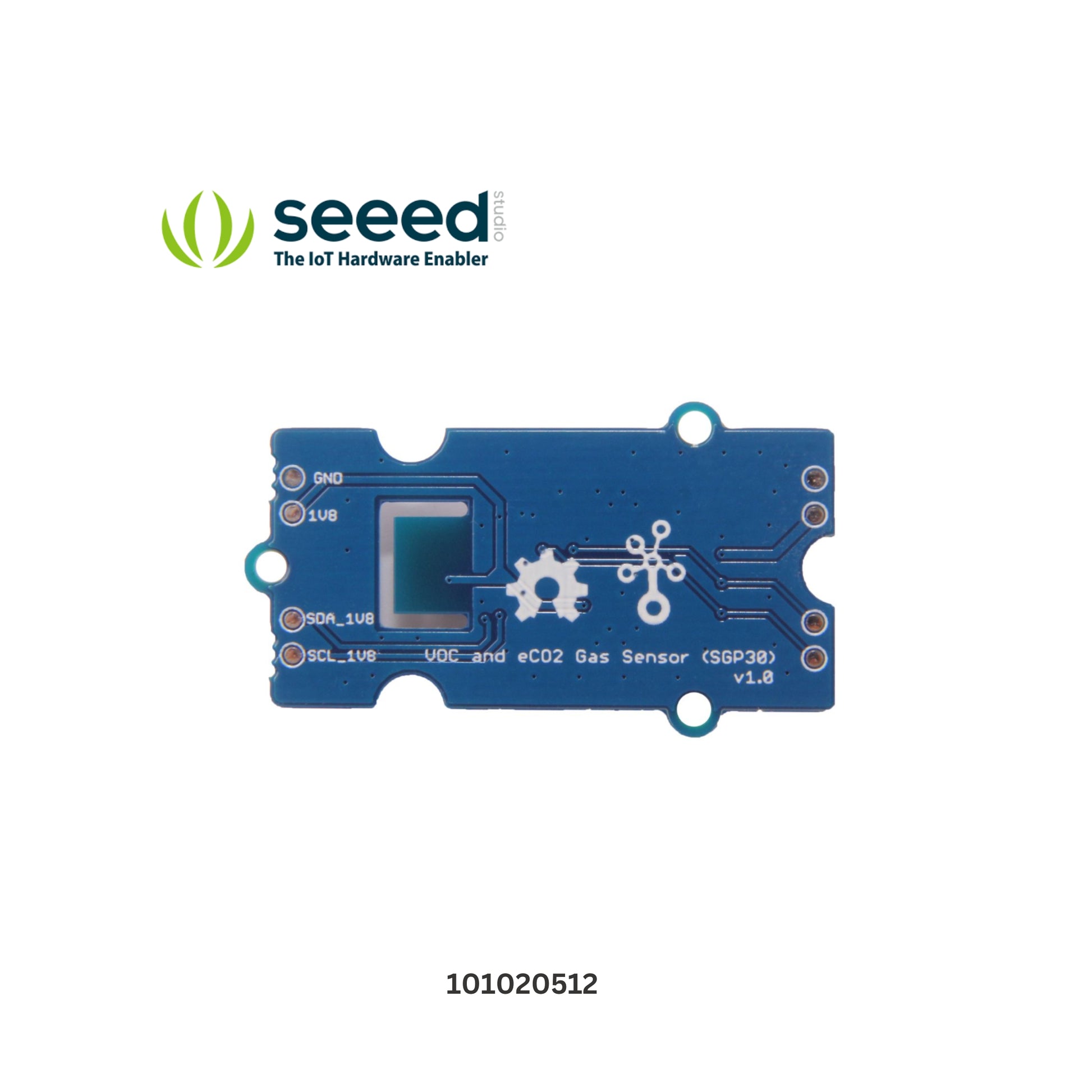

Grove - VOC and eCO2 Gas Sensor - SGP30

The Grove-VOC and eCO2 Gas Sensor SGP30 is an air quality sensor. Based on SGP30, this module provides TVOC (Total Volatile Organic Compounds) and CO2eq output with outstanding long-term stability and low power consumption, which makes it a perfect choice for indoor air quality detection using Arduino or Raspberry Pi.

Features:

Outstanding stability: Dual-channel NDIR technology to detect carbon dioxide concentration

High-performance gas sensor: Sensirion SGP30, a multi-pixel gas sensor for indoor air quality applications

Low power consumption: Supports 48 mA at 1.8V which enables excellent long-term stability

High measurement accuracy: Using dynamic baseline compensation algorithm and on-chip calibration parameters

Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.

Description:

The Sensirion SGP30 is a digital multi-pixel gas sensor that can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about air quality.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.

Application:

Indoor air quality monitoring

Air purifier

Demand-controlled ventilation

New house air condition monitor

Specifications:

Battery: Exclude

Working Voltage: 3.3V/5V

Output Range: TVOC:0 ppb to 60000ppb / CO₂eq:400 ppm to 60'000 ppm

Sampling Rate: 1HZ

IIC Address: 0X58
