SKU:MLE01086
Grove - Vibration Motor | 105020003
₱119.00
₱119.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product

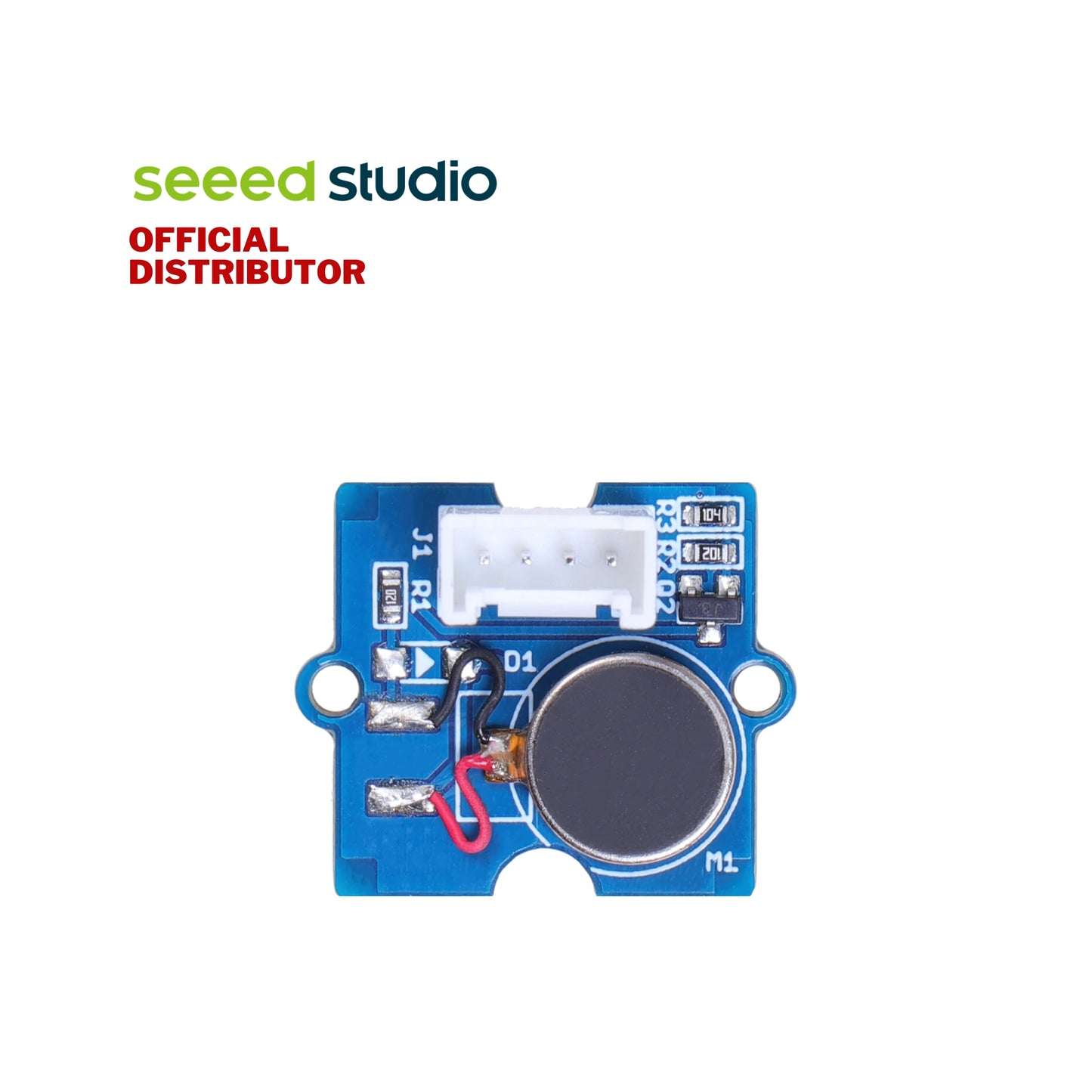

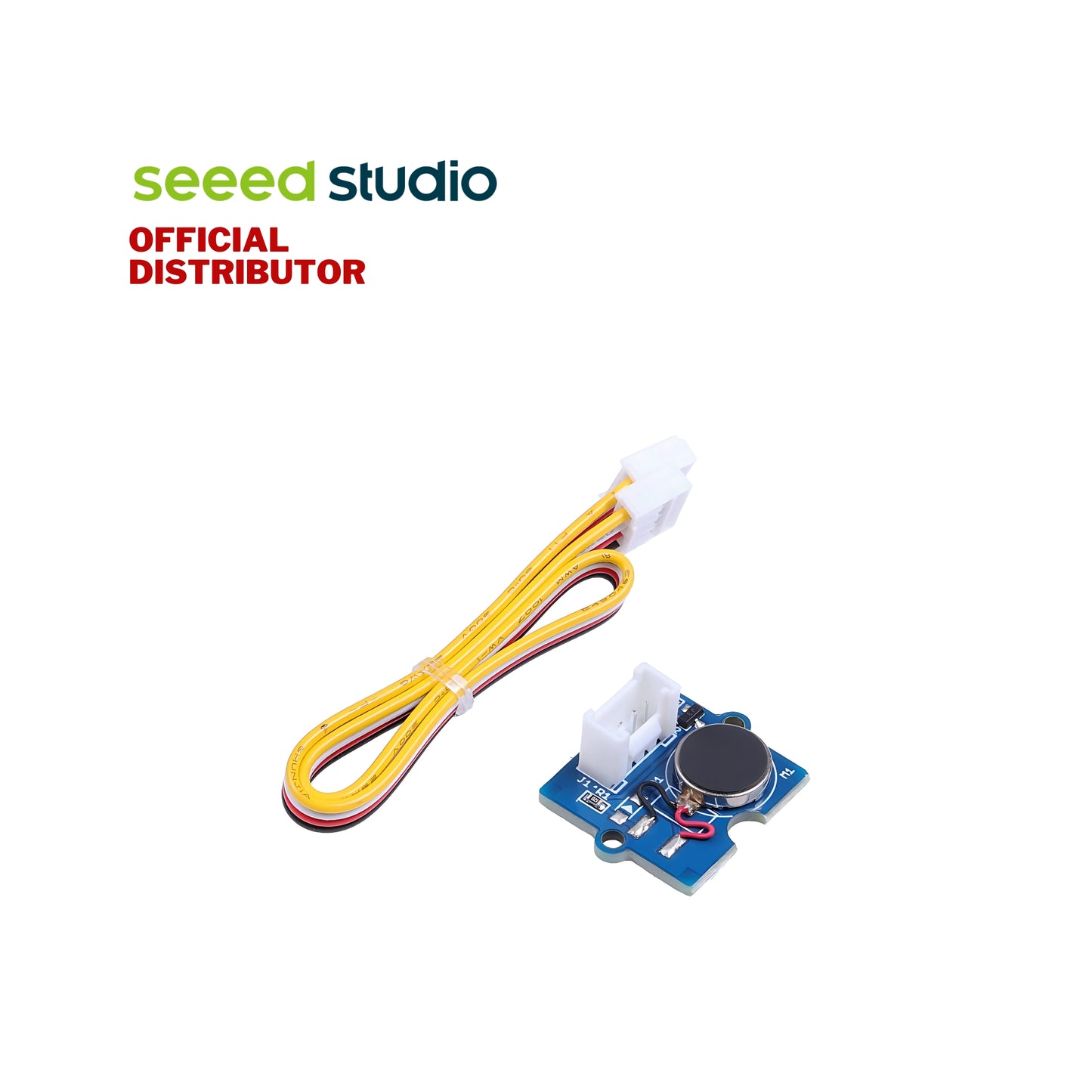

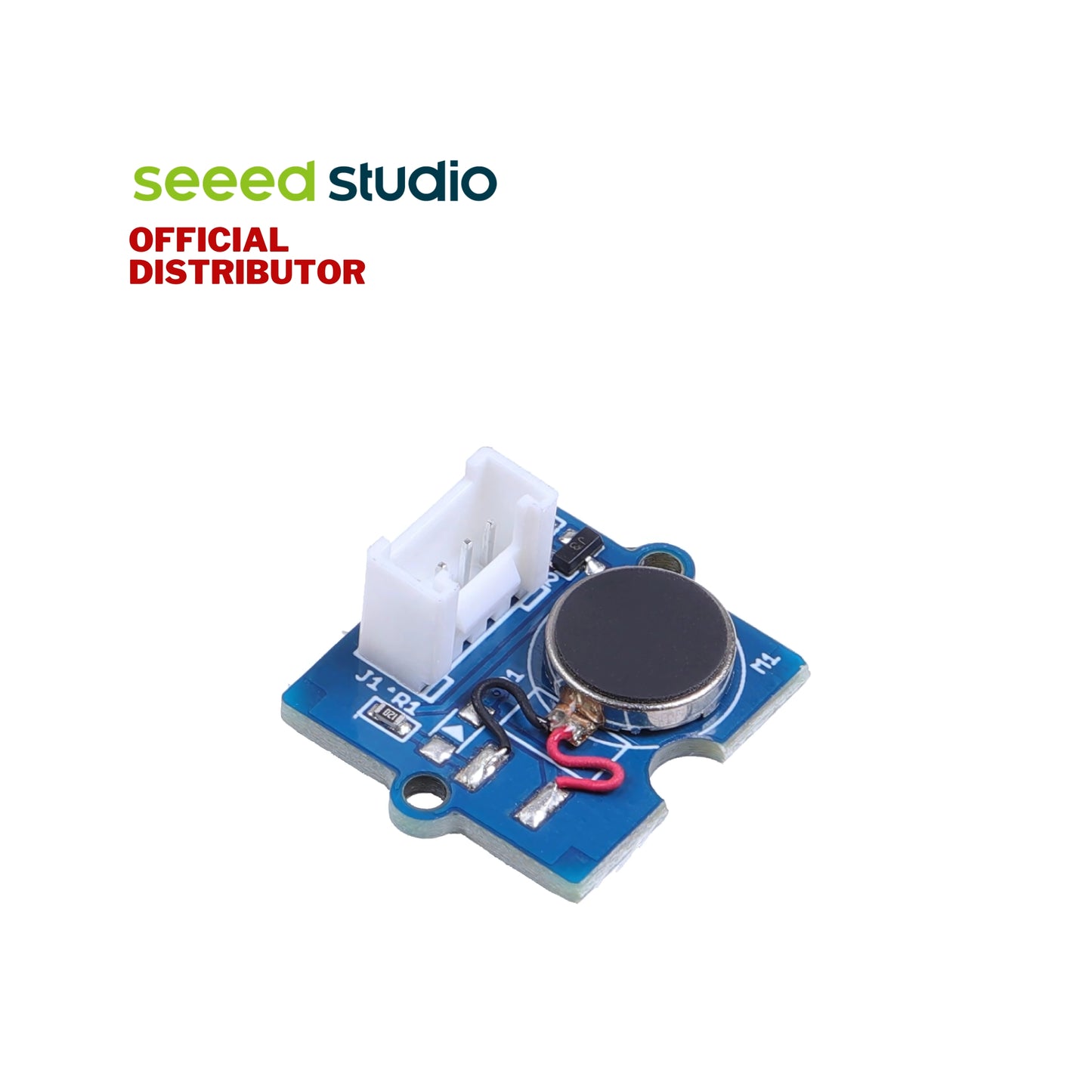

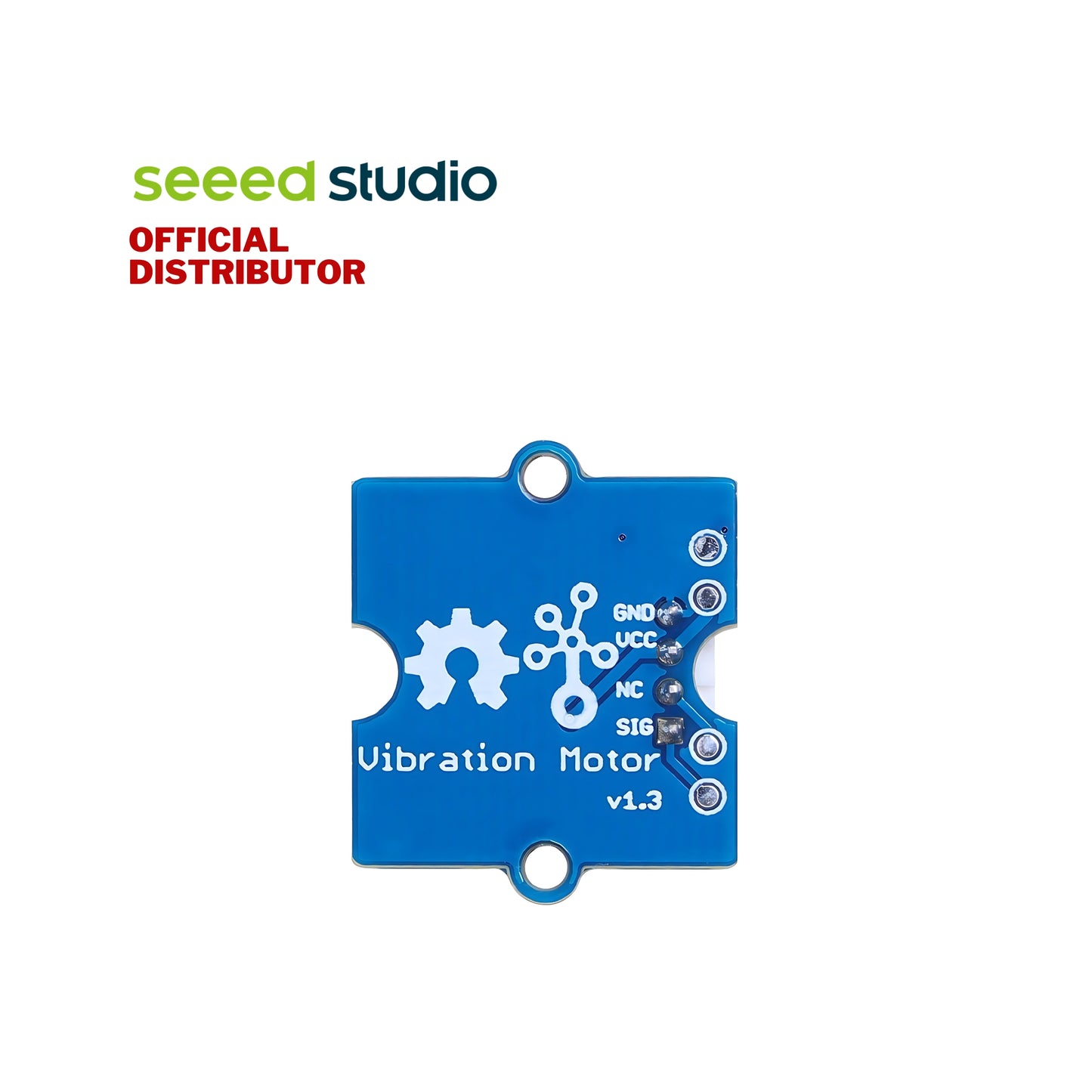

Grove - Vibration Motor consists of one coin type motor which is a permanent magnet coreless DC motor. It vibrates when the input logic is HIGH which can be used to notify the user. Integrated with Grove interface, it provides a simple way to connect with Arduino boards without soldering (A Grove Base Shield is required). Grove Vibration motor is compatible with Arduino and Raspberry, it can also be used in toys and cell phones, health care products, etc.
Features
- Grove compatible
- Non-audible
- Low power consumption
- High reliability
Specifications
| Item | Min | Typ | Max |
| Operating Voltage | 3.0V | 5.0V | 5.5V |
|---|
| Control Mode | Logic Level (When Logic HIGH, the motor is ON. When LOW, the motor is OFF.) |
| Rated Speed | 9000 rpm |
Platforms Supported
- Arduino
- Raspberry Pi
