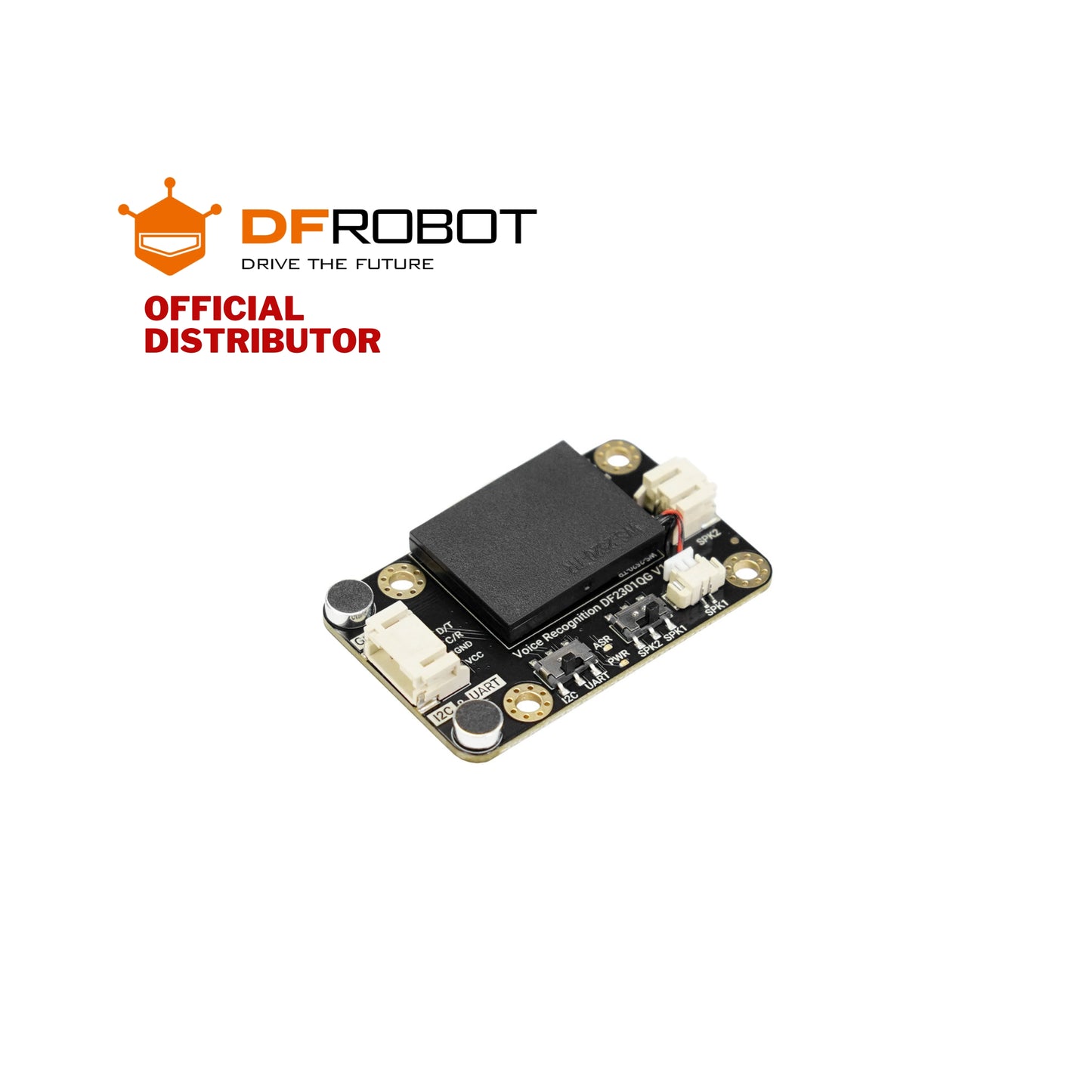

DFRobot Gravity: Offline Language Learning Voice Recognition Sensor for Arduino / Raspberry Pi / Python / ESP32 - I2C & UART | SEN0539-EN

What is voice recognition?
Voice recognition is a computer technology that recognizes and converts speech signals into editable text or operational commands through analysis. It allows people to interact with computers by speaking without using a mouse, keyboard, or other input devices.

What is Gravity: offline language learning voice recognition sensor?
Gravity: offline speech recognition sensor is built around an offline voice recognition chip, which can be directly used without an internet connection. It comes with 121 built-in fixed command words and supports the addition of 17 custom command words. Meanwhile, this voice recognition module compatibility with multiple common controllers enables it to provide a flexible solution for makers and electronics enthusiasts in terms of voice interaction. It can be applied to any application that requires voice control or interaction, such as various smart home appliances, toys, lighting fixtures, and robotics projects, among others.

Self-Learning Function
The voice recognition module is equipped with a self-learning function and supports the addition of 17 custom command words. Any sound could be trained as a command, such as whistling, snapping, or even cat meows, which brings great flexibility to interactive audio projects.
For instance automatic pet feeder. When a cat emits a meow, the offline voice recognition module can recognize the meow and trigger the feeder to automatically provide food for the cat. This innovative design ensures that the owner can promptly meet the cat's dietary needs. Moreover, the product is equipped with excellent noise resistance and long-distance recognition capabilities, allowing for precise identification of the cat's meows even in noisy environments.

FEATURES

• Self-learning function: Control the module to learn command words by the voice, and any audio can be trained as a command
• Support I2C and UART, with a Gravity interface
• Compatible with 3.3V/5V
• Built-in with 121 commonly-used fixed command words
• The module has a built-in speaker and an interface for an external speaker, which can provide real-time voice feedback on recognition results
• Equipped with power indicator (red) and recognition status indicator (blue)

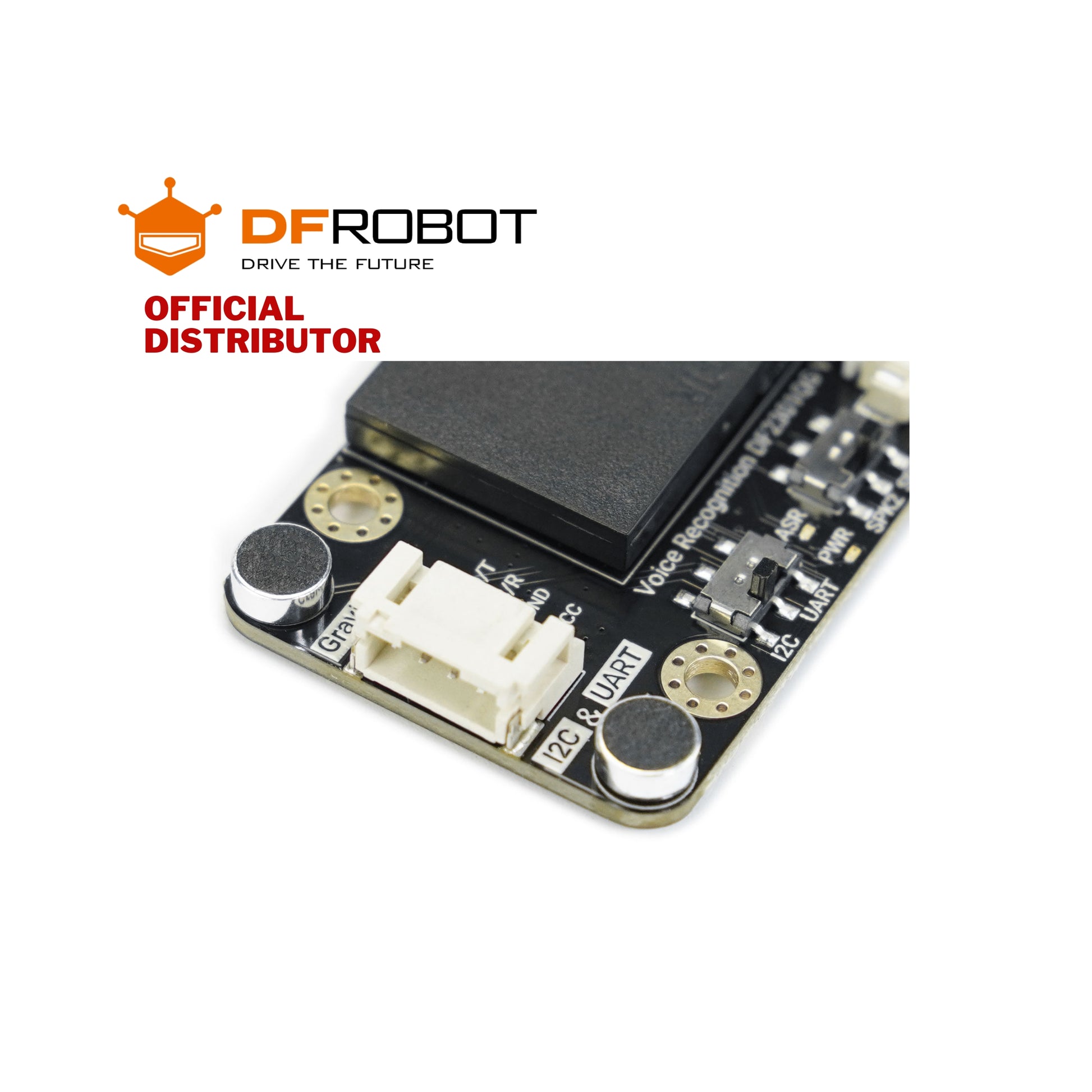

• Dual microphones provide better noise resistance and longer recognition distance
• Compatible with Arduino controllers: Arduino UNO, Arduino Leonardo, Arduino MEGA, FireBeetle series controllers, Raspberry Pi, ESP32

APPLICATIONS

• Voice recognition interaction
• Voice-controlled terminal
• Competition and project development

SPECIFICATION

• Operating Voltage: 3.3 - 5V
• Maximum Operating Current: ?370 mA (5V)
• Communication: I2C/UART
• I2C Address: 0x64
• Fixed Command: 121
• Fixed Wake-up Command: 1
• Custom Command: 17
• Learning Activation Command: 1
• Onboard Microphone Sensitivity: -28db

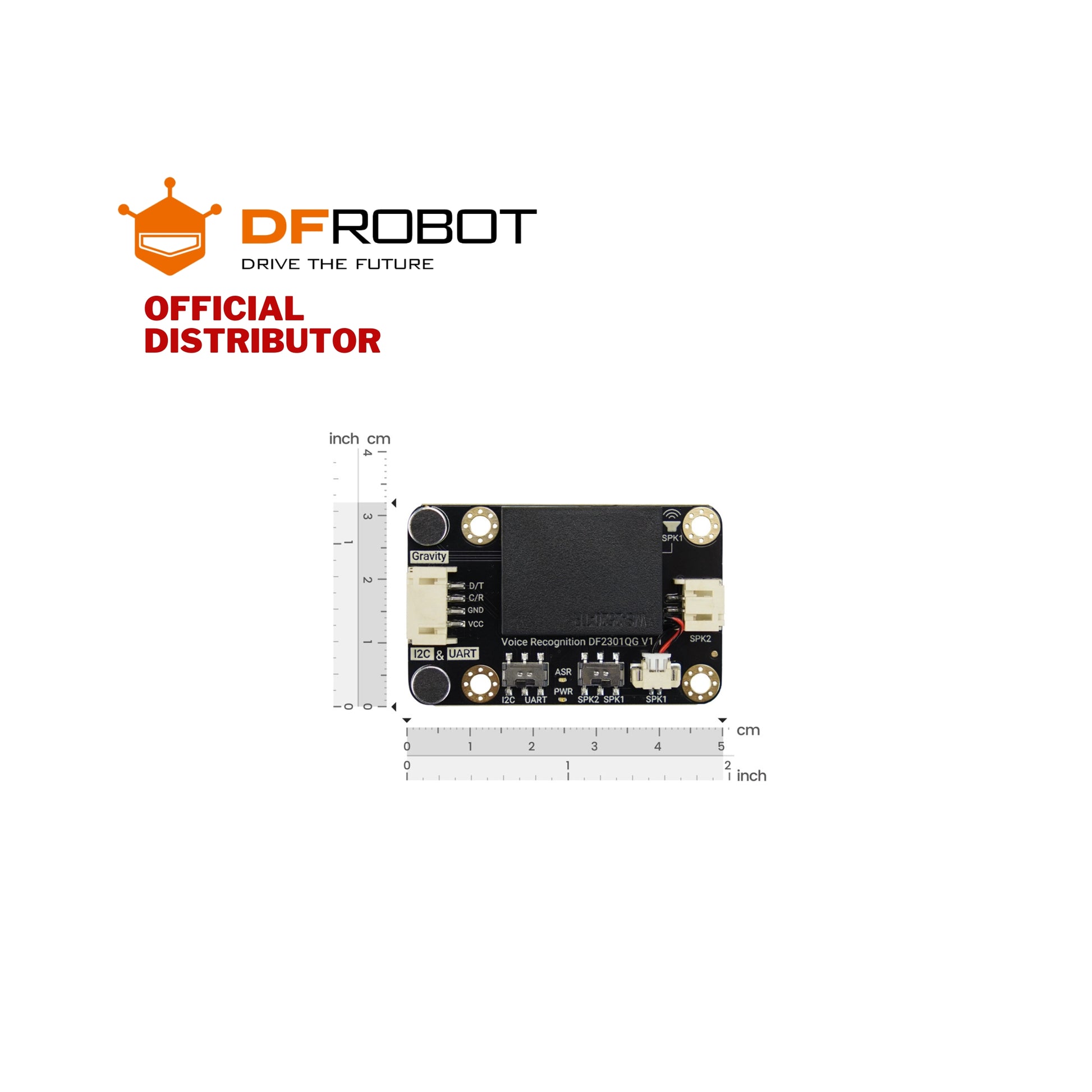

• Module Size: 49×32 mm/1.93×1.26”

SHIPPING LIST

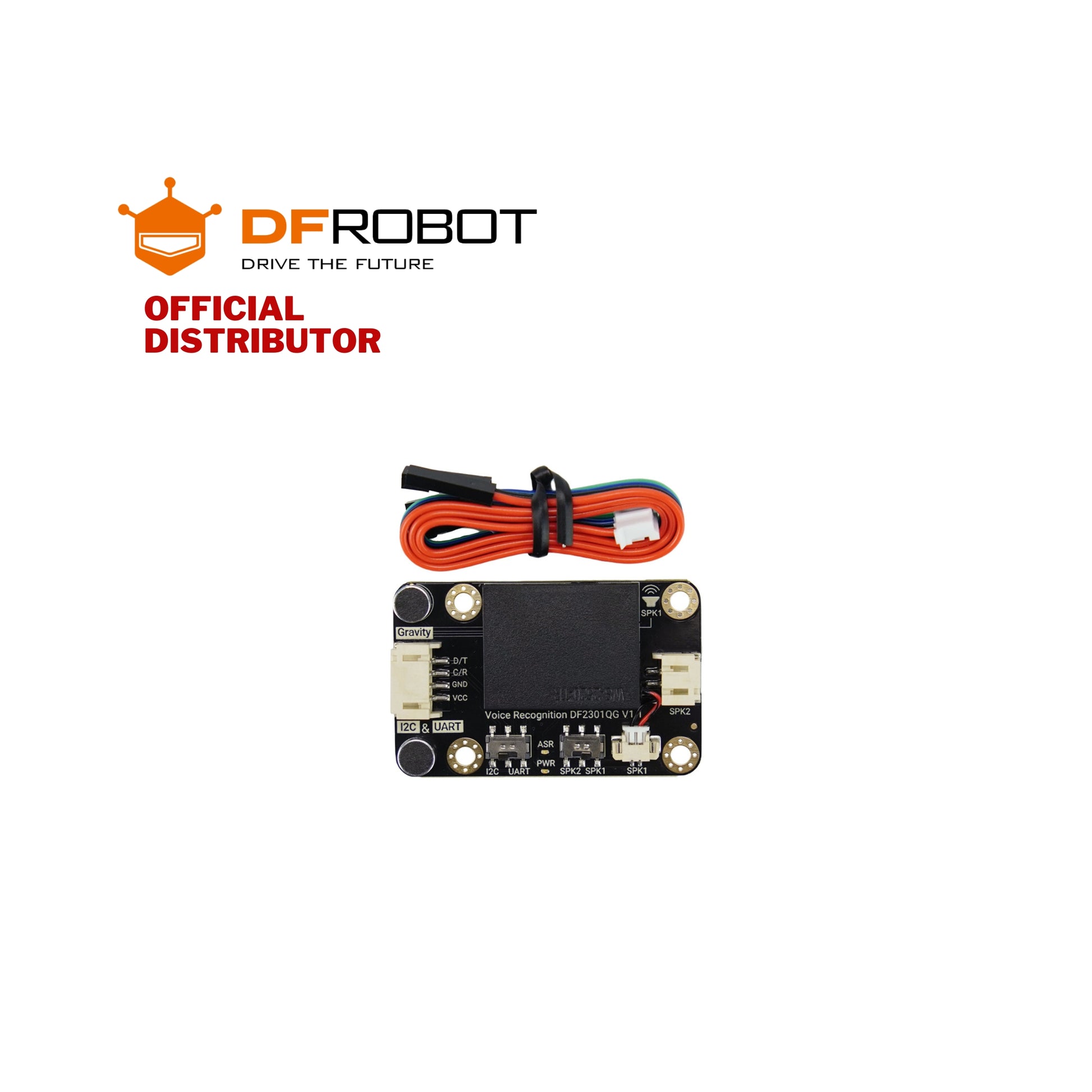

• Gravity: Voice Recognition Module - I2C & UART x1
• Gravity-4P I2C/UART Sensor Connector x1
