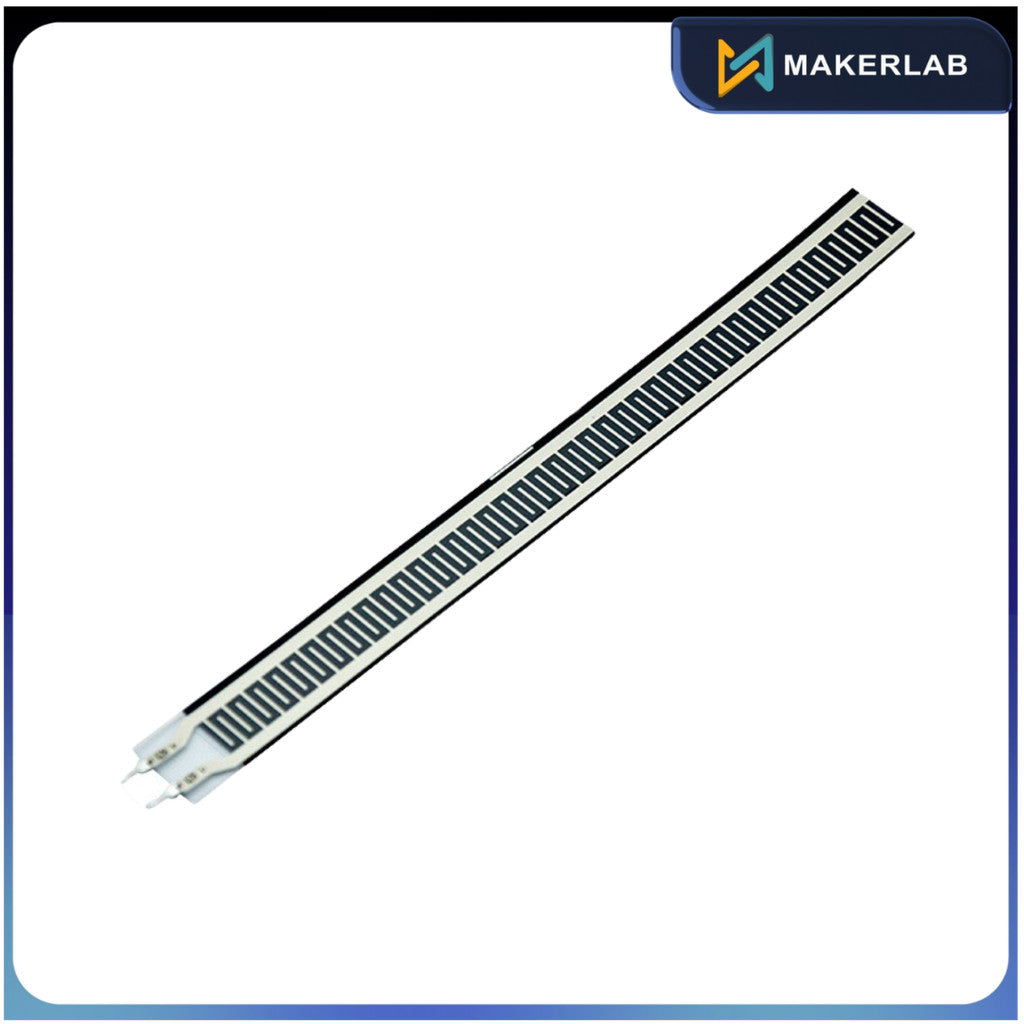

Flexible Force Sensitive Resistor 500g

The Flexible Force Sensitive Resistor 500g has the characteristics of flexible ultra-thin, and extreme speed response, etc.  Waterproof and pressure sensitive dual function Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. High sensitivity and long service life Application: Smart home, medical electronics. When sensor detects outside pressure, the resistance of sensor will change. Pressure signal can be converted into a corresponding electrical signal output using simple circuit.

Specification:

• Model: ZD10-100
• Length: 100 mm/3.9in
• Width:10mm/04in
• Range: 0 ~ 500g
• Thickness:less than 0.25mm
• Response point: less than 20g
• Test voltage: typical dc3.3v
• Durability: more than 1 million times
• Response time: less than 10ms
• Recovery time: less than 15ms
• Working temperature:- 20?~ 60?
• EMI: no
• ESD: not sensitive
• Weight: Approx.3g/0.1oz
