EMAX 9g ES08A High Sensitive Mini Servo | 108090000

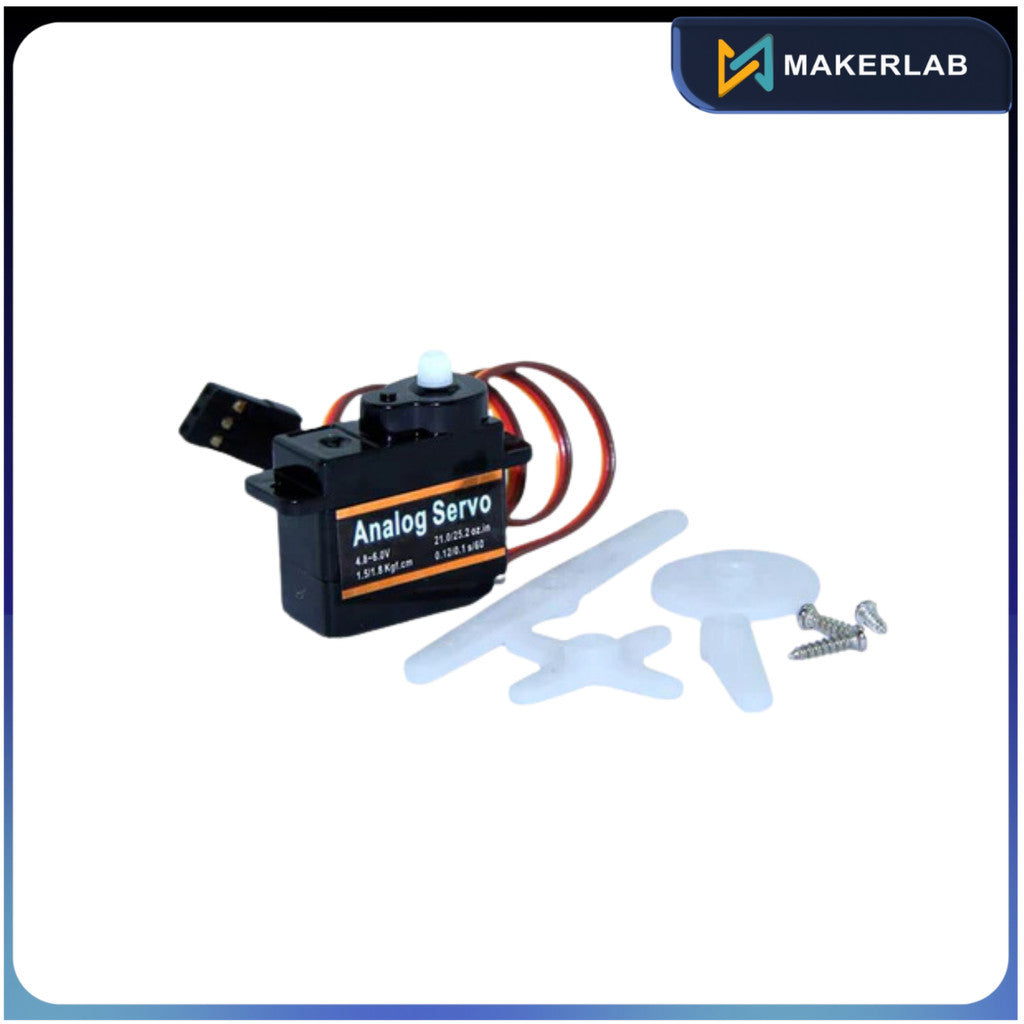

This EMAX servo is an entry-level servo for beginners who like to enjoy servo-controlling fun. This product includes a full set of common shafts as shown in the pictures, great for small mechatronic projects.
The Servo motor is a rotary actuator that allows for precise control of angular position which makes them suitable for use in closed-loop systems where precise position control is needed and is commonly used in electronics.
Grove-Servo is a rotary actuator that allows for precise control of the angular position. It's suitable for use in closed-loop systems where precise position control is needed. We regulated the three-wire servo into a Grove standard connecter. You can plug and play it as a typical Grove module now, without jumper wires clutter.

Features:

• High Accuracy: closed-loop control of position, speed, and torque is achieved

• High Stability: stable operation at a low speed of 0.12/0.16s/60°

• Easy to use: compatible with Grove port, just plug-and-play

Specification:

• Model: ES08A

• Size: 23 x 11.5 x 24mm

• Weight: 8.5g

• Servo Plug: Futaba, JR

• Rotating Direction: CCW (1500~900μsec)

• Running Degree: 180°

• Torque:
  • 1.5kg-cm @ 4.8V

  • 1.8kg-cm @ 6V

• Operating Voltage: 4.8~6V

• Speed:
  • 0.12s/60° @ 4.8V

  • 0.10s/60° @ 6V
