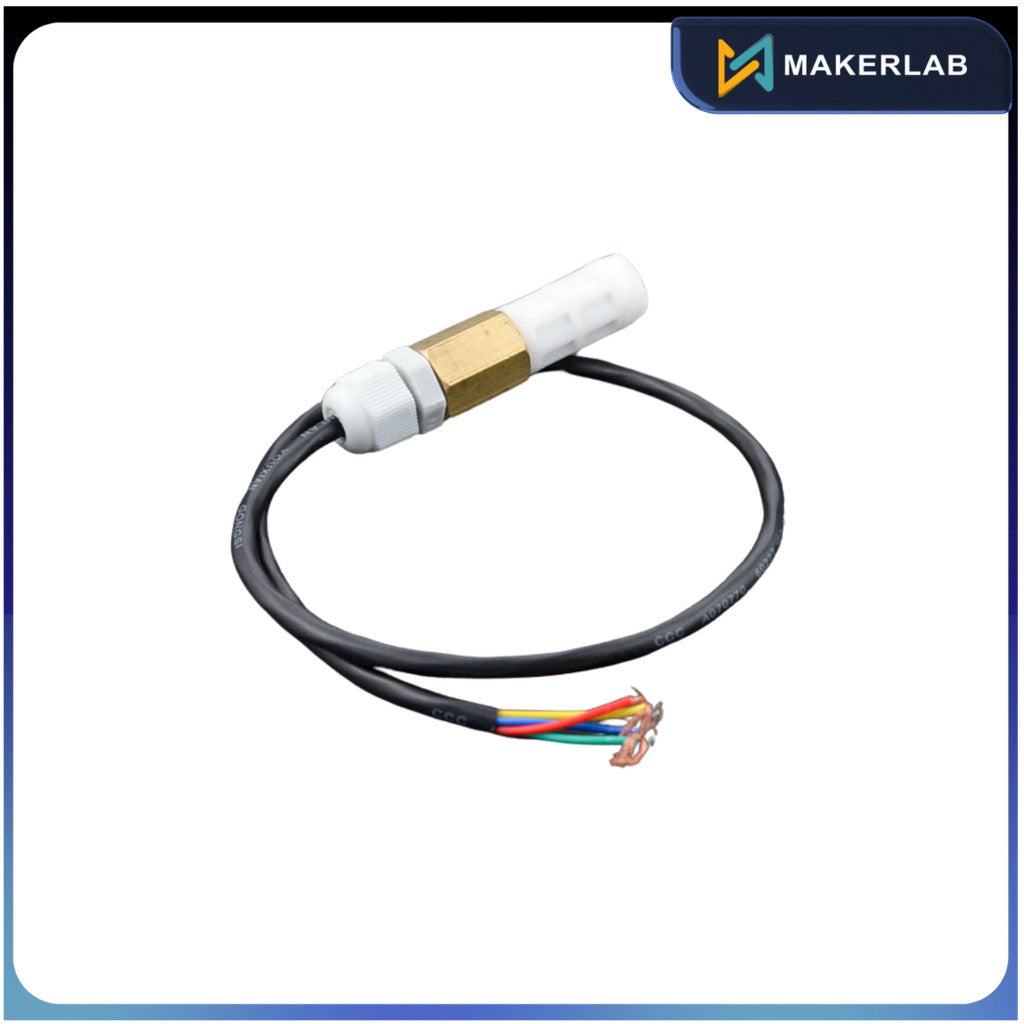

DFRobot SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe) | SEN0227

INTRODUCTION

This SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through dual waterproof protection test.

The SHT20 I2C temperature & humidity sensor adopt Sensirion techniques. Except the humidity sensor of capacitive type and the temperature sensor of band gap , SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with early SHT1x series and SHT7x series, SHT20 shows a strong reliability and long-term stability. It can measure surrounding environment temperature and relative air humidity precisely.

There is also a built-in 10k Pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with the microcontroller such as Arduino. We recommend DFRobot Gravity 4Pin Sensor Adapter convenient.

Sensor Interface:

• Red VCC

• Green GND

• Blue (Black) SDA

• Yellow (White) SCL

SPECIFICATION

• Operating Voltage: 3.3/5V

• Communication Interface: I2C

• Protection Class: waterproof anti-condensation

• RH Response Time: 8s (tau63%)

• Accuracy: ±3% RH / ±0.3 ?

• Measuring Range: 0-100% RH / -40-125 ?

• Dimension: 73mm * 17mm / 2.87 * 0.67 inches

• Weight: 44g

SHIPPING LIST

• SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe) x1

• Jumper Wires 7.8" F/F x4
