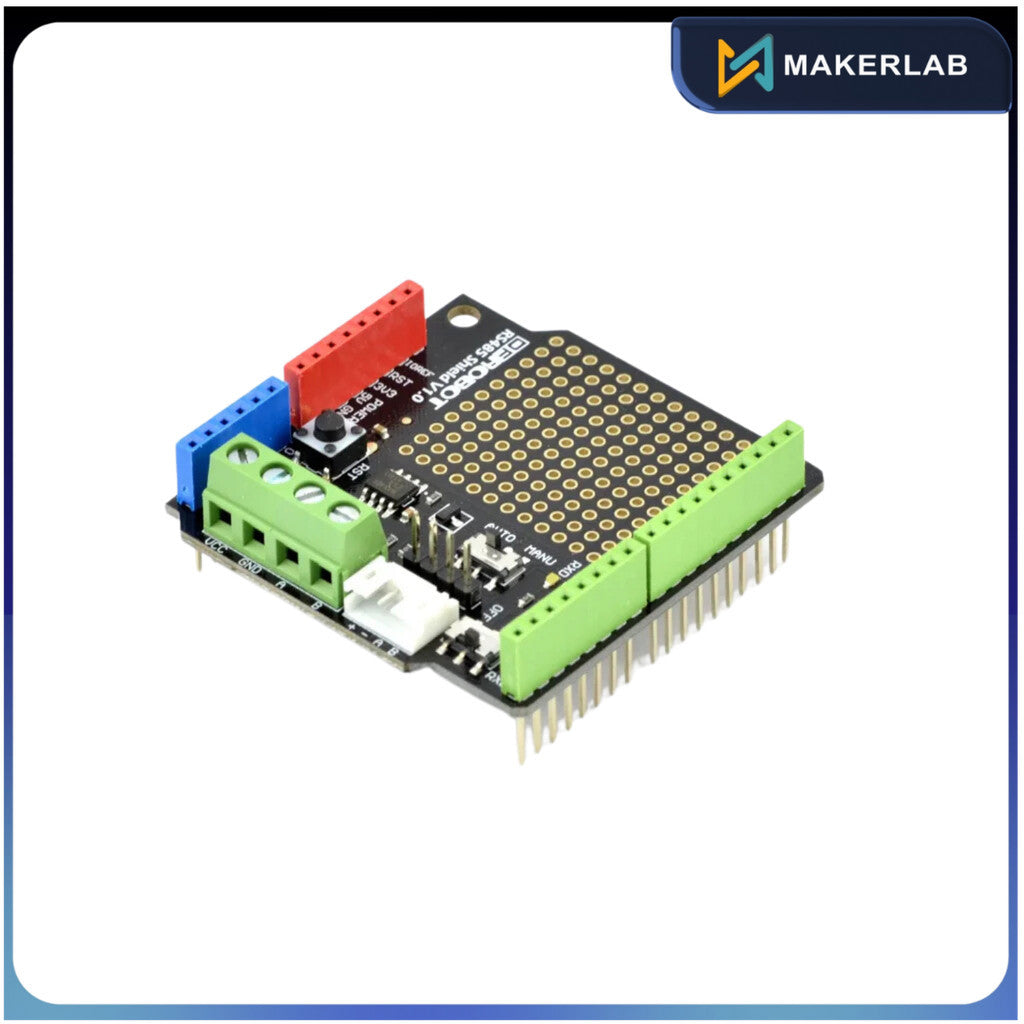

DFRobot RS485 Shield for Arduino | DFR0259

Product Description
Description: DFRobot RS485 MAX485ESA - Shield for Arduino

Shield forArduinothat allows data transfer via RS485 Protocol. Despite the fact that the RS485 is anarchaic bus, it has some features that distinguish it from the newer interfaces. It allows, i.a. to connect up to 32 devices on one line with the width of up to 1 km with a maximum speed up to 10 MB/sec.

Specification of DFRobot RS485 MAX485ESA

• Supply voltage: 5 V
• Led out pins of Arduino
• Led out RESET button of the Arduino
• Built-in LED indicators
• Led out pins of RS485 interface for:
• Gold pin connectors - 2.54 mm raster
• screw connectors
• 4-pin slot PH2.0
• The field for creating your own prototype system.
• Board size: 55 x 53 mm
