DFRobot Gravity: I2C High Temperature Sensor (K-Type, 800℃) | DFR0558

PT100 is suitable for most of the temperature measurement below 400°C, but usually the temperature of the household natural gas stove can reach over 800°C, and the temperature of the pottery kiln or high-power electric furnace can be more than 1000°C. The K-type thermocouple are commonly used in such ultra-high temperature scenes.
The digital K-type high temperature sensor consists of a signal amplification conversion module and a stainless steel sheathed K-type thermocouple probe. When the K-type thermocouple probe is placed near a high-temperature heat source, the probe generates a small voltage proportional to the temperature due to the thermoelectric effect. The module uses a MAX31855K dedicated chip to amplify this small voltage, convert it to digital signals, and compensate accordingly. The temperature readings can be read through Gravity I2C interface. The module can measure extremely wide temperature ranging from -270°C to 1372°C, the error from -200°C to 700°C is within ±2°C, and the error from 700°C to 1350°C is within ±4°C. The attached K-type thermocouple can measure up to 800 °C with error within ± 2.5 °C.

FEATURES
14 bit, 0.25°C digital high-resolution temperature measurement
Extremely wide temperature range
Wide input voltage, compatible with 3.3V and 5V controllers
Gravity I2C interface, convenient connection
Fits any K-type thermocouple probe
APPLICATIONS
Electric Oven, Electric Furnace
High Temperature Flame, Gas
Pottery Kiln

SPECIFICATION

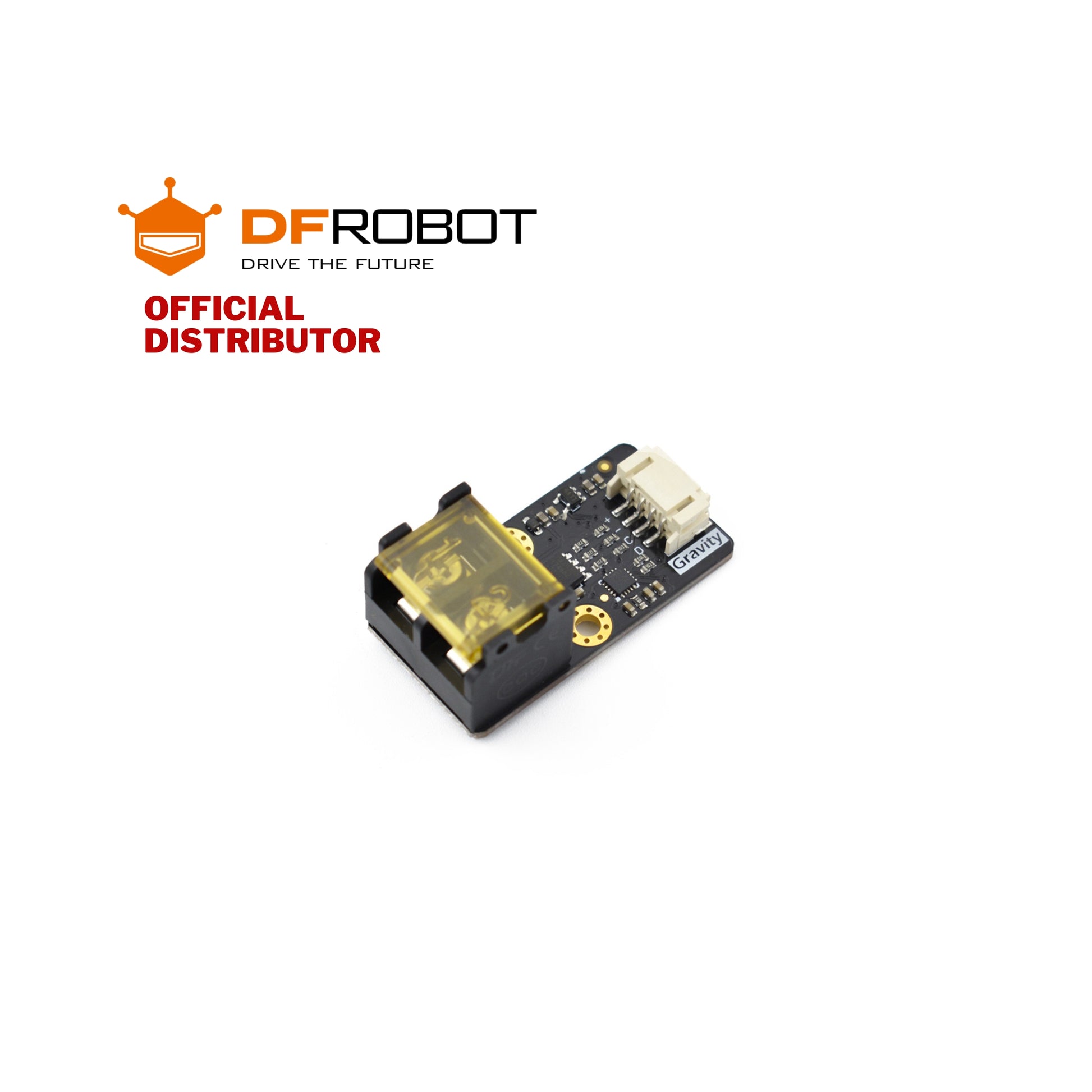

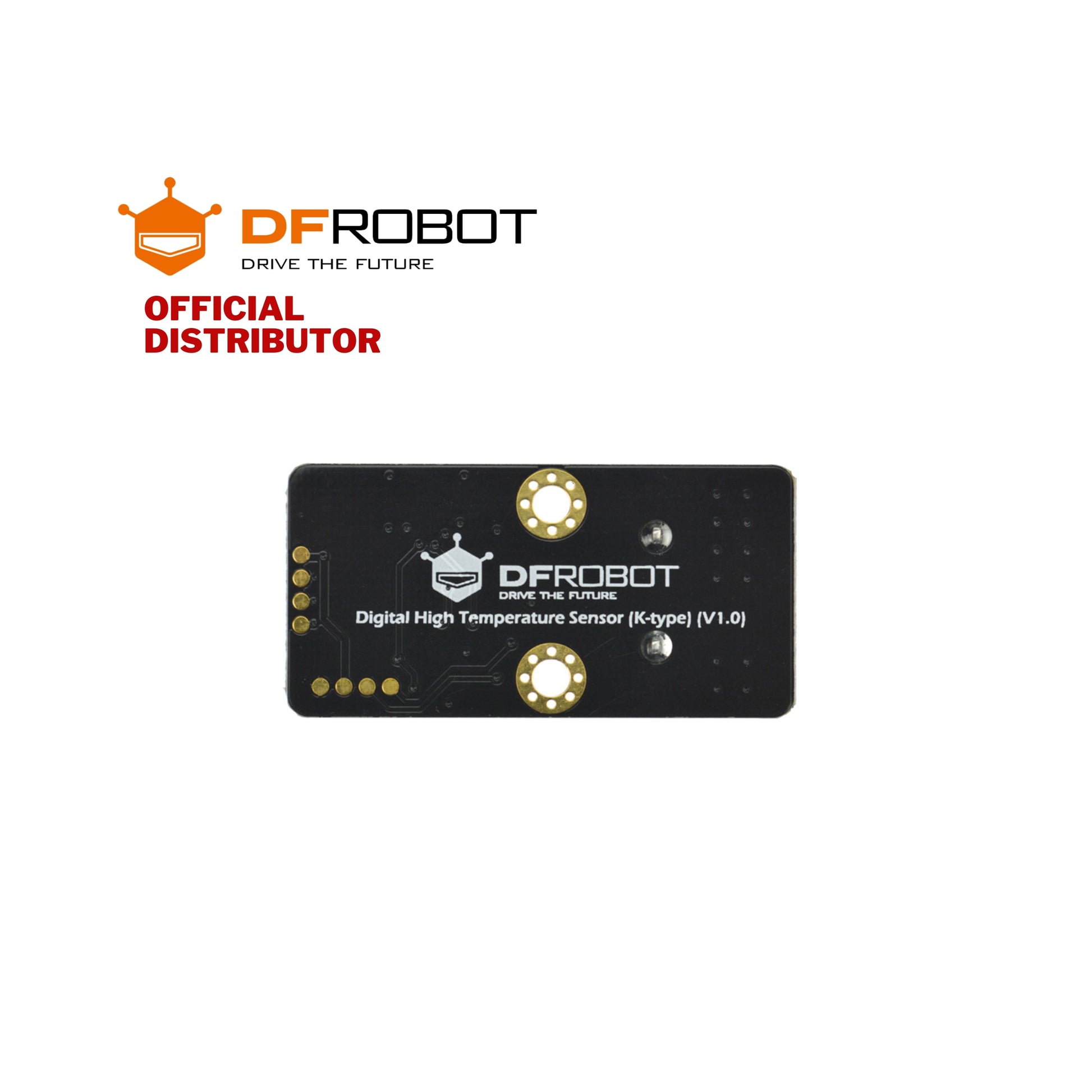

Signal Amplification Conversion Module
Input Voltage (VCC): 3.3V~5.5V
Probe: K Type Thermocouple
Temperature Range: -270°C~1372°C
Resolution: 0.25 °C
Error: within ≤ ±2°C(-200°C~700°C) ~ ±4°C(700°C~1350°C)
Interfaces: Gravity I2C (Logic Level 0-3.3V)

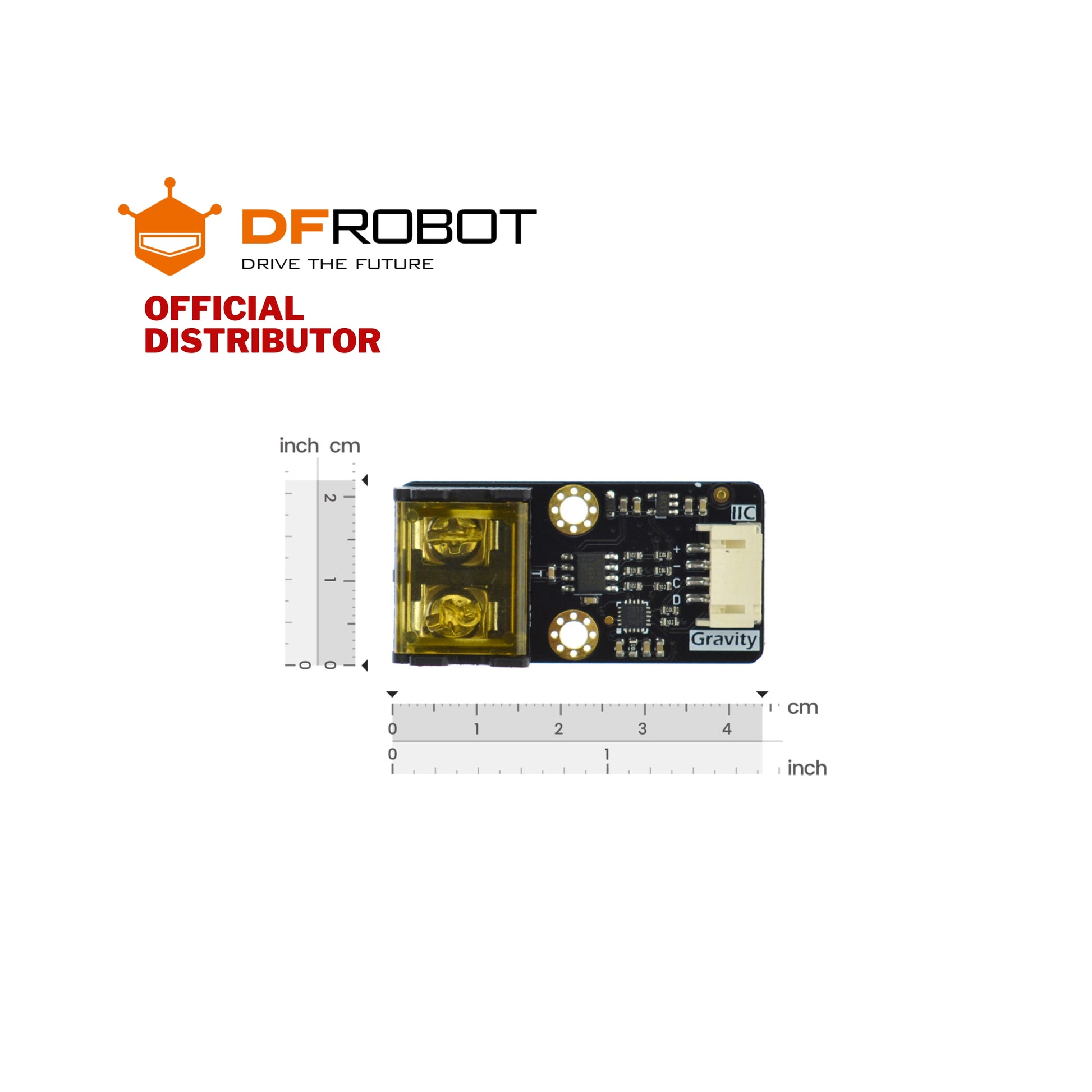

Dimension: 44.0mm*22.0mm
Armored K-Type Thermocouple Probe
Temperature Range: up to 800 °C
Error: ≤ ±2.5°C
Wire Length: 1.5m
Probe Length: 50mm
Probe Diameter: Φ4mm
Features: Waterproof, Corrosion Resistant (Weak Acid or Alkali Resistant, Rustproof), High Temperature Resistance

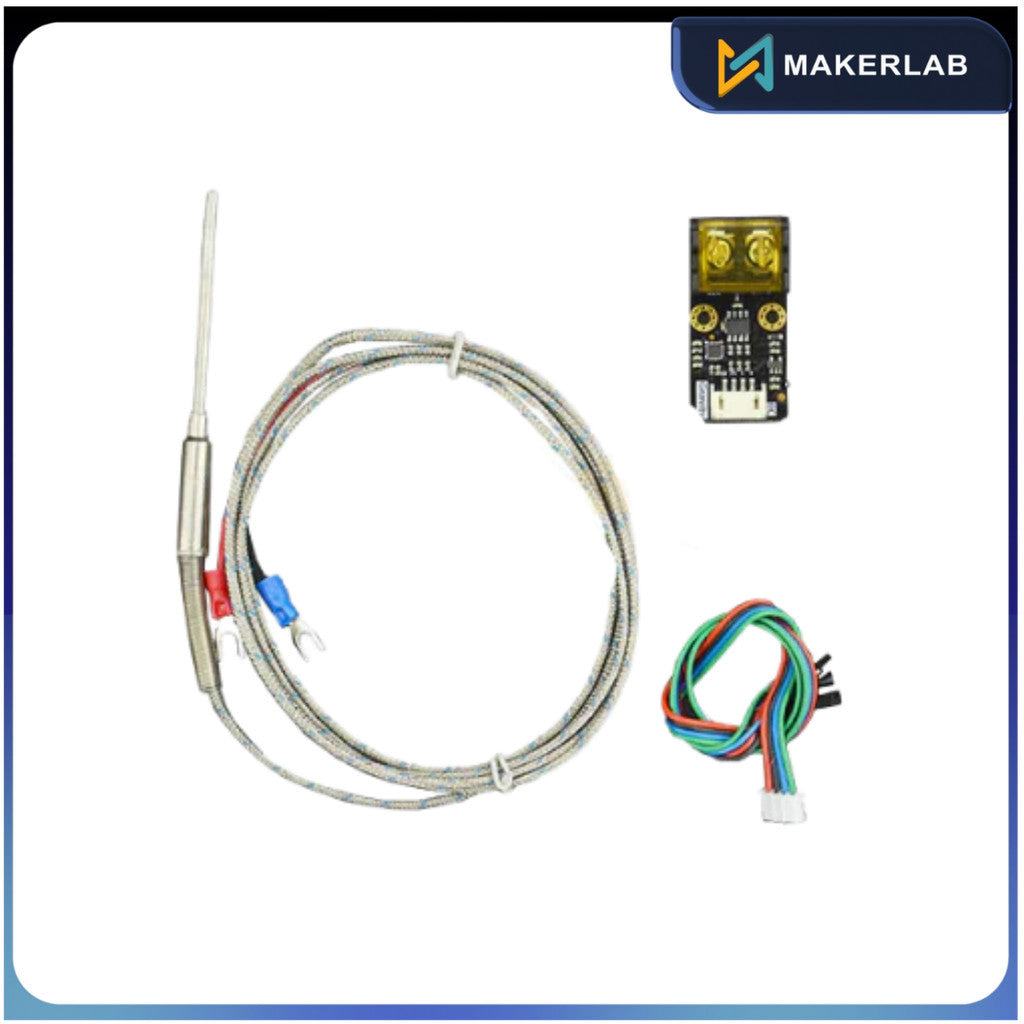

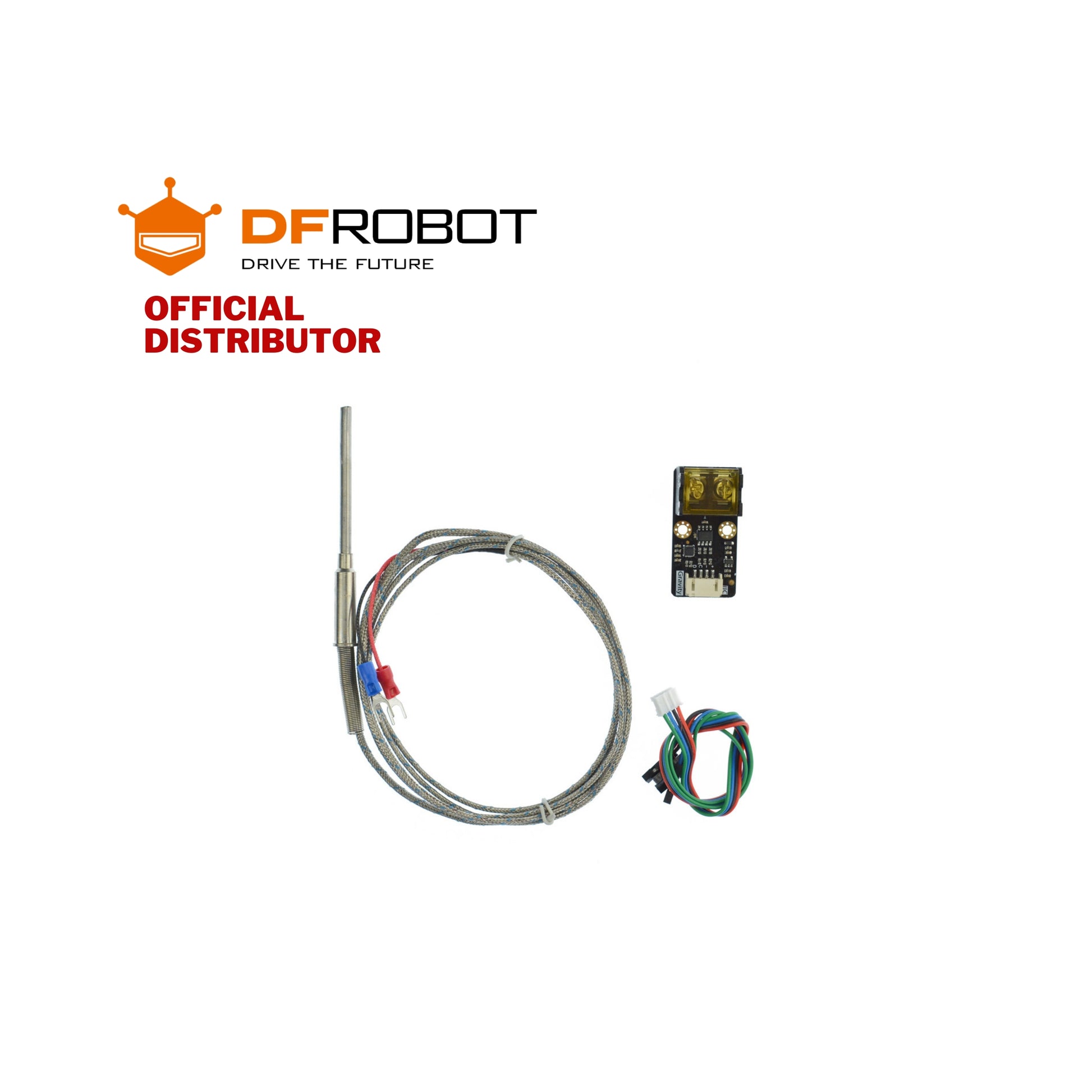

SHIPPING LIST
Signal Amplification Conversion Module x1
Armored K-Type Thermocouple Probe x1
Gravity-4P I2C/ UART Sensor Wire x1
