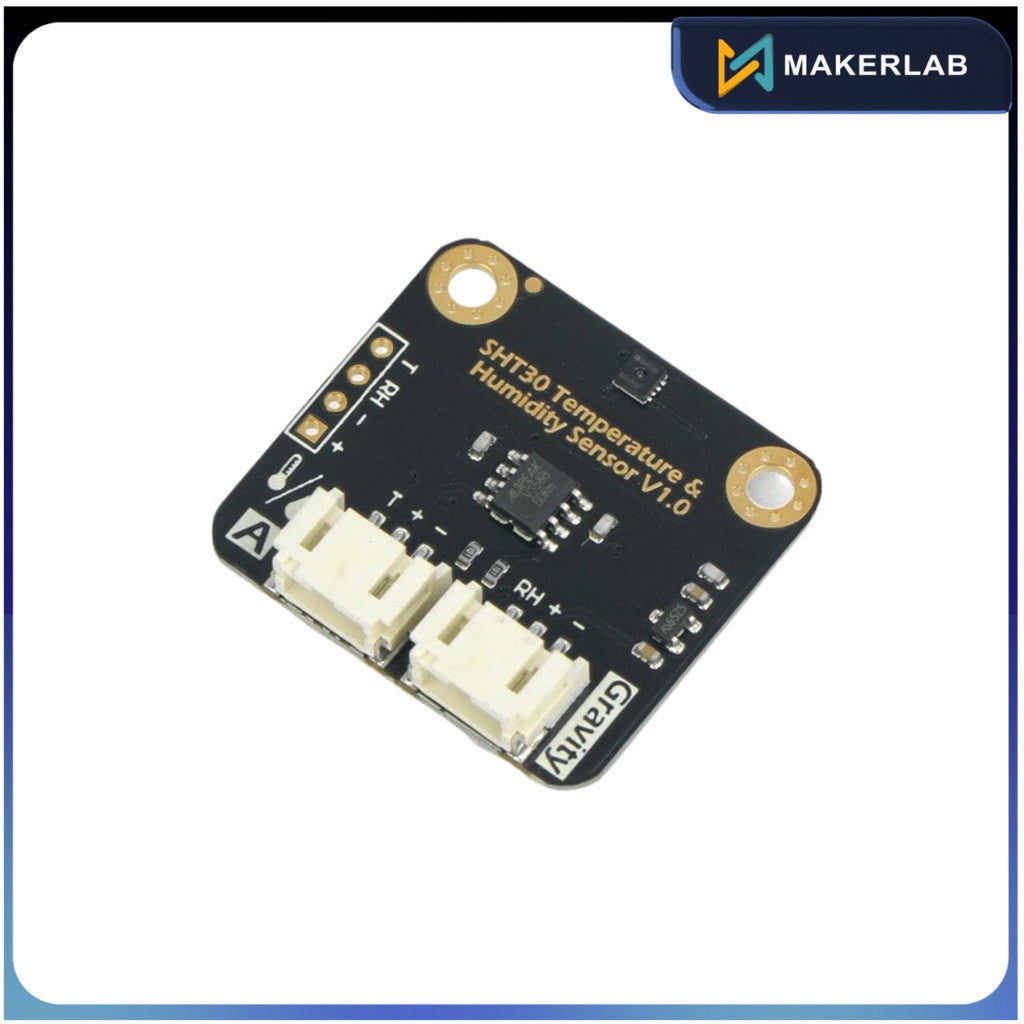

DFRobot Gravity: Analog SHT30 Temperature & Humidity Sensor | DFR0588

Product Description

Gravity: Analog SHT30 Temperature & Humidity Sensor adopts the new generation SHT30 temperature and humidity sensor from Sensirion. Thanks to Sensirion's CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and immunity to interference. The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity. It is compatible with 3.3V/5V controllers such as Arduino, micro:bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Thing's applications.


FEATURES

• Internal auto-calibration, linear analog voltage output
• High precision, low power consumption, fast response
• Compatible with 3.3V/5V controller

APPLICATIONS

• Urban Environmental Monitoring
• Intelligent Building, Home
• Industrial Automation

SPECIFICATION

• IC (Sensor): Sensirion SHT30
• Input Voltage (VCC) : 3.3V~5.5V
• Interface: Gravity Analog (PH2.0-3P?analog voltage output 0.3-2.7V)
• Quiescent Current: <0.5 mA
• Dimension: 30×32 mm / 1.18×1.26 in
• Weight: 3g

Temperature Performance

• Range: -40 ~ 125 ?
• Resolution: 0.01 ?, 14bit
• Accuracy: ±0.2?@10~55? (typical), ±1.5?@-40 ~ 125 ? (typical)
• Response Time: >2s

Humidity Performance

• Range: 0 - 100 %RH
• Resolution: 0.006 %, 14bit
• Accuracy: ±3 %RH@10~90 %RH (typical)?±8 %RH@0~100 %RH (typical)
• Response Time: >8s

SHIPPING LIST

• Gravity: Analog SHT30 Temperature & Humidity Sensor x1
• XH2.54-4P Black Header x1
• Gravity-3P Analog Sensor Cable x2
