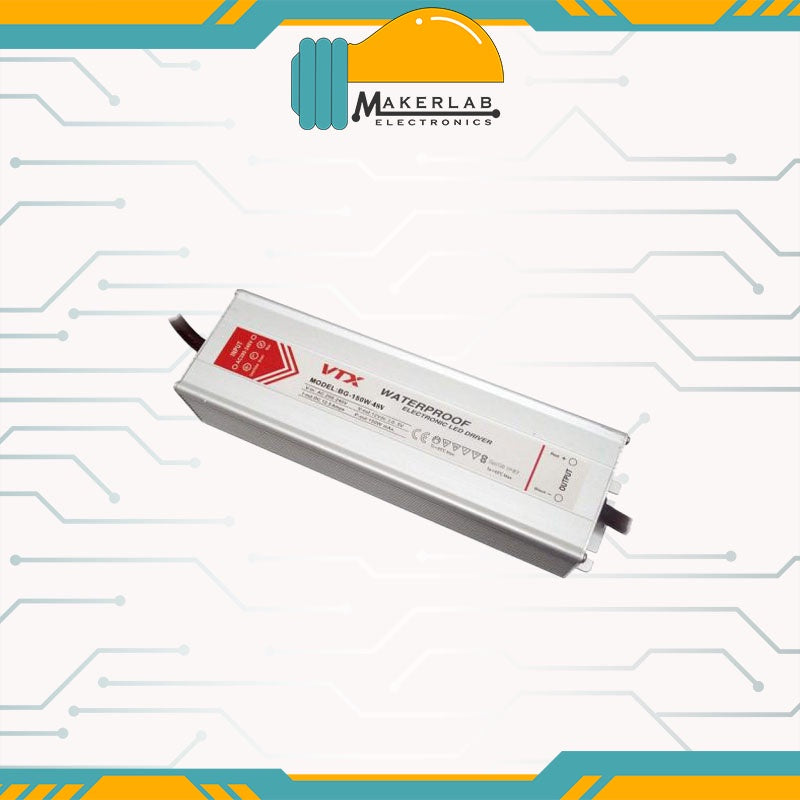

BG-150-48 IP67 150W Waterproof Electronic LED Driver

Model: BG-150-48



OUTPUT

DC voltage: 48V

Rated current: 3.1A

Current range: 0 ~ 3.1A

Rated power: 148.8W

Ripple & noise: 200mVp-p

Setup, rise, hold time: 500ms, 20ms,20ms/230VAC



INPUT

Voltage range: 85~132VAC / 176~264VAC selected by switch        240~370VDC

Frequency range: 47 ~ 63Hz

Efficiency: 85%

Ac current: 3.2A/115VAC    1.6A/230VAC

Inrush current: Cold start 40A

Leakage current: <2mA/240VAC



PROTECTION

Overload: 115 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

Over voltage: 55~64V

Protection type: Shut off



ENVIRONMENT

Working temp, humidity: -20? ~ +60?,20% ~ 90% RH non-condensing

Storage temp, humidity: -20? ~ +85?,10% ~ 95% RH non-condensing

Withstand vibration: 10 ~ 500Hz, 2G 10min/1cycle,period for 60min. each axes



SAFETY & EMC

Safety standard: Design refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

Withstand voltage: I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMC standard: EN55015,EN55022,EN55024,EN61000-3-2,EN61000-3-3,EN61547 approved



OTHERS

MTBF: 500K hrs

Dimension: 222*68*42mm (L*W*H)



NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25? of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
