Atlas Scientific Dissolved Oxygen Kit

This Atlas Scientific Dissolved Oxygen Kit comes with necessary components to quickly take accurate readings of dissolved oxygen using your existing micro-controller such as an Arduino or Raspberry Pi.

The Dissolved Oxygen circuit returns data in Mg/L up to two significant figures. Readings can be taken either dependent or independently of temperature or conductivity.

Note: The probe can be submerge indefinitely in fresh or salt water up to the BNC connector.

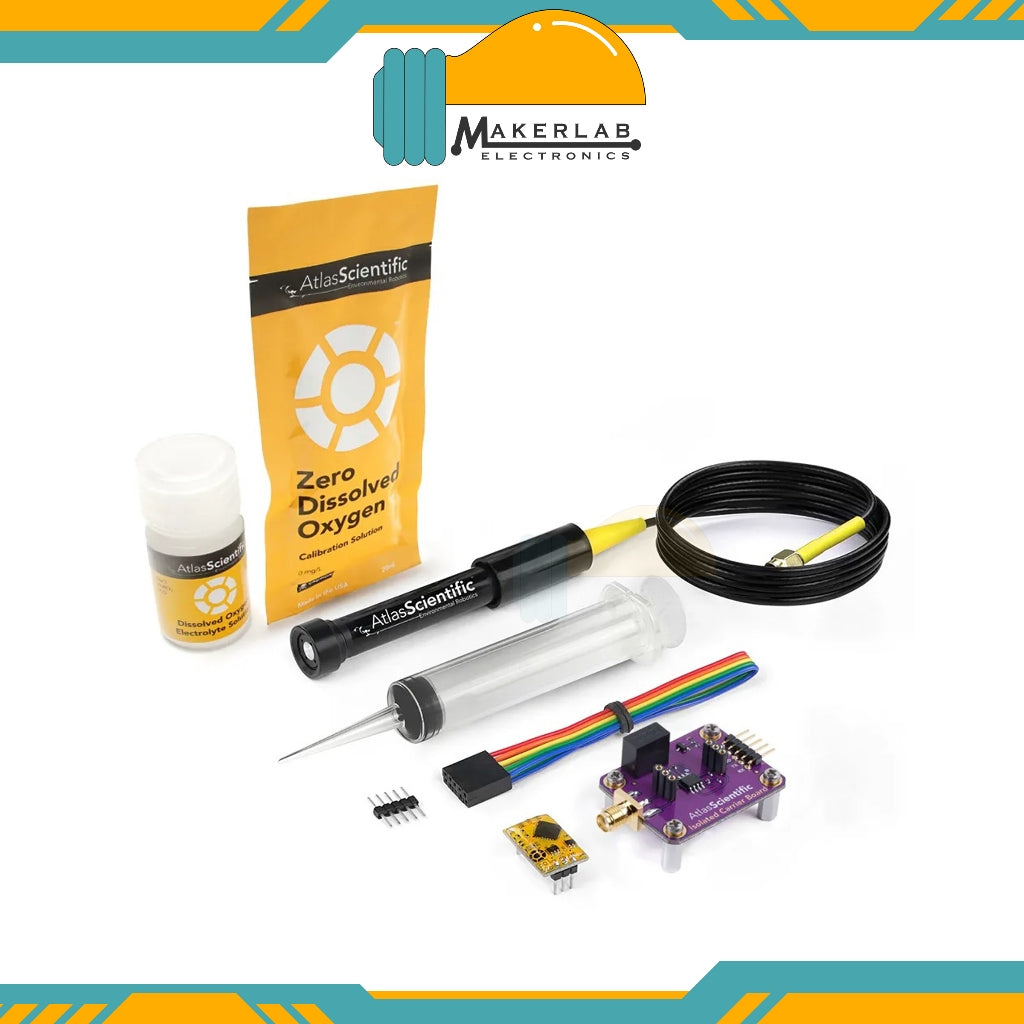

• 1 EZO™ Dissolved Oxygen Circuit
• 1 Dissolved Oxygen Probe
• 1 125ml (4oz) 0 Dissolved Oxygen calibration solution
(used to confirm that the D.O. is working properly)
• 1 Pre-Assembled Female BNC connector
• 1 Basic EZO™ Inline Voltage Isolator (optional: + Php 1400.00)
Probe Max Pressure: 3,447 kPa (500PSI)
Probe Max Depth: 343 meters (1,125 ft)
Probe Weight: 51 grams

Female BNC Spec
Thread Size 1/4" - 36 UNS Thread type

Downloads:

EZO™Dissolved Oxygen Circuit Datasheet
Understanding Dissolved Oxygen
Wiring Diagram
Arduino Uno Sample Code
Arduino Mega Sample Code
Arduino I²C Sample Code

Dissolved Oxygen Probe Datasheet
How to properly cut your probe cable
Raspberry Pi Sample Code
Raspberry Pi I²C Sample Code
Dissolved Oxygen. CAD Footprint File (*.dxf)
BNC Technical Specs
