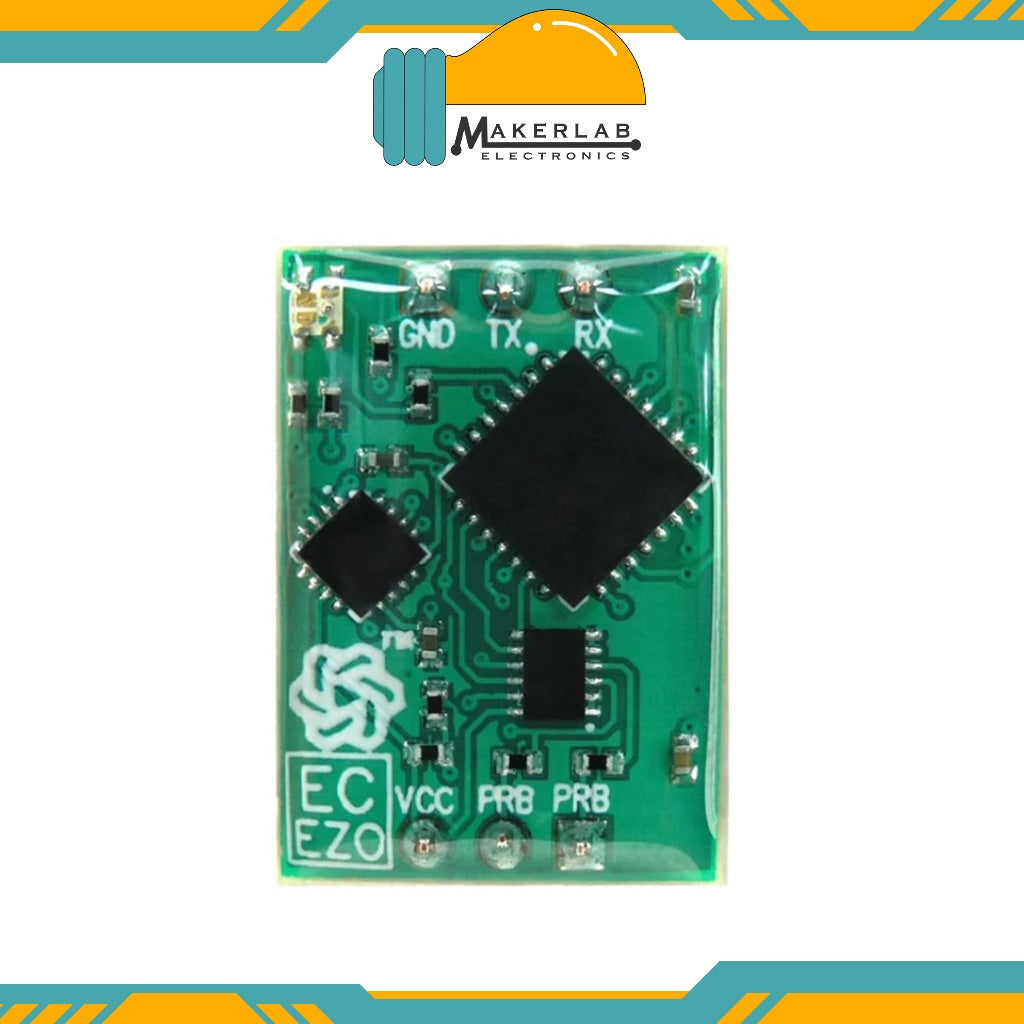

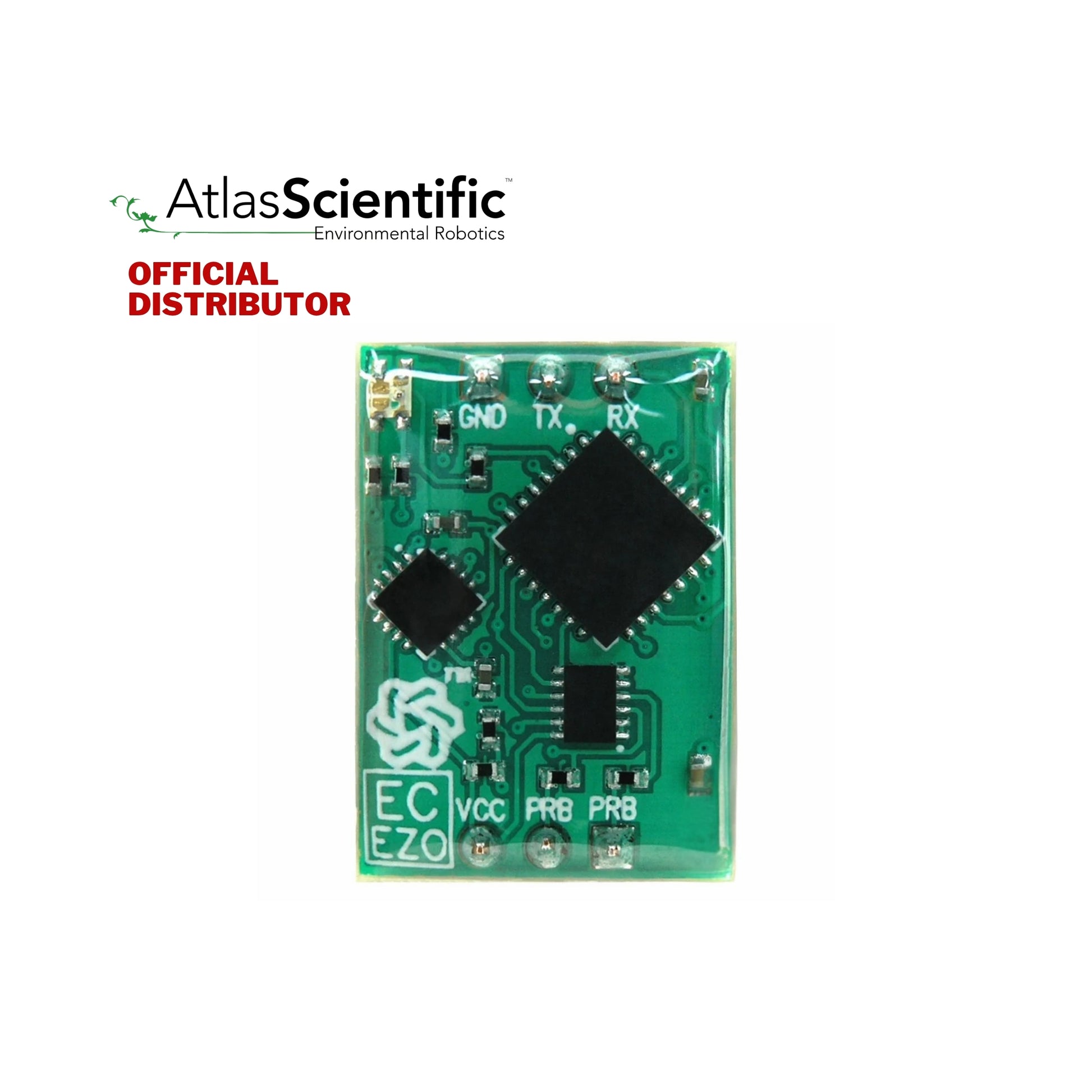

Atlas EZO™ Conductivity Circuit | EZO-EC

Description

• EZO Conductivity Circuit
• Offers a fundamental measurement of water chemistry
• Reads conductivity, salinity, and TDS (PPM)
• Gives you access to the same accuracy and functionality

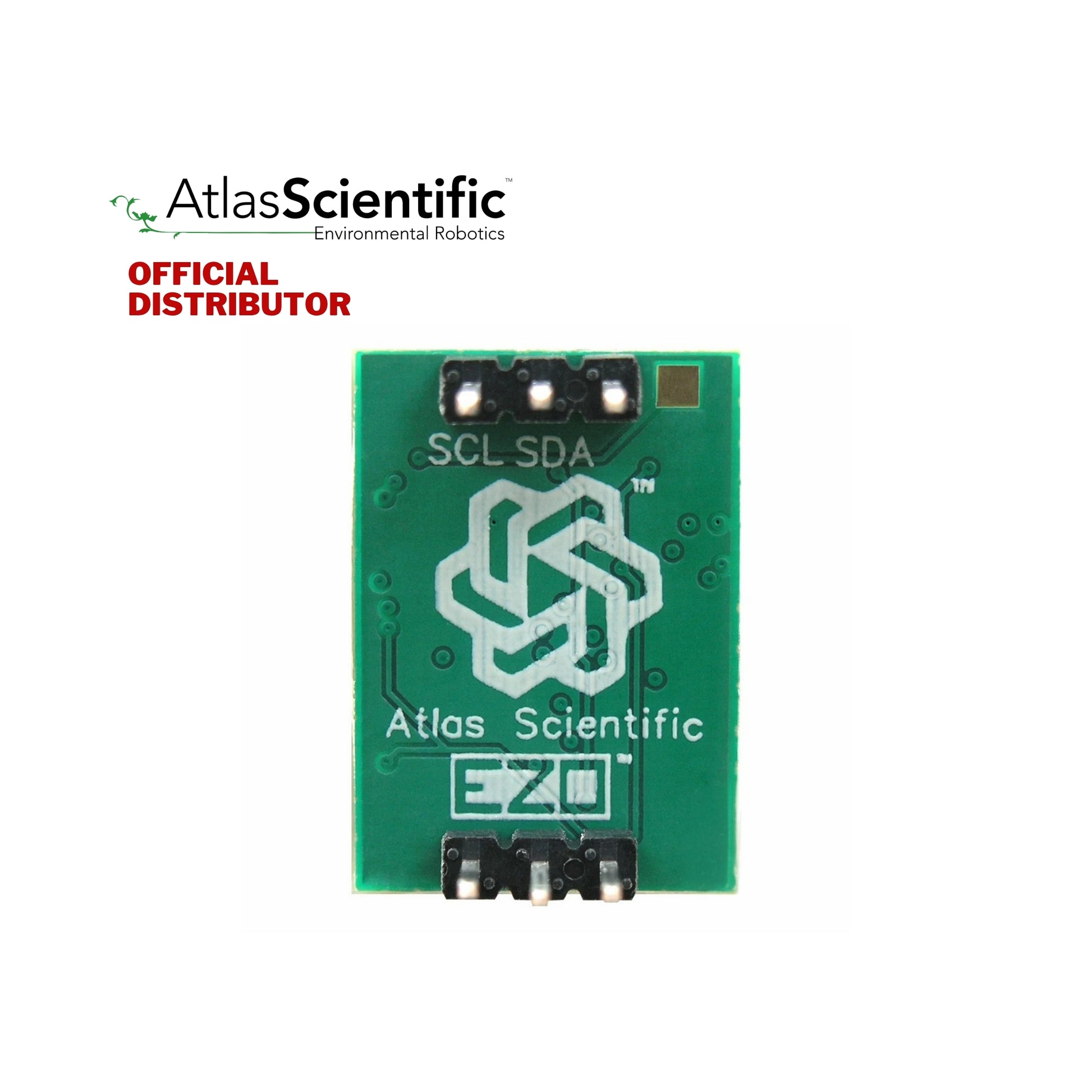

• Data protocol: UART and I2C
• Operating voltage: 3.3 - 5 V

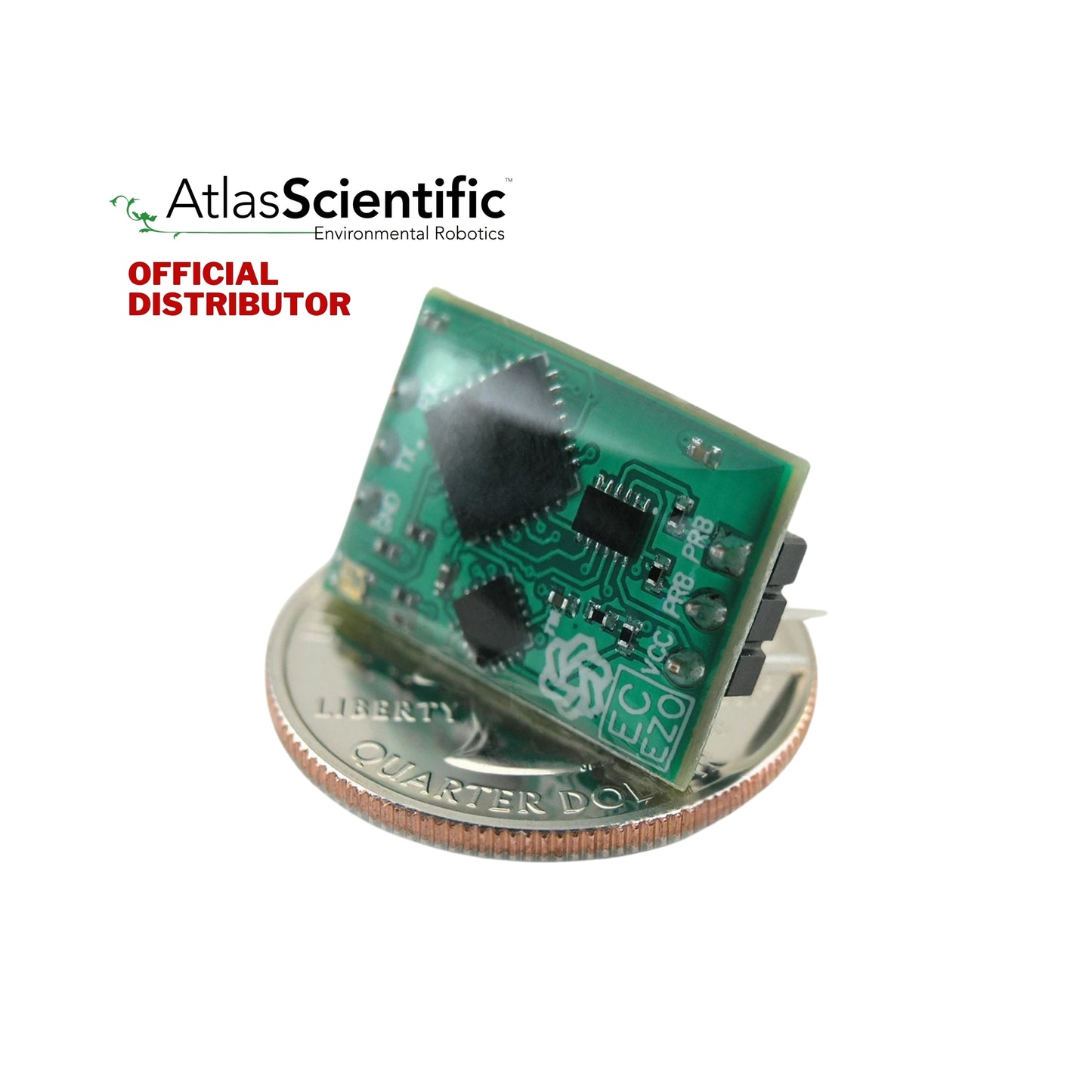

• Size is 13.97 x 20.16 mm / 0.55 x 0.79 inch

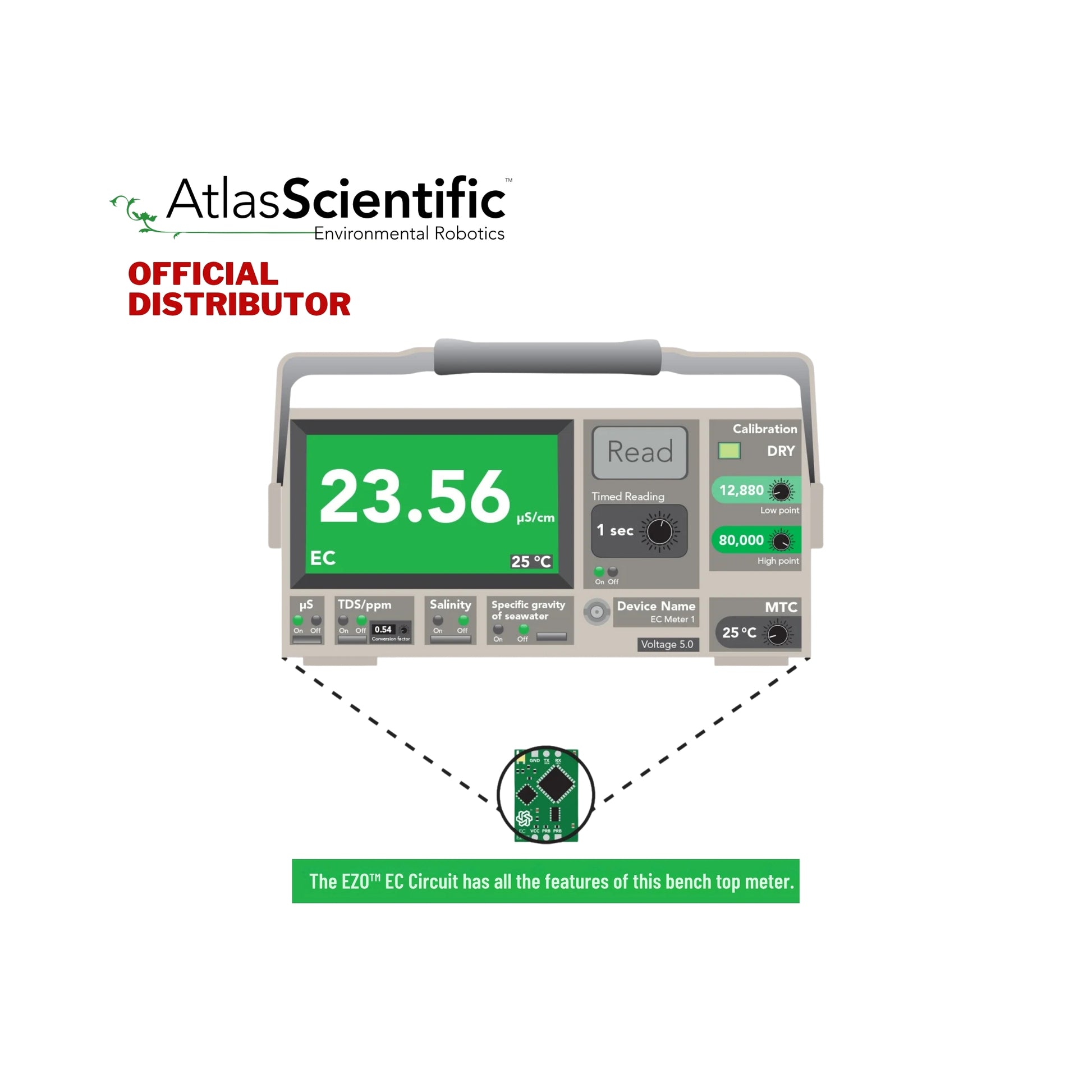

The EZO Conductivity Circuit is a fundamental measurement of water chemistry. The Atlas Scientific EZO-EC Circuit reads conductivity, salinity, and TDS (PPM). Embedding this module into your machine gives you access to the same accuracy and functionality found in costly bench-top conductivity meters. If you need accurate readings that you can rely on, the EZO-EC circuit is the drop-in solution you have been looking for.

• Reads: Conductivity = µS/cm | Total dissolved solids = ppm | Salinity = PSU (ppt) 0.00 - 42.00 | Specific gravity (sea water only) = 1.00 - 1.300
• Range: 0.07 - 500,000+ µS/cm
• Accuracy: +/- 2%
• Response time: 1 reading per sec

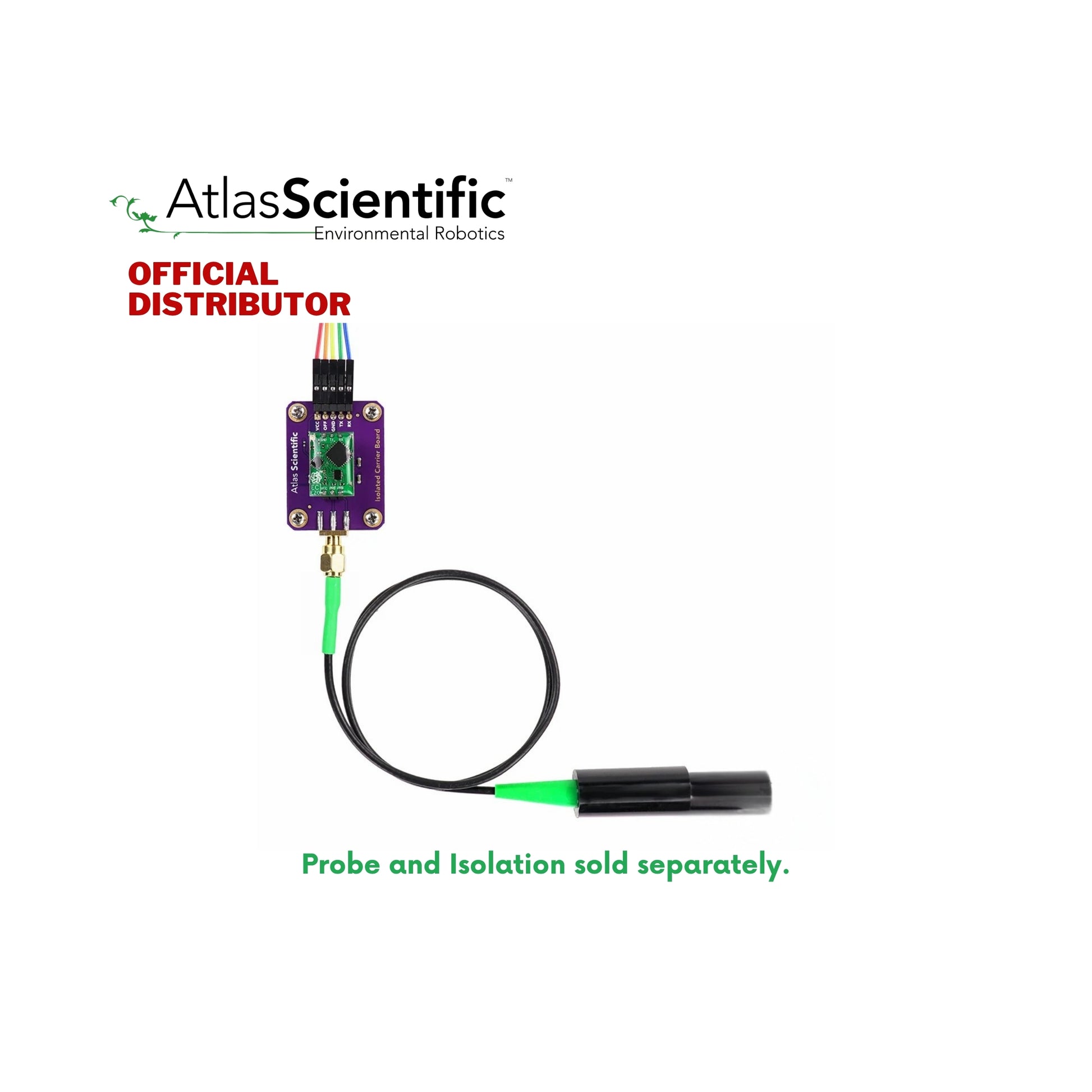

• Supported probes: K 0.1 - K 10 any brand
• Calibration: 2 or 3 point
• Temp. compensation: Yes
• Data protocol: UART and I2C
• Default I2C address: 100 (0x64)
• Operating voltage: 3.3 - 5 V
• Data format: ASCII
• Weight: 1.77 g
