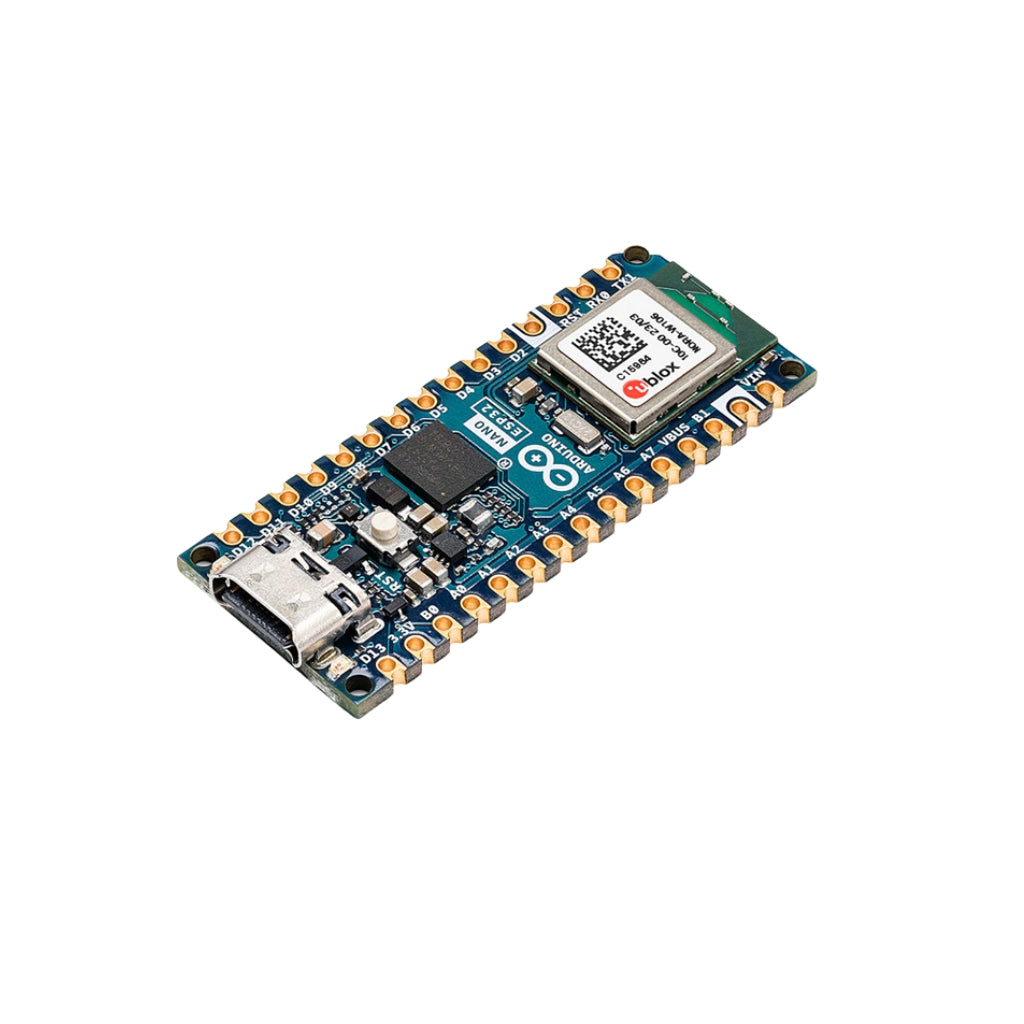

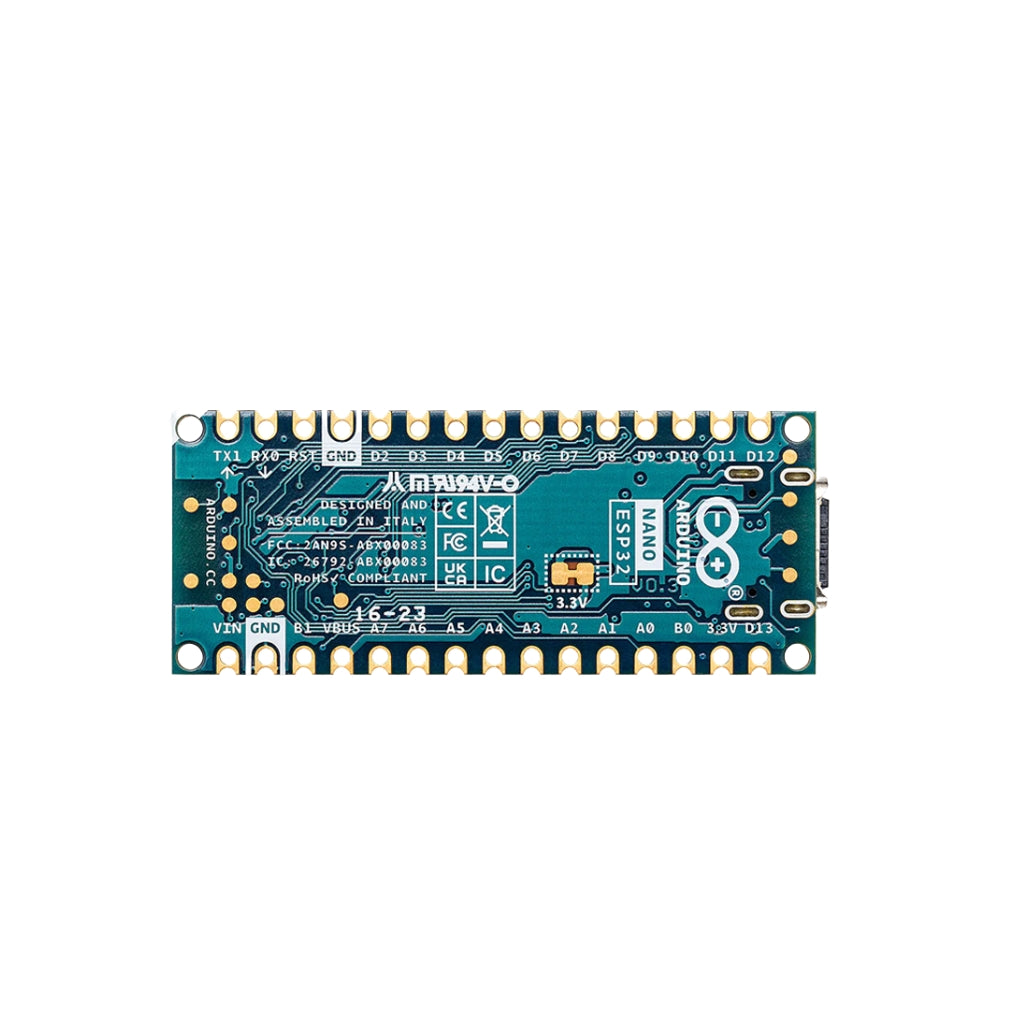

. Introducing the Nano ESP32, a powerful addition to the Arduino ecosystem that brings the popular ESP32-S3 to the world of Arduino and MicroPython programming. Whether you're a beginner stepping into the world of IoT or MicroPython, or an advanced user looking to incorporate it into your next product, the Nano ESP32 is the perfect choice. It covers all your needs to kick-start your IoT or MicroPython project with ease.
Tech Specs

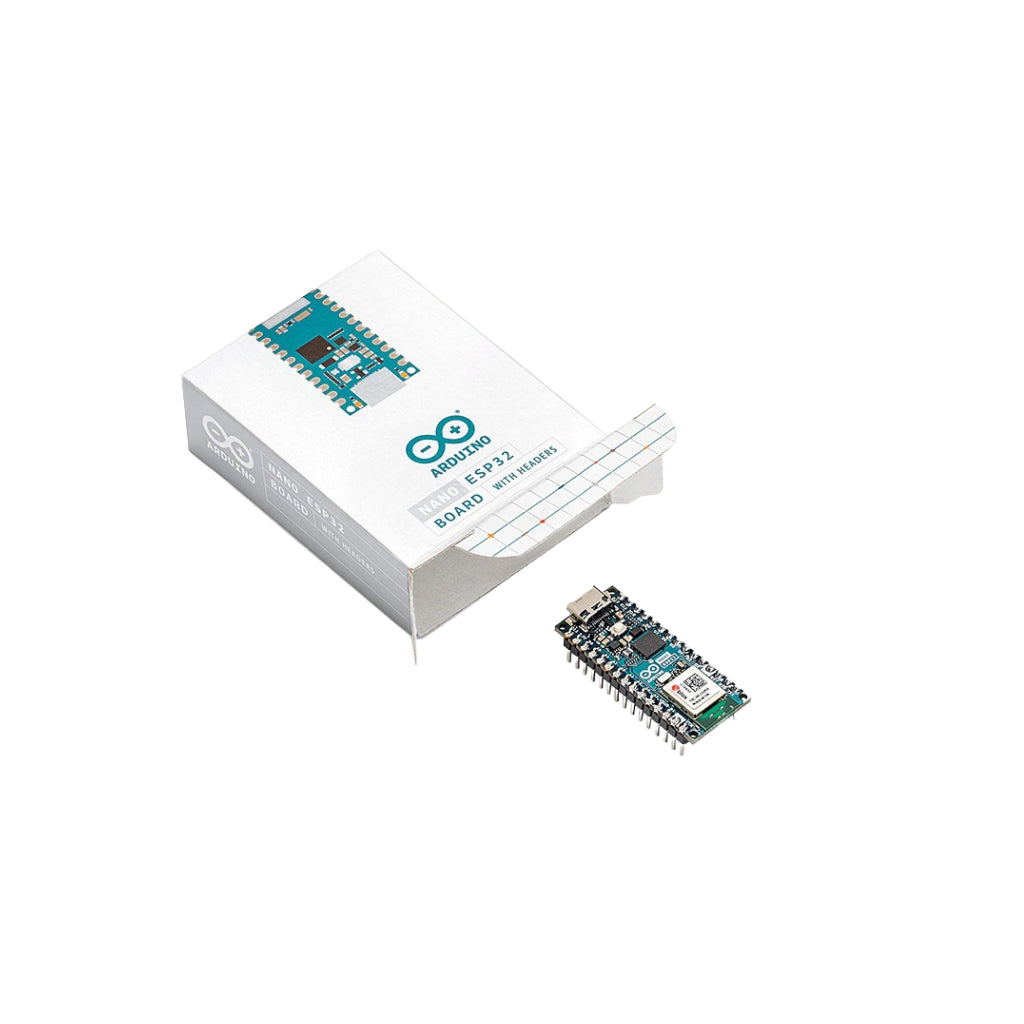

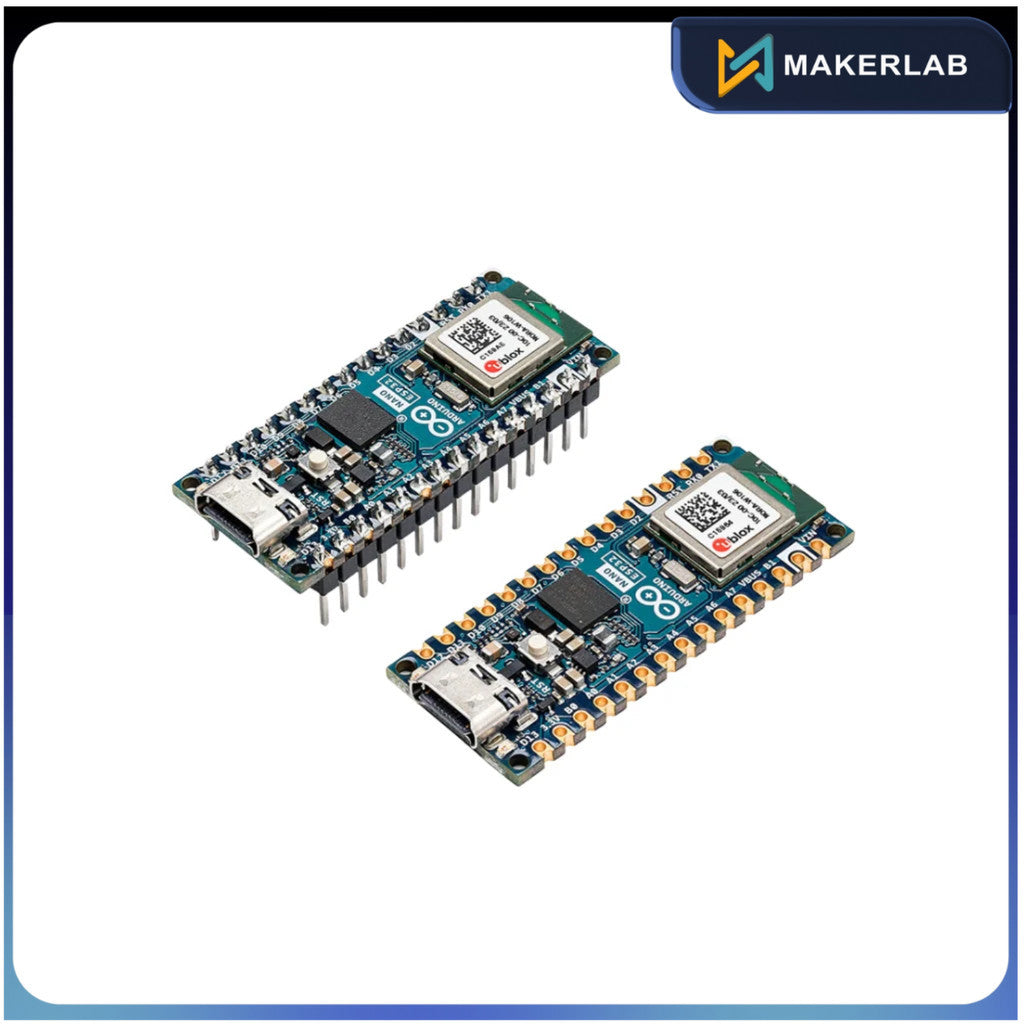

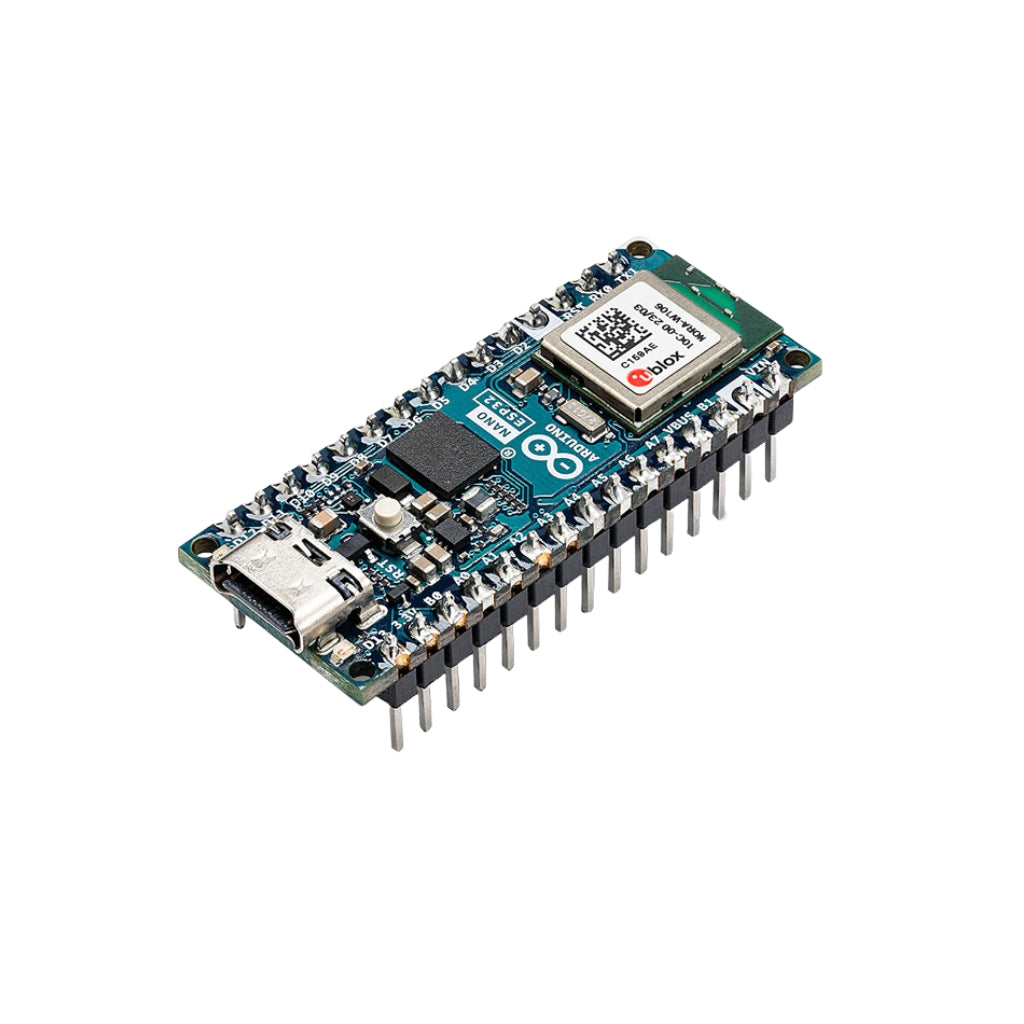

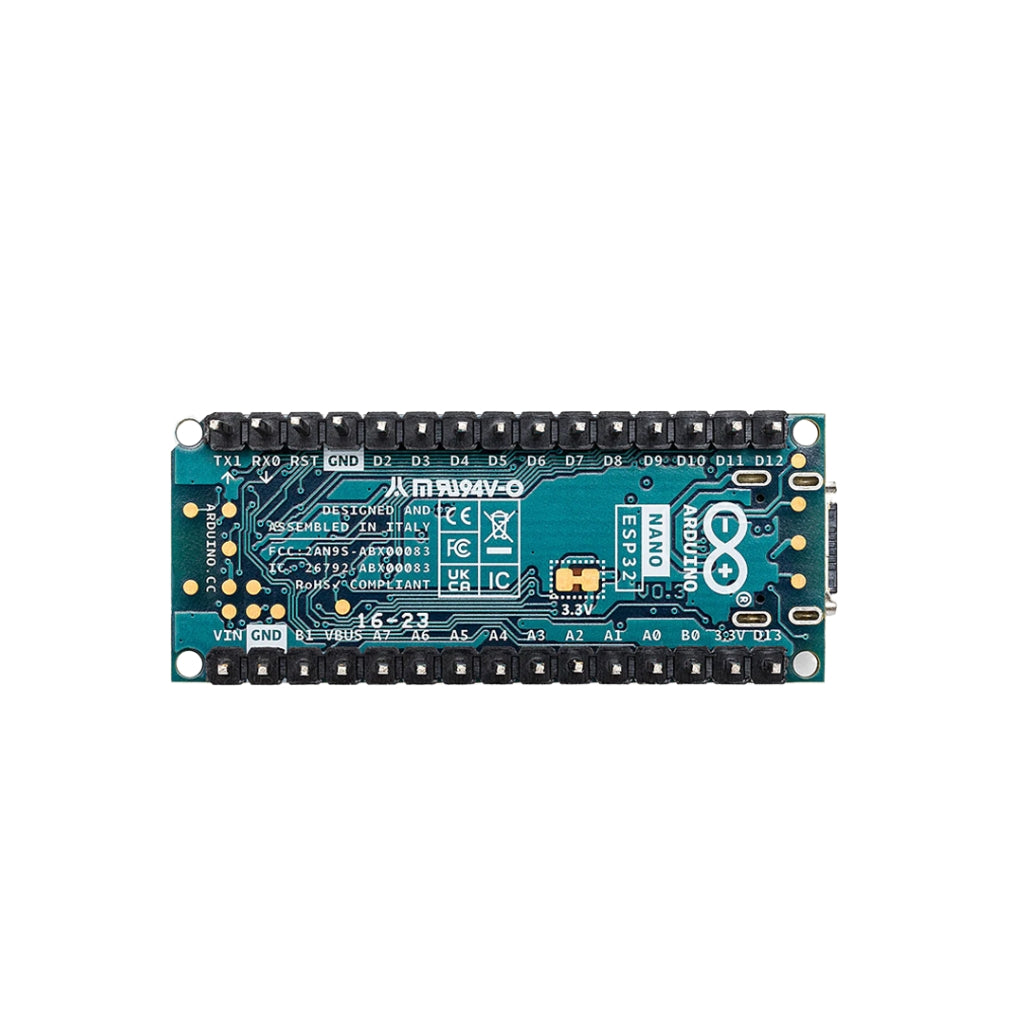

- Board: Arduino® Nano ESP32 and Arduino® Nano ESP32 with Headers
- SKU: ABX00092
- Microcontroller: u-blox® NORA-W106 (ESP32-S3)
- USB connector: USB-C®
- Built-in LED Pin: 13
- Built-in RGB LED pins: 14-16
- Digital I/O Pins: 14
- Analog Input Pins: 8
- PWM Pins: 5
- External Interrupts: All digital pins
- Wi-Fi®: u-blox® NORA-W106 (ESP32-S3)
- Bluetooth®: u-blox® NORA-W106 (ESP32-S3)
- UART: 2x
- I2C: 1x, A4 (SDA), A5 (SCL)
- SPI: D11 (COPI), D12 (CIPO), D13(SCK). Use any GPIO for chip select (CS)
- I/O Voltage: 3.3V
- Input Voltage(nominal): 6-21V
- Source Current per I/O Pin: 40mA
- Sink Current per I/O Pin: 28mA
- Processor: up to 240 MHz
- ROM: 384kB
- SRAM: 512kB
- External Flash: 128 Mbit (16 MB)
- Width: 18mm
- Length: 45mm
