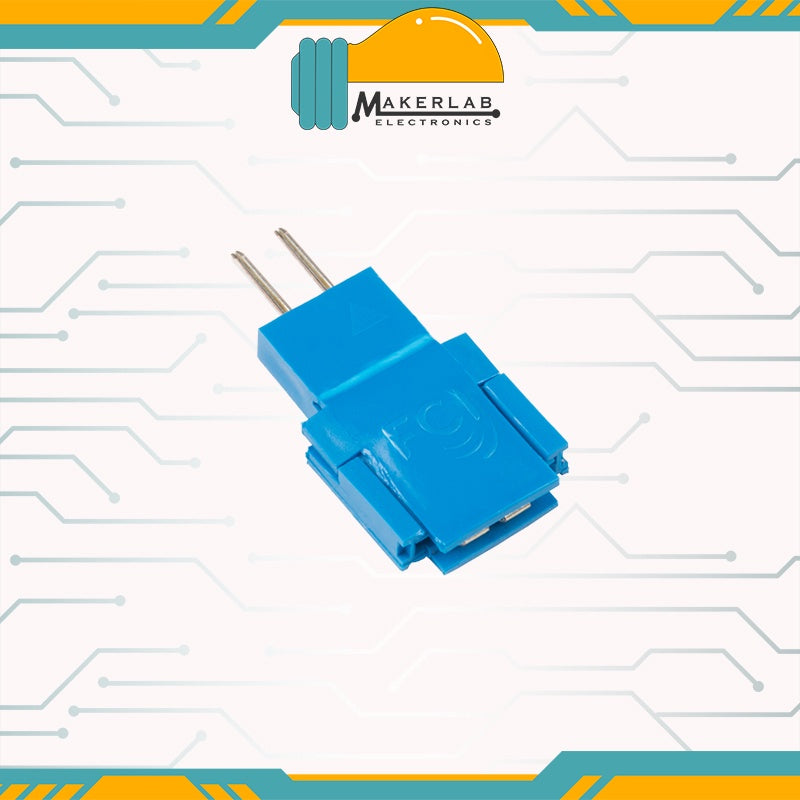

Amphenol FCI Clincher Connector (2 Position, Male)

These Clincher connectors from Amphenol FCI can be used to terminate Flat Flexible Cables (FFCs) to an easy-to-use standard header. Simply insert the end of the cable into the connector and press it closed. The teeth inside the connector will "clinch" around the conductors and break them out to two male 0.1" spaced pin headers!

Though the Clincher connector can be used with FFCs, we also like to use them with our FlexiForce sensors and other flex/force sensors

Note: Please be aware that we will not be able to accept returns on this connector if it has been closed. Sorry for any inconvenience this may cause.

Documents:

• Datasheet
• Dimensional Drawing
• Product Specification
