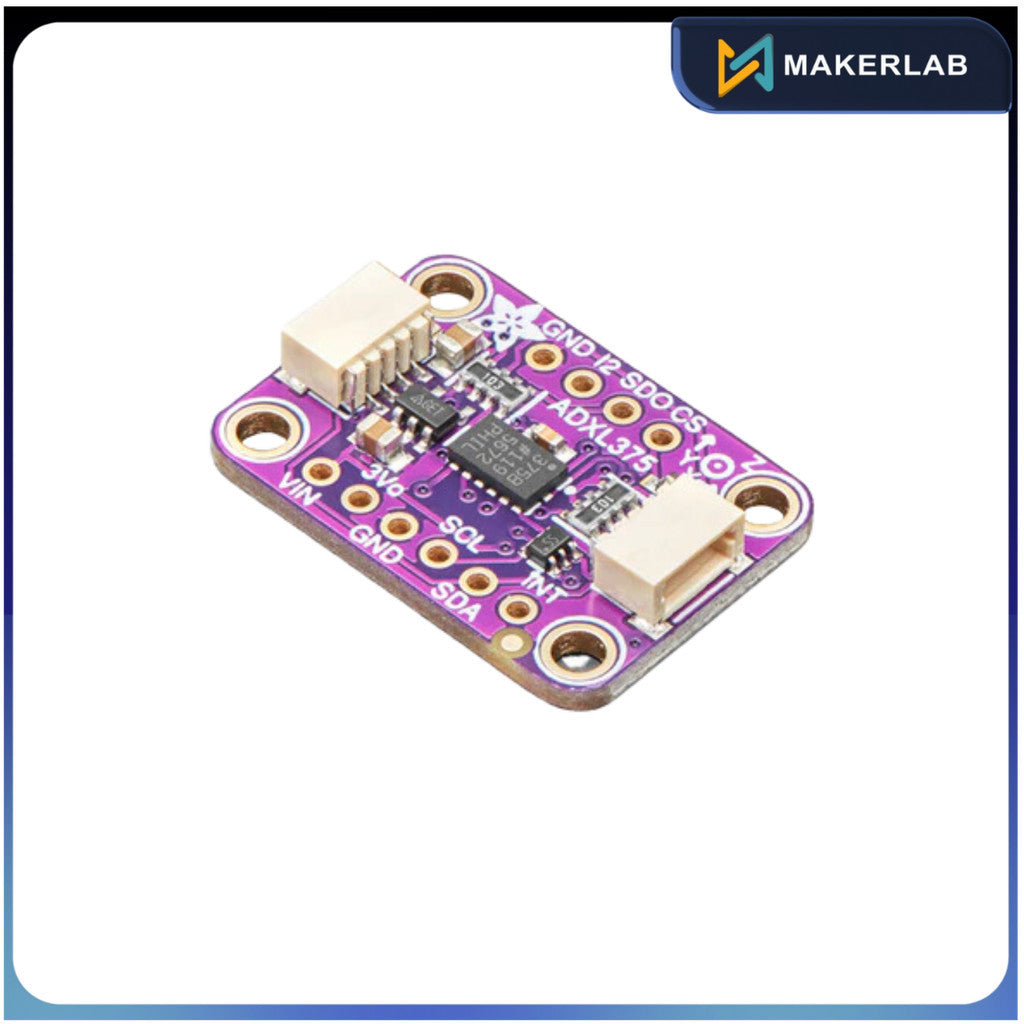

Adafruit ADXL375 - High G Accelerometer (+-200g) with I2C and SPI - STEMMA QT / Qwiic Sensor
Couldn't load pickup availability
Share
About the Product
This accelerometer can sense up to 200 g's of force in three axes of measurements (X Y Z) and pins that can be used either as I2C or SPI digital interfacing for easy integration into any fast project. Built-in motion detection features make shock detection easy to implement. There are two interrupt pins, and you can map any of the interrupts independently to either of them.
The ADXL375 looks and acts nearly identically to its specifications to the little sisters ADXL345 and ADXL343. Those are only +-16g max and have adjustable ranges. This sensor acts and looks the same except that you cannot change the range, and it's fixed at 200g. Otherwise, existing library code will 'just work' so if you happen to be using something other than Arduino or CircuitPython, the port is pretty easy, and code written for the '345/'343 will likely work on the '375 with just a scaling adjustment.
Specifications:
Uses I2C address 0x53 (default) or 0x1D
Bandwidth of up to 1 kHz
Shock event detection
Activity/inactivity monitoring
SPI (3- or 4-wire) and I2C digital interfaces
Wide temperature range: −40°C to +85°C
10,000 g shock survival
