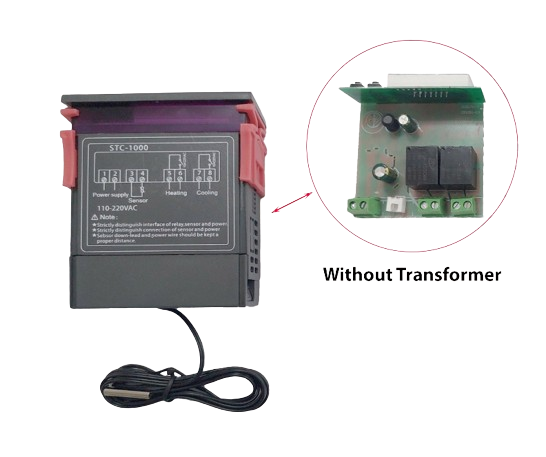

220V Digital STC-1000 STC 1000 STC-3028 STC 3028 Temperature Controller Thermostat Sensor

Features :

Switch the modes between cool and heat;

Control temperature by setting the temperature setting value and the difference value;

Temperature calibration;

Refrigerating control output delay protection;

Alarm when the temperature exceeds the temperature limit or when sensor error.

Specification and size :

Front panel size : 75(L) x 34.5(W)(mm)

Mounting size : 71(L) x 29(W)mm;

sensor length: 1m (including the probe).

Product size75(L) x 34.5(W) x 85(D)mm;

Technical Parameters :

Temperature measuring range: -50 - 99°C;

Resolution: 0.1°C;

Accuracy : ±1°C (-50 - 70°C);

Sensor error delay: 1 minute

Power supply : 220VAC±10%, 50/60Hz;

Power consumption: ≤3W;

Sensor : NTC sensor (1PC);

Relay contact capacity : Cool 10A/250VAC;Heat 10A/250VAC;

mbient temperature : 0 - 60°C;

Storage temperature: -30 - 75°C;

Relative humidity: 20% - 85% (No condensate).

Package includes :

1 x 220V Mini Digital Temperature Controller Thermostat

1 x Temperature sensor probe with 1M cable

1 x Instruction Manual
