134N3P 5V Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board USB Charger
134N3P 5V Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board USB Charger
In stock
SKU:MLE00293
Regular price
₱28.00
Regular price
Sale price
₱28.00
Unit price
per
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
Product Description

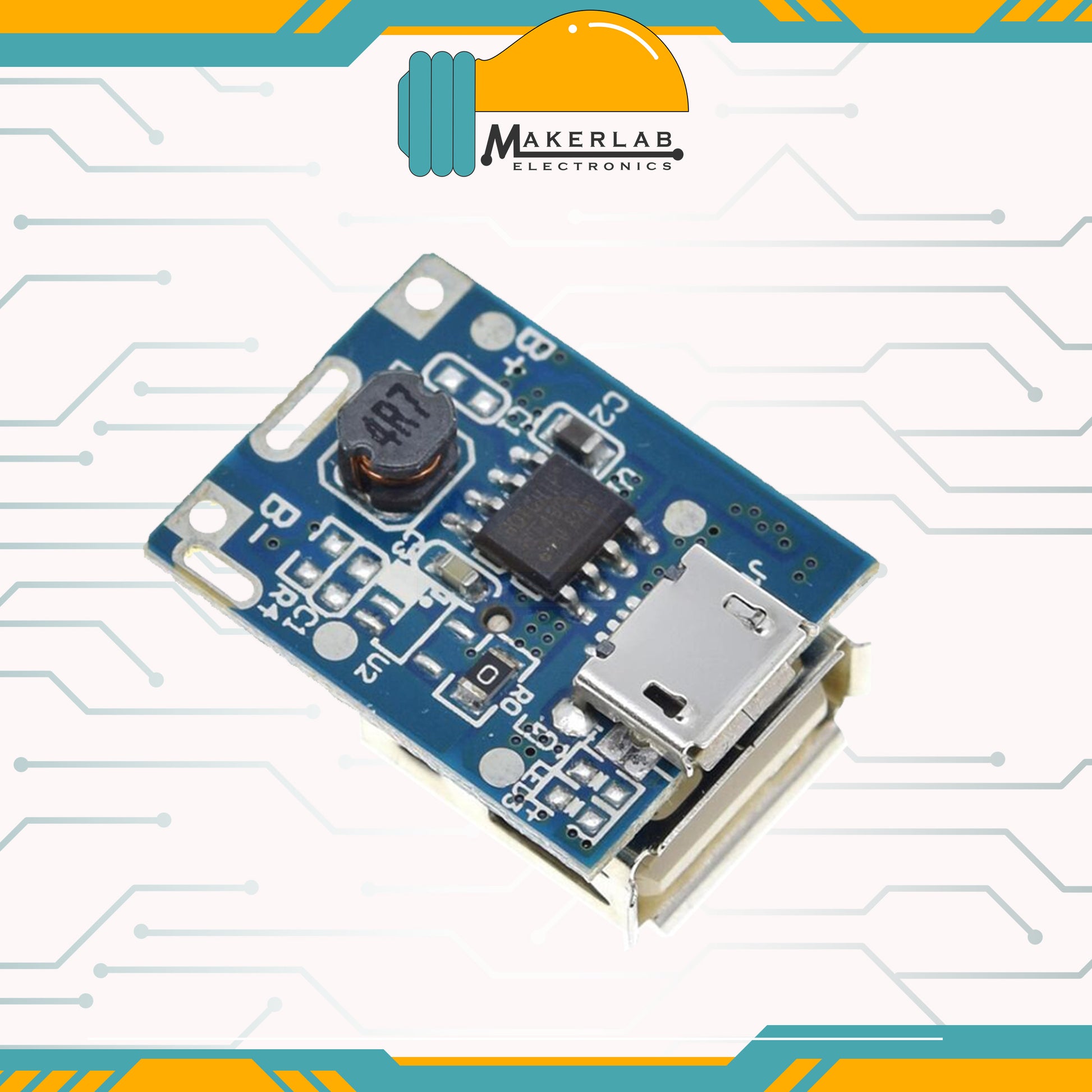

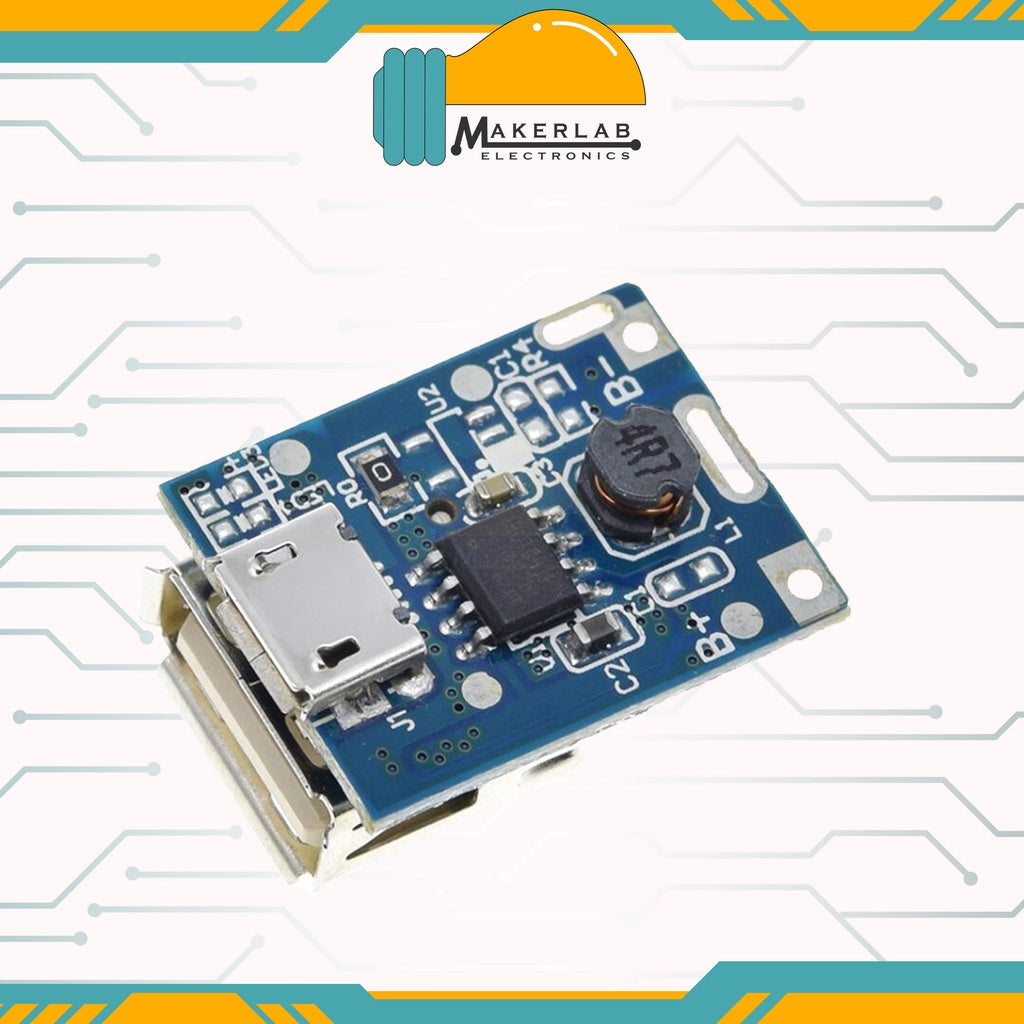

134N3P
Features:
Charging and discharging indication
Internally installed charging and discharging power MOS
Preset 4.2V charging voltage, precision ±1%
Max 8uA standby current
Integration charging management and discharging management
Intelligent temperature control and over-temperature protection
Integration output over-voltage protection,short circuit protection,overload protection
Integration overcharging and over-discharging protection
Support trickle mode and zero voltage charging
When charging: red light flashing
Full charged: red light for a long time
Specifications:
Input Voltage: 3.7V~5.5V
Charging Current: 1A(max)
Output Current: 1A(max)
Output voltage: 5V
BAT Discharging Stop Voltage: 2.9V
Discharging Efficiency: 85%(input 3.7V output 5V/1A)

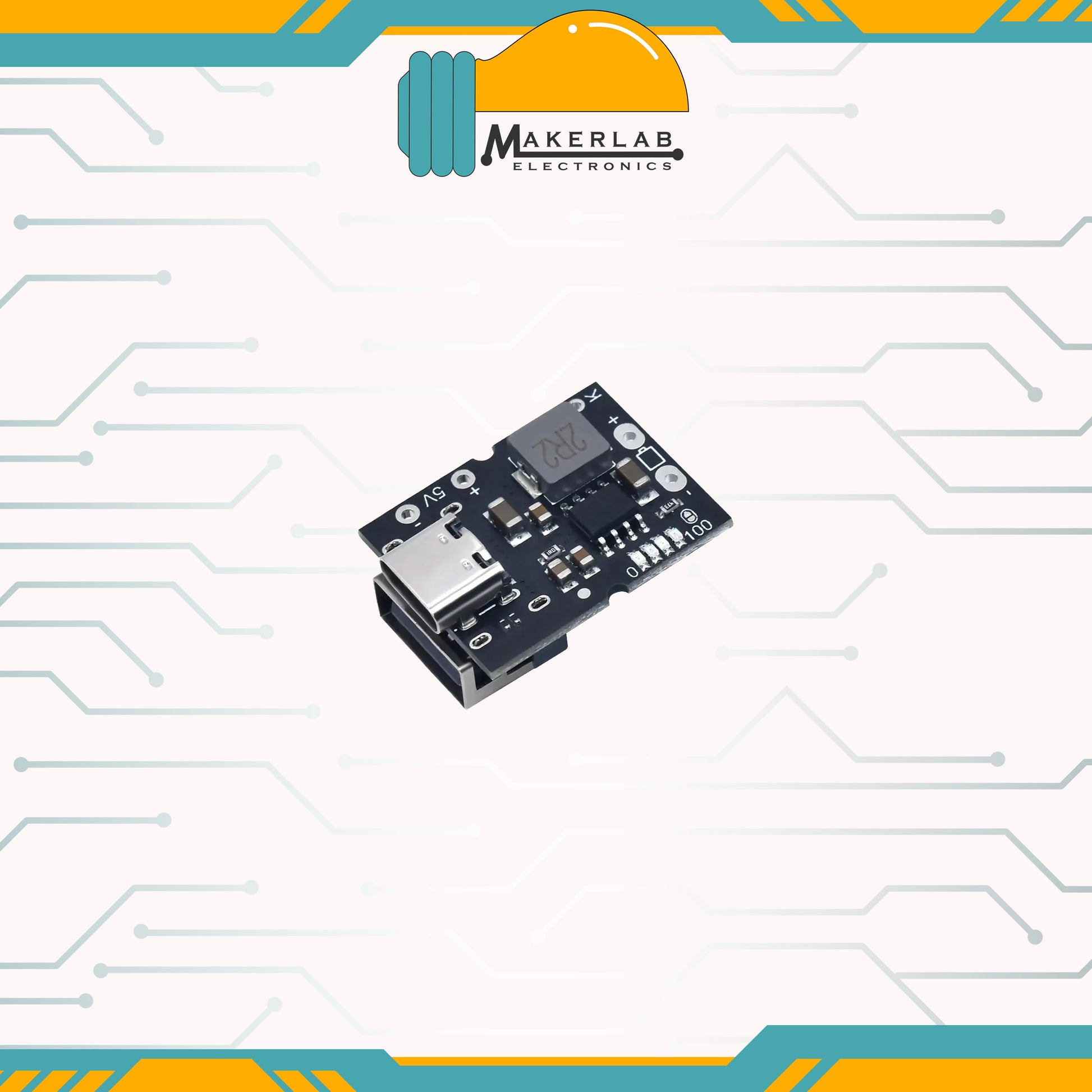

Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging
Features:
The output will be turned off when the load current is continuously less than 50mA.
Support external buttons, connect the button to point K and the negative output, short press to turn on the power display and turn on the 5V output, and two short presses will turn off the power display and turn off the 5V output.
When the charging current drops to 100mA after reaching the final float voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.1V, the charging cycle restarts.
When the battery voltage is lower than 2.8V, the battery will be precharged with a current of 180mA.

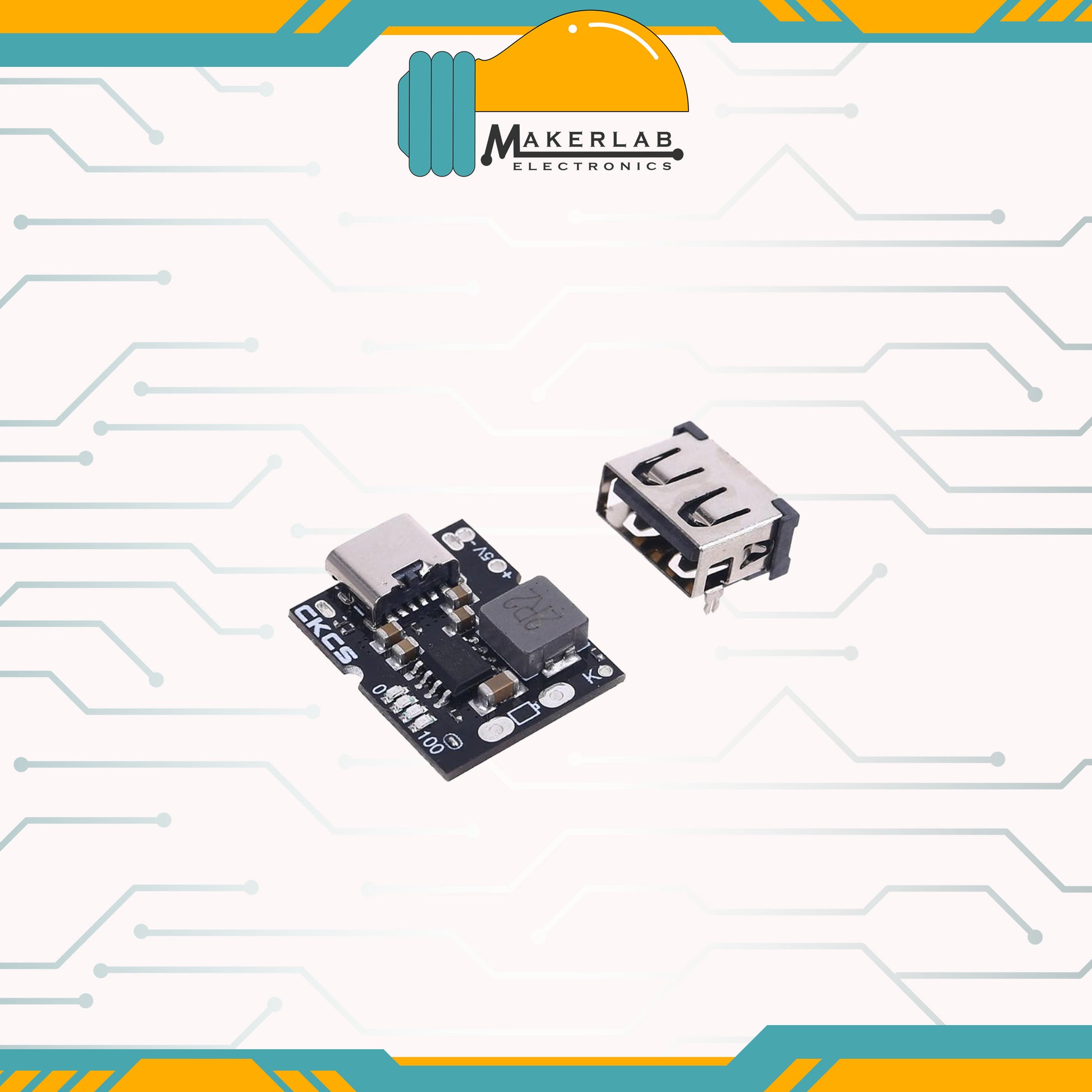

The USB-A female socket welding position is provided on the back of the product, and the female socket can be manually installed.
Support charging and discharging.
Specifications:
Input voltage range: 5 ~ 5.5V
Charging cut-off voltage: (4.2V/4.35V) ±0.5%:
Charging current: 2.4A±5%
Boost output voltage: 5V5.15V (wire loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5V2A Output)
Battery end quiescent current: 30uA
Material: Metal and P1astic
Size: approx.18x23mm/0.71x0.91in
Color: As pictures shown
