Zumo Chassis Kit (No Motors)

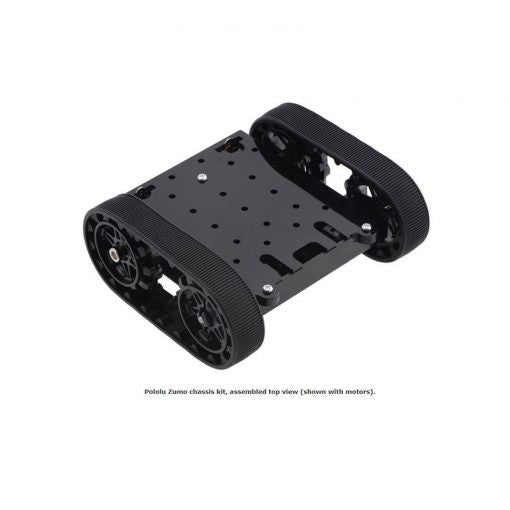

The Zumo chassis kit contains the components necessary to build a small, high-performance tracked robot platform that is compact enough to qualify for Mini Sumo competitions. The chassis is made from black ABS plastic and has sockets for two micro metal gearmotors and a compartment for four AA batteries(motors and batteries are not included). The battery compartment terminals protrude through the chassis and can be accessed from the top side. A black acrylic plate is included with the chassis. This plate holds the motors in place and can be used for mounting your electronics, such as your microcontroller, motor drivers, and sensors.

Pololu Zumo chassis kit components.

The drive system consists of two black silicone tracks, one on each side, that are each supported by a freely spinning idler sprocket and a motor-driven drive sprocket (see the Motors section below for more information on how to select appropriate motors for your robot). These tracks are also available separately in two different lengths and three different sprocket colors.

Dimensions:

Documents:

• Pololu Zumo Chassis User’s Guide (Printable PDF)
  • User’s guide for the Pololu Zumo chassis.
• Zumo chassis acrylic mounting plate design file
• 3D model of the assembled Zumo Chassis Kit
  • Note: this model includes micro metal gearmotors that are sold separately from the Zumo Chassis Kit.
