• Application
• Research institutes
• Electronics services
• Industrial institutes
• Electronic industry
• Education and schooling
• Laboratory equipment

Features:

• High quality and reliability
• Clear digital LED displays
• Operation in voltage (CV) or current (CC) stabilization mode
• One main and 2 auxiliary outputs
• Communication with the PC enabling the parameters to be set by the program
• Protection against short circuit and overload
• Built-in fan
• The device memory can save up to 60 power profiles, which makes work much easier
• Thermal fan switch
• Ability to work with a current limitation of 990mA (indications with an accuracy of 1mA) and 10A (indications with an accuracy of 10mA)

Technical specifications

• Supply voltage: 220V AC ± 10%, 50 / 60Hz
• Working environment: -10 ÷ 40 ° C, RH <90%
• Storage environment: -10 ÷ 40 ° C, RH <80%
• Power: 560W

Voltage stabilization

• The output voltage is adjustable in the range: 0 - 30V in a linear way
• Voltage stabilization factor: 0.01% + 3mV
• Load stabilization factor: 0.01% + 3mV
• Recovery time: 100?s Ripple and noise: 0.5 mVrms (effective value)

Current stabilization

• The output current is adjustable in the range: 0-10A in a linear manner
• Current stabilization factor: 0.1% + 3mA
• Load stabilization factor: 0.2% + 3mA
• Ripple and noise: 2 mArms (effective value)

Included

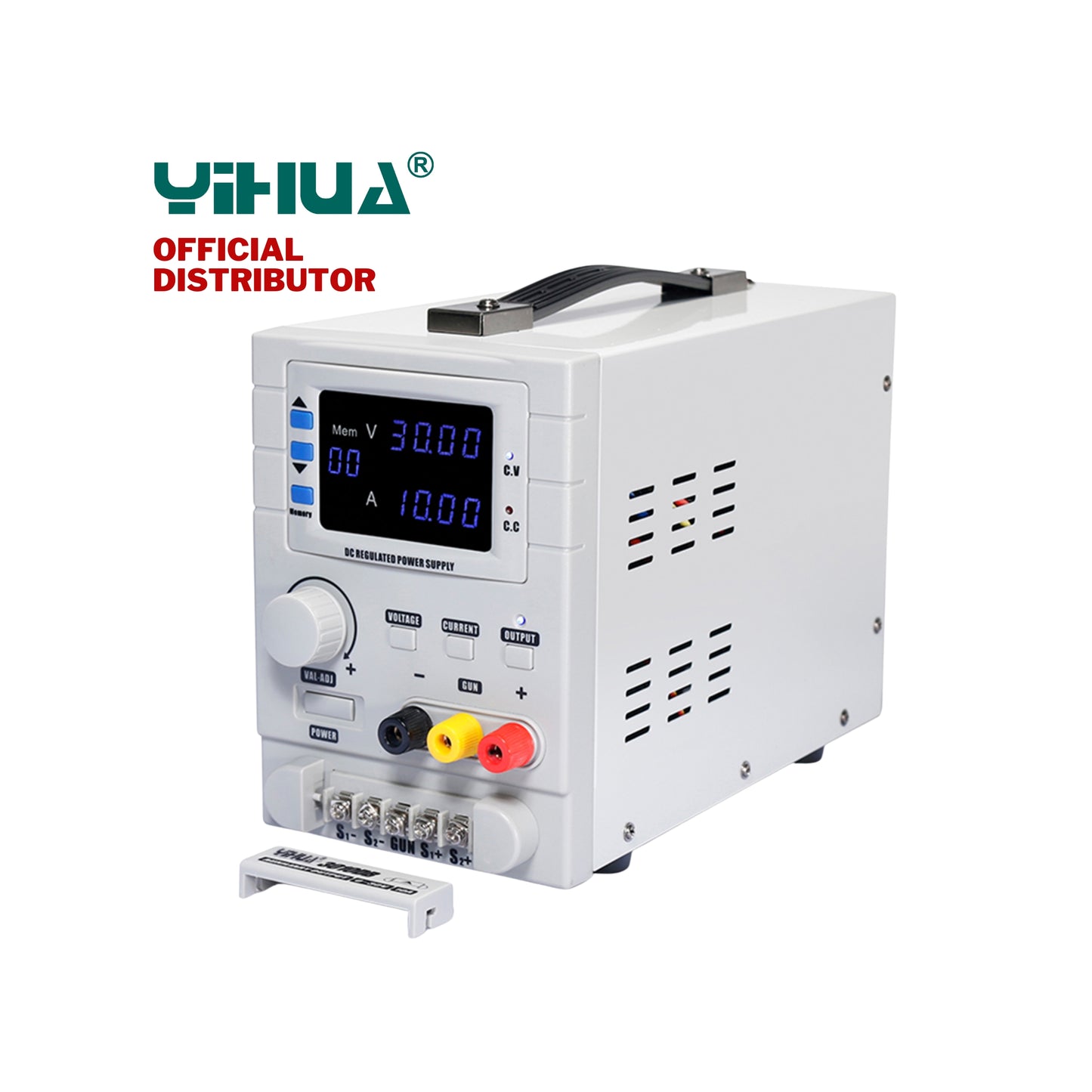

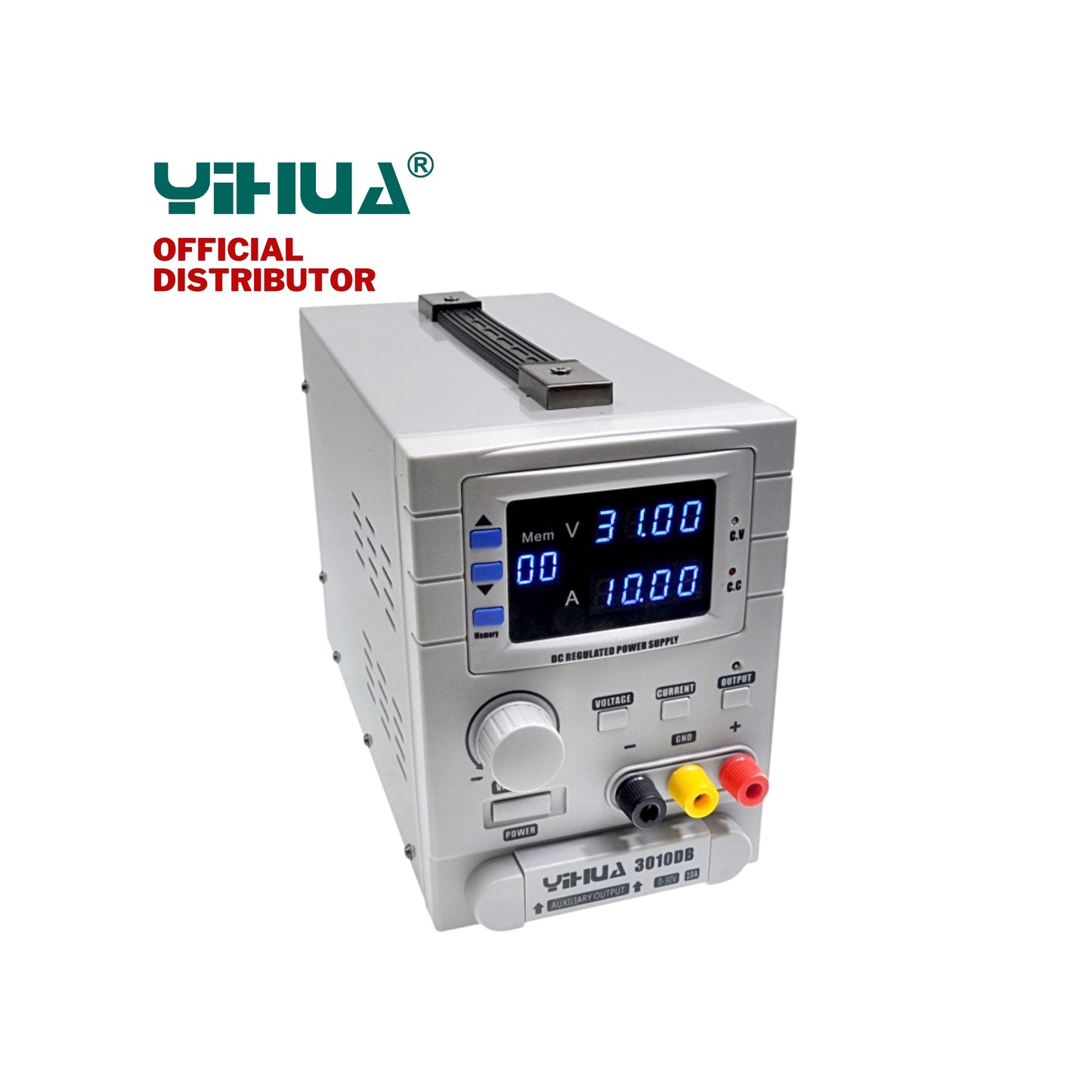

• Laboratory power supply Yihua 3010DB
• Test leads ended with crocodile clips
• User manual
