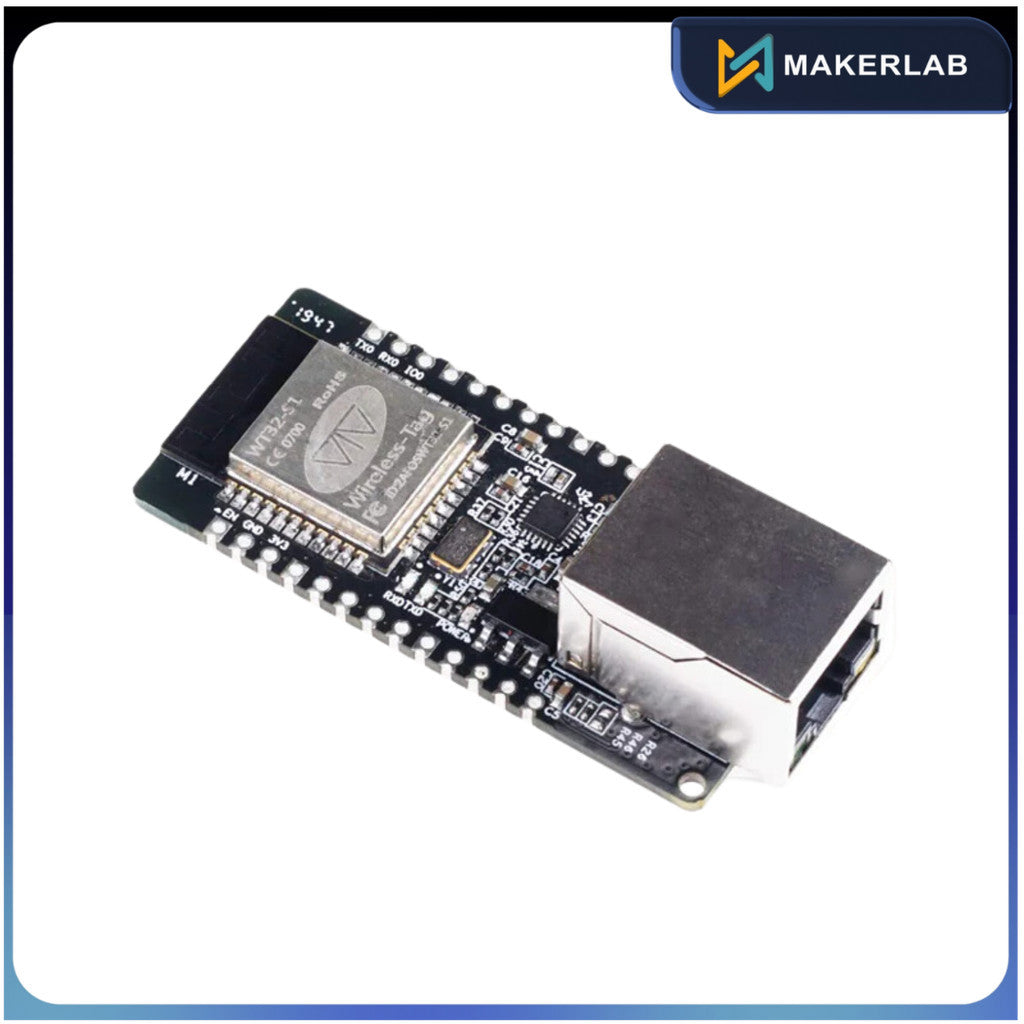

WT32-ETH01 Unsoldered ESP32 Module Ethernet WiFi Bluetooth Development Board with RJ45 Ethernet Port

⚠️ The issue with the top soldered pins has been resolved, they are now shipping with separate unsoldered pins

• WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors. The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios. ESP32 series IC is an integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOC, with ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption. ESP32 Module: WT32-S1

• 240MHz dual core microprocessor

• 4MB SPI flash memory

• Oboard 10/100Mbps RJ45 Ethernet (LAN8720A PHY)

• 802.11n WIFI • Bluetooth 4.2
