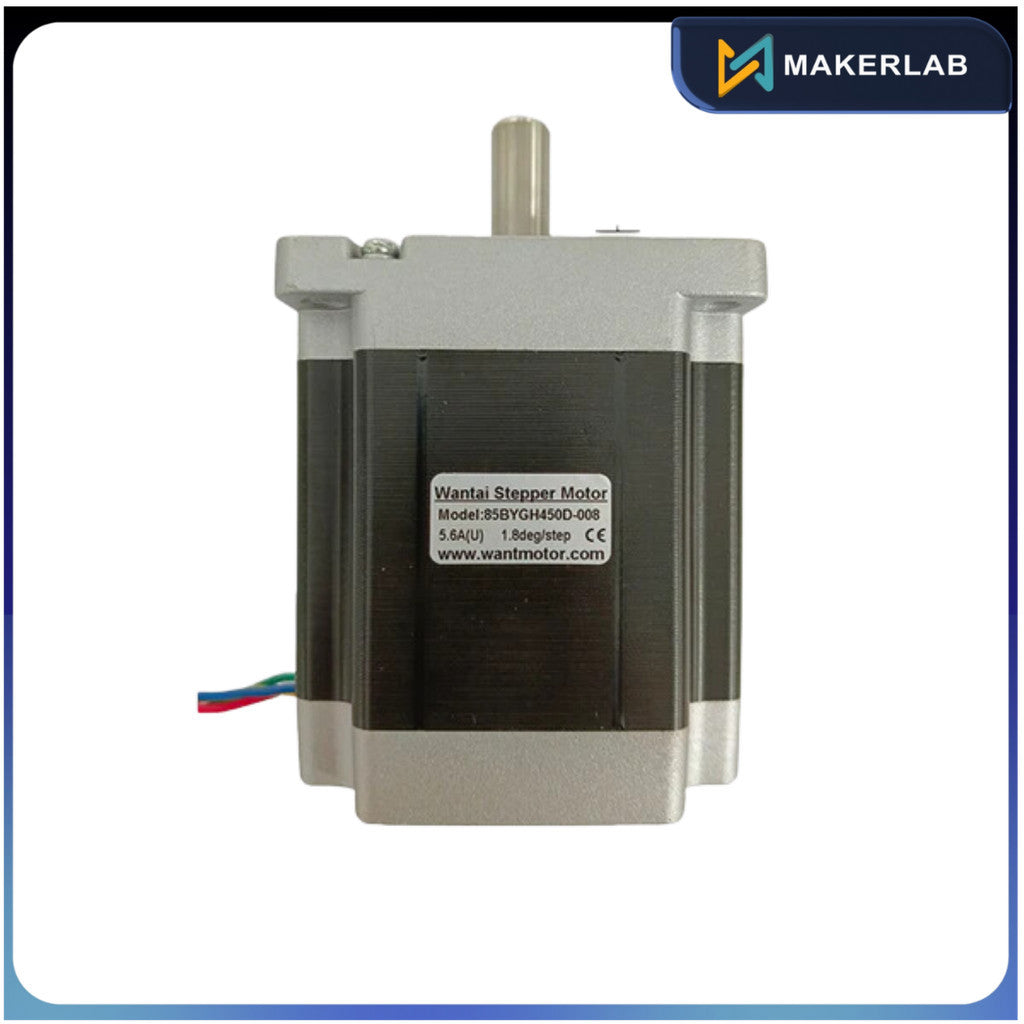

Wantai Stepper Motor Nema 34 70kg-cm 5.6A 100mm | Model 85BYGH450D-008

85BYGH Stepper Motor has the characteristics of low noise, low vibration, low heat generation, and fast response speed. It is suitable for frequent start and stop occasions. It has high reliability and stability, high speed and smooth stop, no zero-speed vibration, stable operation, and wide range used in the engraving machine industry.

Electrical Specifications
Model: 85BYGH450D-008
Step Angle( °): 1.8
Motor Length L(mm): 100
Rate Voltage(V): 2.13
Rate Current(A): 5.6
Phase Resistance(Ω): 0.38
Phase Inductance(mH): 4.1
Holding Torque(kg.cm): 77
Lead Wire(NO.): 4
Rotor Inertia(g.cm²): 1700
Detent Torque(N.cm): 9.5
Motor Weight(kg): 3.5
