SKU:MLE03507

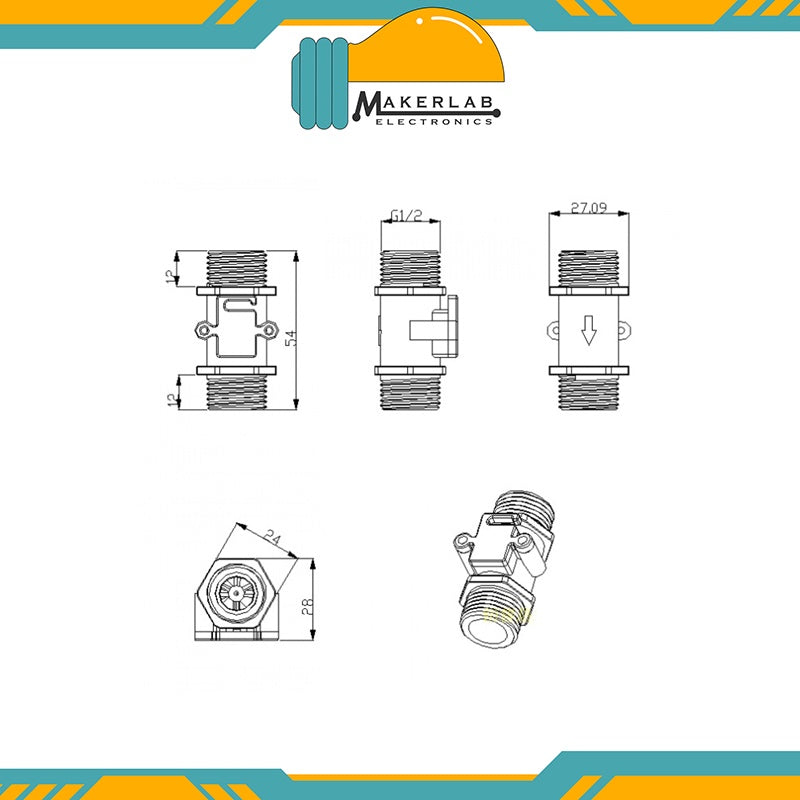

Transparent Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V
₱250.00
₱250.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
In stock
Couldn't load pickup availability
About the Product
Transparent Water Flow Sensor
With this sensor you can easily measure the flow of liquids (water).
The sensor has a standard 1/2" coupling (21mm) on both sides and is therefore easy to connect to, for example, a Gardena garden system (Gardena coupling not included).
The output of the sensor gives 5 pulses per second with a duty cycle of approximately 50% for each liter of fluid passing through per minute: Q = fpulse /5.
Specifications:
Voltage range: 5-15V
Pulse frequency per L/min: 5Hz
Measuring range: 1-30L/min (with an accuracy of +-10%)
Maximum water pressure: 17.5bar
Working temperature: -25-80°C
Duty cycle pulse: 50% +-10%
Voltage pulse (with 5V as input voltage): 4.7V
Pinout:
Red: Vcc / plus (5-15V)
Black: GND/min
Yellow: Signal
Note: The liquid can only run in one direction, this is indicated by an arrow!
