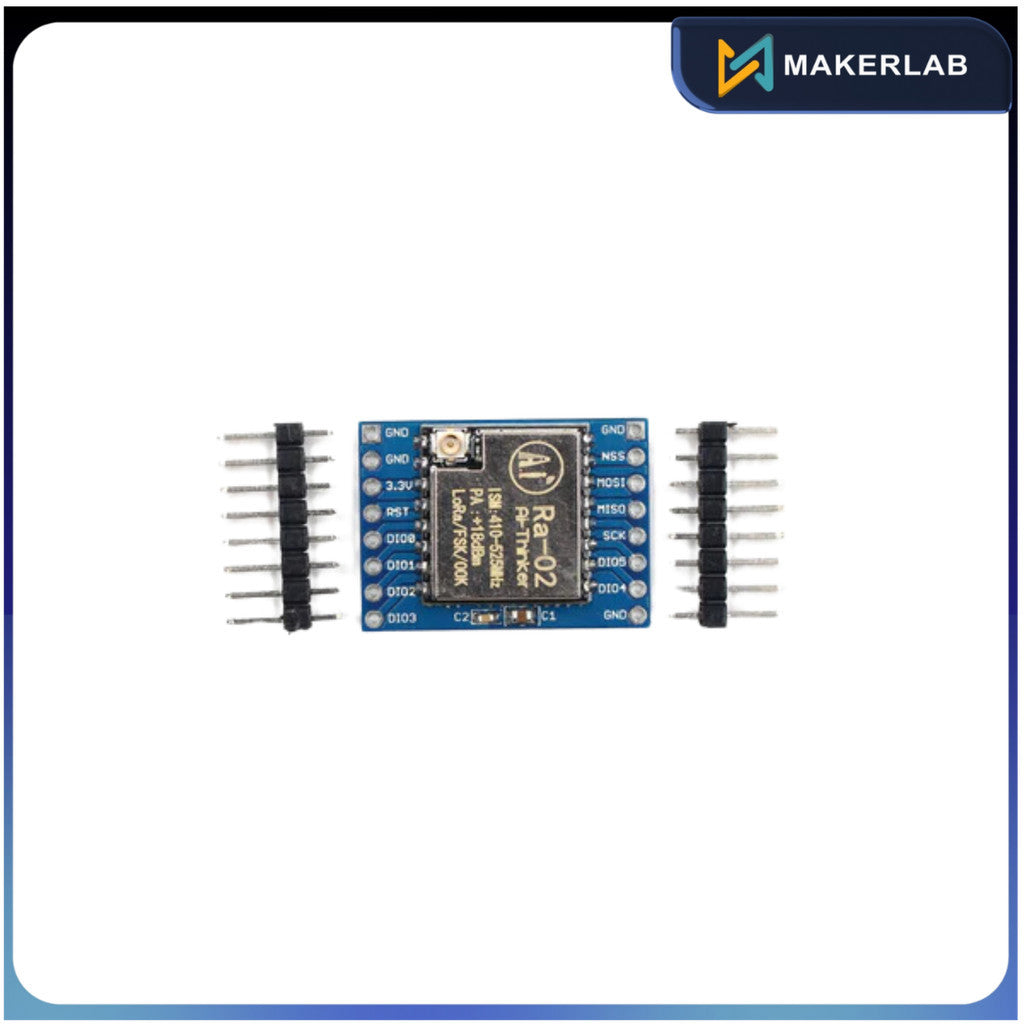

. Ra-02 is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
Description
Specifications
Communication distance: 15KM
Sensitivity: down to -148dBm
Programmable bit rates: up to 300kbps
RSSI dynamic range: 127dB
Wireless frequency: 433MHz
Working voltage: 1.8-3.7v
Working temperature: -40-+80 ?
LoRa Spread Spectrum modulation technology
Constant RF power output at + 20dBm-100mW voltage change
High sensitivity: down to -148dBm
Half-duplex SPI communication
Programmable bit rates up to 300kbps
Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes
127dB RSSI dynamic range
Automatic RF signal detection, CAD mode and very high speed AFC
Packet engine with CRC up to 256 bytes
Small footprint dual-row stamp-hole patch package
Shielded housing
