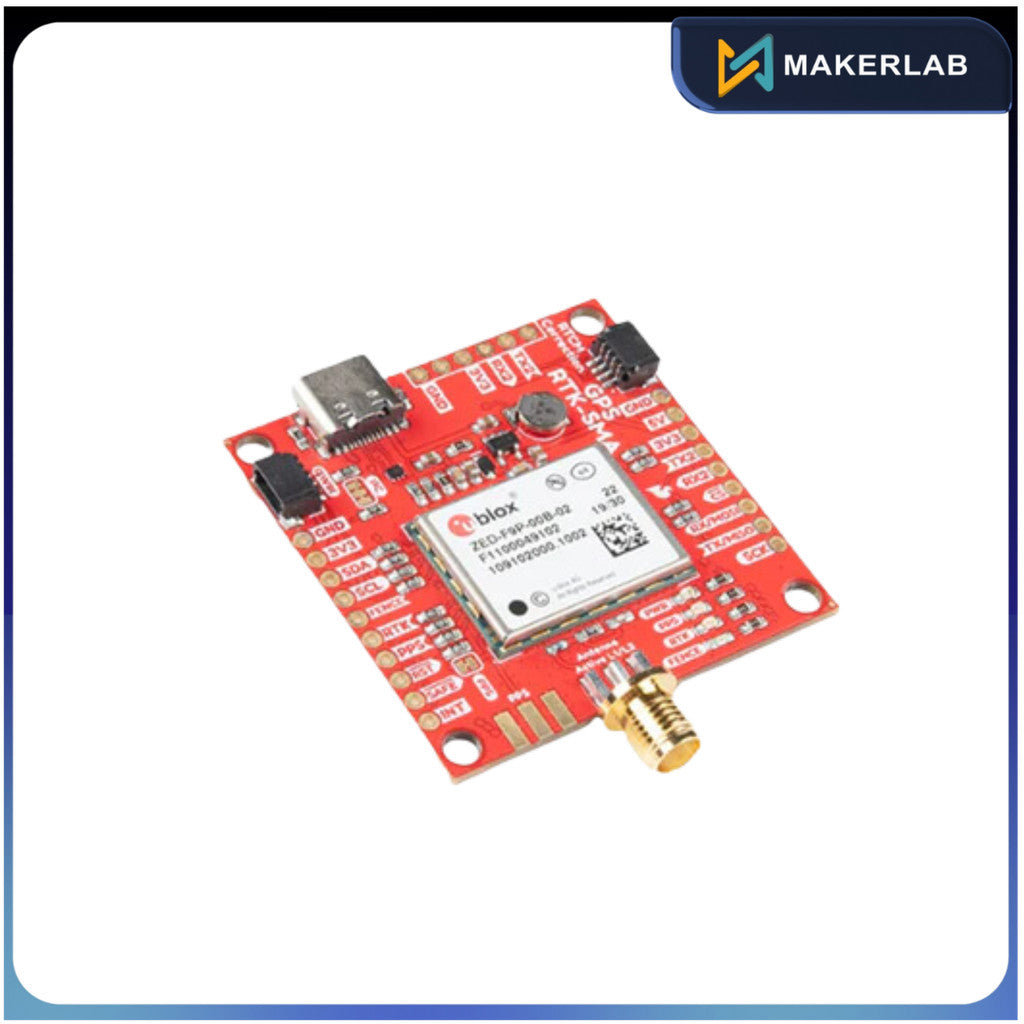

SparkFun GPS-RTK-SMA Breakout - ZED-F9P

SparkFun GPS-RTK-SMA Breakout - ZED-F9P (Qwiic) features the u-blox ZED-F9P module for high-precision GPS applications. The ZED-F9P provides high-accuracy GNSS and GPS location solutions. This includes real-time kinematics (RTK) that is capable of 10mm, three-dimensional accuracy. This board allows for identifying where an object's X, Y, and Z location is within roughly the width of a fingernail. The ZED-F9P is capable of rover and base station operations. The board utilizes the Qwiic system, so no soldering is required to connect it to a system. It still has broken out 0.1"-spaced pins in case a breadboard is used.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields, and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. The Qwiic connectors are also polarized, so they'll be wired correctly, every time, from the start. Users can also daisy chain most Qwiic boards to quickly add additional functionality to a project.


FEATURES
Concurrent reception of GPS, GLONASS, Galileo, and BeiDou
Receives both L1C/A and L2C bands
Voltage: 5V or 3.3V, but all logic is 3.3V
Current: 68mA to 130mA (varies with constellations and tracking state)
Time to First Fix: 25s (cold), 2s (hot)
Max Navigation Rate:
PVT (basic location over UBX binary protocol) - 25Hz
RTK - 20Hz
Raw - 25Hz
Horizontal Position Accuracy:
2.5m without RTK
0.010m with RTK
Max Altitude: 50km (31 miles)
Max Velocity: 500m/s (1118mph)
Weight: 6.8g
Dimensions: 43.5mm x 43.2mm (1.71" x 1.7")
