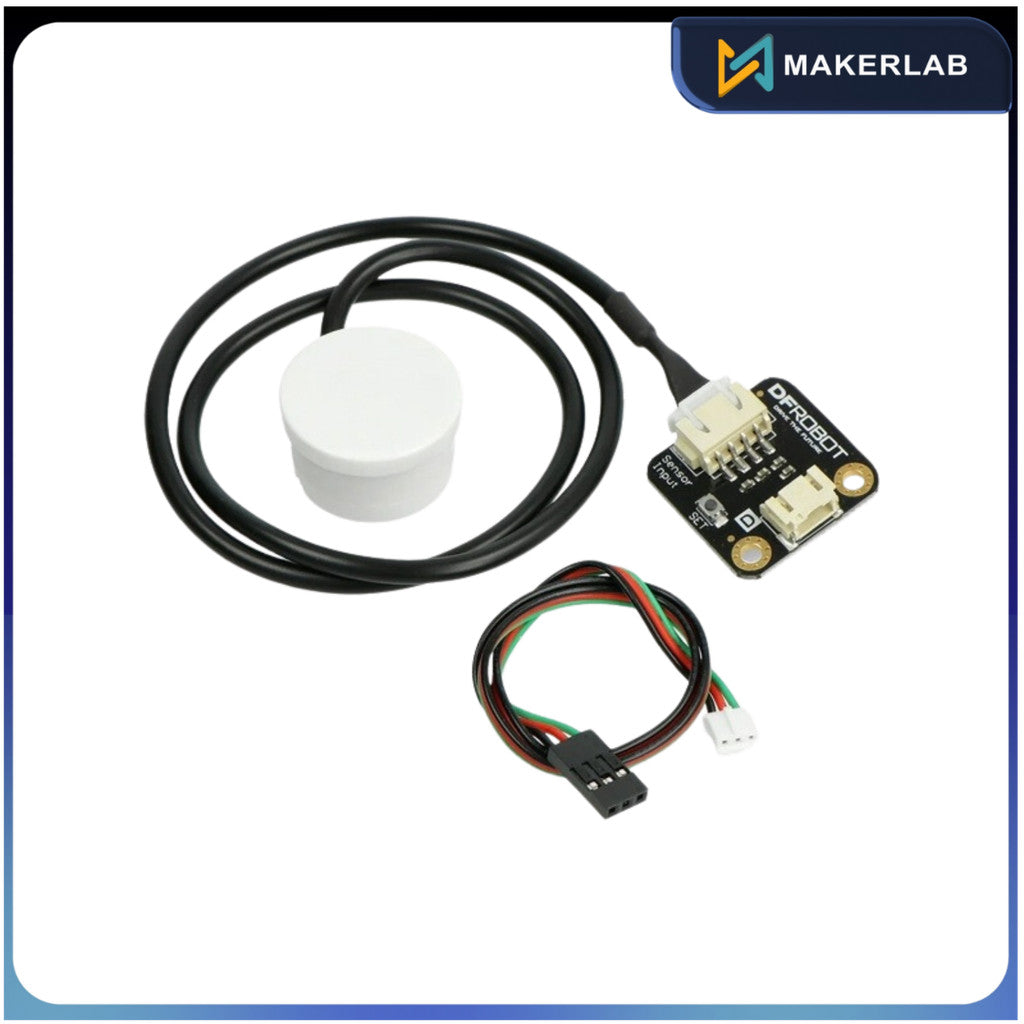

Non-contact Digital Liquid Level Sensor

This Non-contact Digital Liquid Level Sensor utilizes advanced signal processing technology. This sensor uses a powerful chip (XKC-25-T12V) with high-speed operation capacity to achieve non-contact liquid level detection. No contact with liquid makes the module suitable for hazardous applications such as detecting toxic substances, strong acid, strong alkali and all kinds of liquid in an airtight container under high pressure.

Specifications:

• Operating Voltage (InVCC): DC 5 ~ 24 V
• Current Consumption: 5 mA
• Output voltage (high level) : InVCC
• Output voltage (low level) : 0V
• Output current: 1 ~ 50 mA
• Response time: 500 ms
• Operating Temperature : 0 ~ 105 ?
• Range for thickness of induction (sensitivity): 0 ~ 13 mm
• Humidity: 5% ~ 100%
• Material: ABS.
• Waterproof performance: IP67
• Dimension : 28 * 28 mm / 1.1 * 1.1 inches
