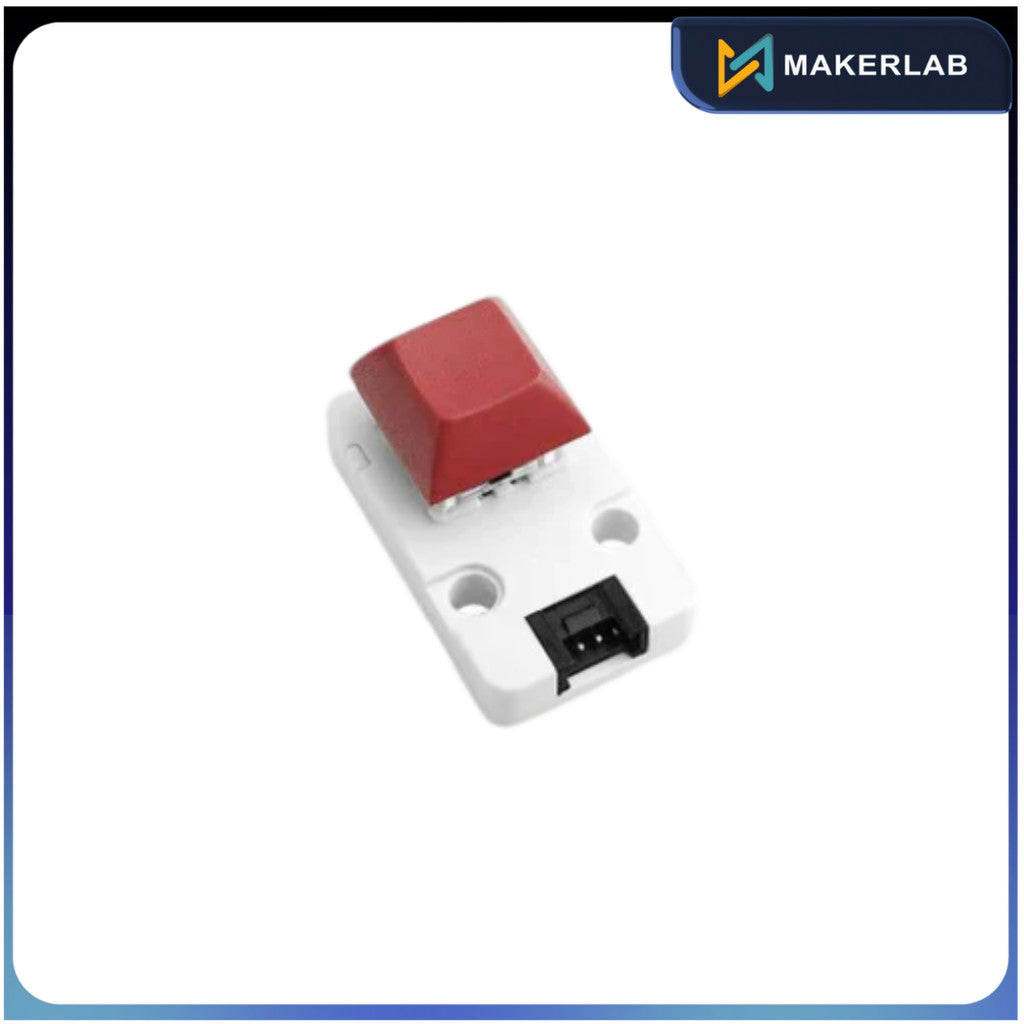

M5Stack Mechanical Key Button Unit

Unit Key is a single mechanical key input unit with built-in RGB LED. The key shaft adopts Blue switch with tactile bump and audible click features. Embedded with one programable RGB LED - SK6812, supports 256 level brightness. Two digital IOs are available for key status and LED control key status and lighting control. Suitable for multiple HMI applications.

Features

Blue switch with tactile bump and audible click

Programable RGB LED - SK6812

Included

1x Unit Key

1x HY2.0-4P Cable (20cm)

Application

HMI

Specifications

Specification Parameters

Power Supply DC 5V

Output Logical Signal DC 3.3V

Standby Current DC5V@2mA

Operating current DC5V@13mA

Net weight 7.6g

Gross weight 13.1g

Product Dimensions 40 * 24 * 22.6mm

Package Size 90 * 135mm
