SKU:MLE04175

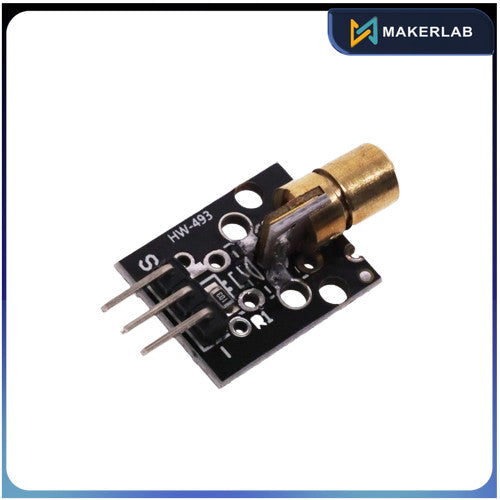

KY-008 650nm Laser sensor Module 6mm 5V
₱35.00
₱35.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱14 with
. Learn More.
. Learn More.Pickup available at Makerlab Cebu
Usually ready in 1 hour
About the Product
Product Description
This breakout board allow controller like Arduino to control laser pointer using GPIO pin. This is a 650nm (Red) laser emitter that breakout the power pin to standard 2.54mm header pin. This is 5V power at 5 mW (milliWatt) only. Quite easy to use, just power the laser with 5.0V or 3.3V.
FEATURES :
Output Power: 5mW
Wavelength: 650nm (Red)
Working Voltage: 3.3V to 5.0V (Better no more than 3v)
Operating Current: less than 40 mA
Laser Shape: Dot
Working temperature: -10 °C ~+40 °C
Housing: Copper
Dimensions: 6.5 x 18 mm
View Product Details
This breakout board allow controller like Arduino to control laser pointer using GPIO pin. This is a 650nm (Red) laser emitter that breakout the power pin to standard 2.54mm header pin. This is 5V power at 5 mW (milliWatt) only. Quite easy to use, just power the laser with 5.0V or 3.3V.
FEATURES :
Output Power: 5mW
Wavelength: 650nm (Red)
Working Voltage: 3.3V to 5.0V (Better no more than 3v)
Operating Current: less than 40 mA
Laser Shape: Dot
Working temperature: -10 °C ~+40 °C
Housing: Copper
Dimensions: 6.5 x 18 mm
