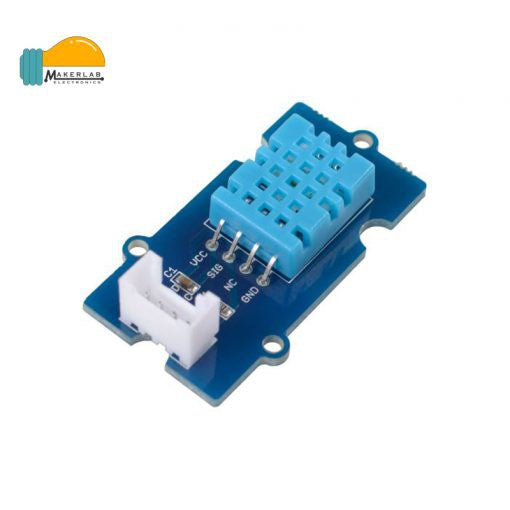

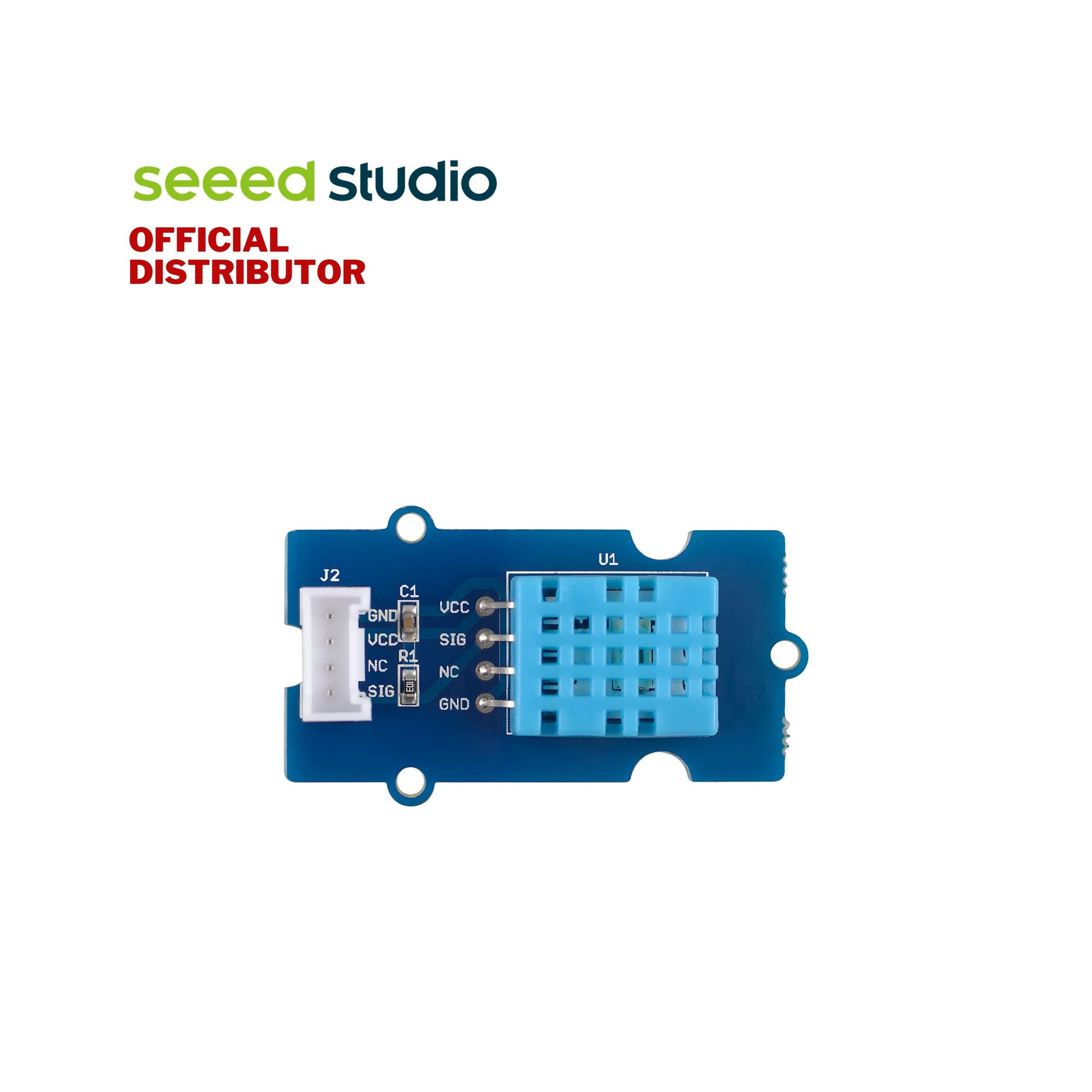

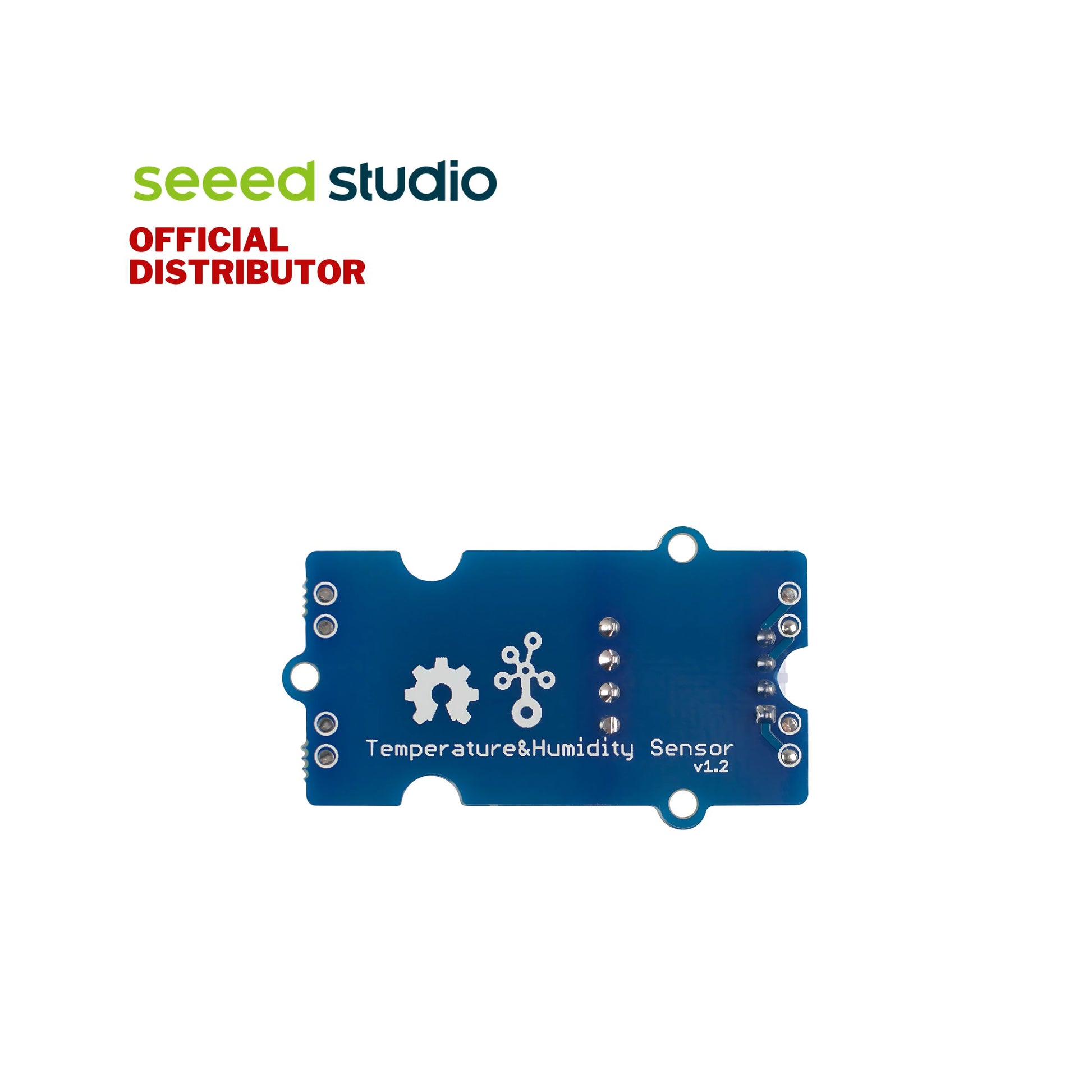

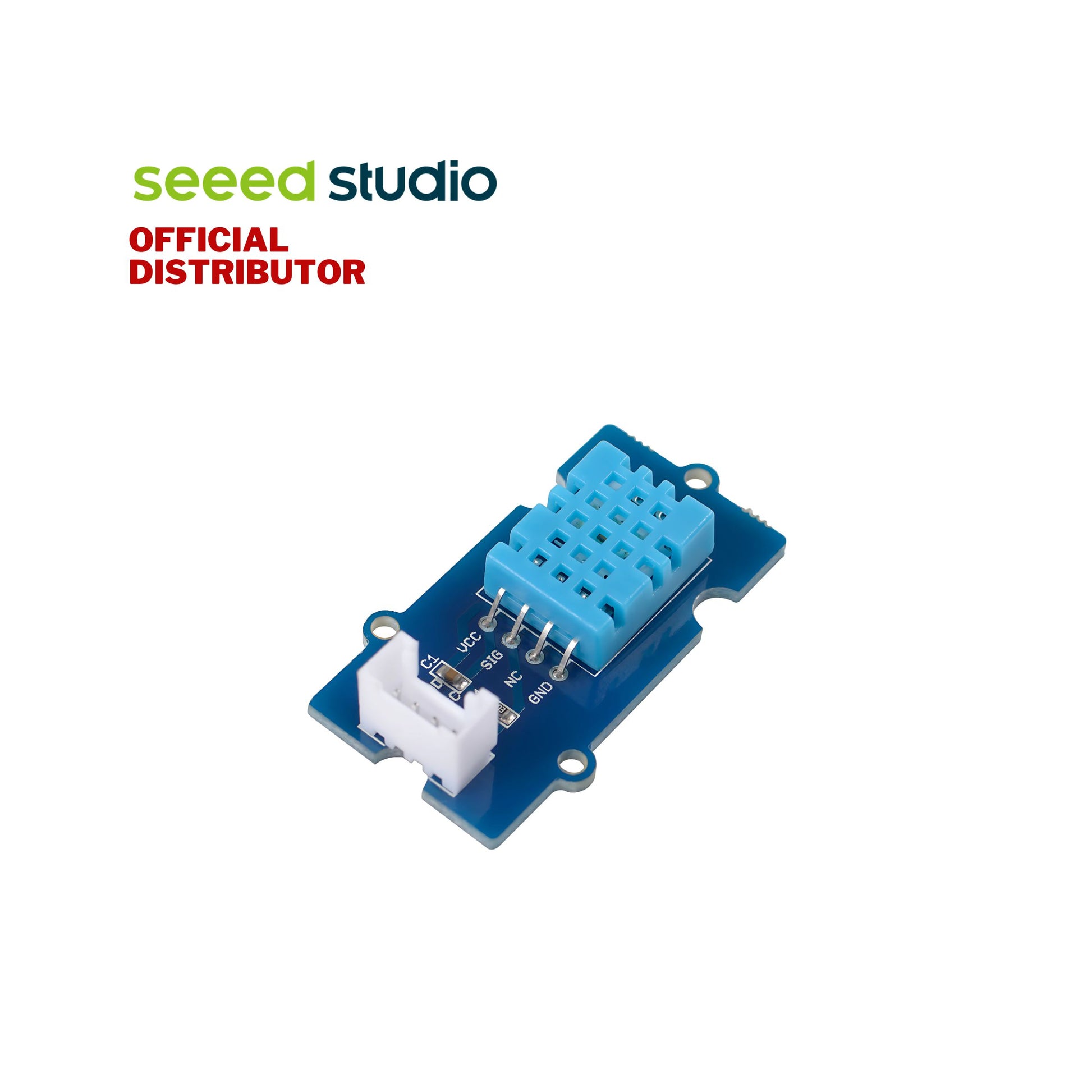

Grove - Temperature & Humidity Sensor (DHT11) | 101020011

Grove – Temperature & Humidity Sensor is a high quality, low-cost digital temperature and humidity sensor based on the new DHT11 module.
DHT11 is the most common temperature and humidity module for Arduino and Raspberry Pi. It is widely favored by hardware enthusiasts for its many advantages. E.g. Low power consumption and excellent long-term stability. Relatively high measurement accuracy can be obtained at a very low cost. The single-bus digital signal is output through the built-in ADC, which saves the I/O resources of the control board.

Features
•Full range temperature compensation Calibrated
•Single bus digital output
•High precision capacitive humidity sensor
•Long transmission distance and excellent long-term stability
•Low power consumption
•Cost-effective

Applications
•Weather station
•Automatic control
•Testing and inspection equipment

Technical details
•Dimensions : 40mm x20mm x8mm
•Weight : G.W 10g
•Battery : Exclude
•Input Voltage : 3.3V & 5V
•Measuring Current : 1.3 – 2.1 mA
•Measuring Humidity Range : 5% – 95% RH
•Measuring Temperature Range : -20 – 60 ?

Part List
•Grove – Temperature & Humidity Sensor

Documents
•Temperature&Humidity Sensor eagle file
•Temperature&Humidity Sensor Library
•CDC File
