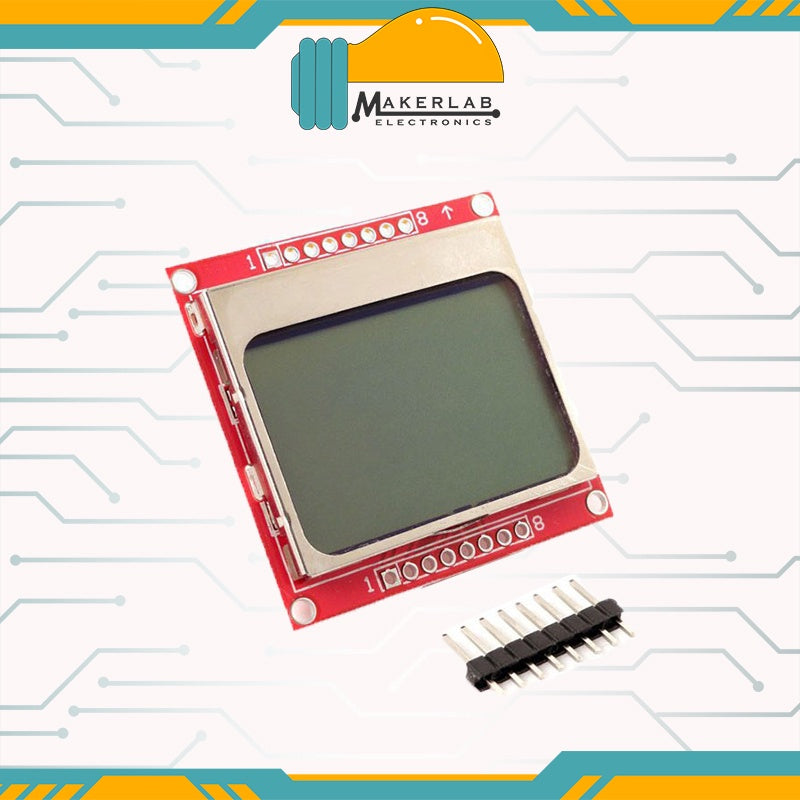

Graphic LCD 84x48 Nokia 5110

This Graphic LCD 84x48 Nokia 5110 is a basic graphic LCD screen for lots of applications. This one is mounted on an easy to solder PCB. The PCD8544 is a low power CMOS LCD controller/driver and designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption.

Specification:

• Power Supply Voltage 2.7V - 3.3V
• Resolution: 84 x 48 pixels
• PCD8544 Graphical LCD
• Dimension: 43mm x 43mm x 5mm

Documents:

• Tutorial
